Part name How to do Descriptive Picture
Ice-Maker

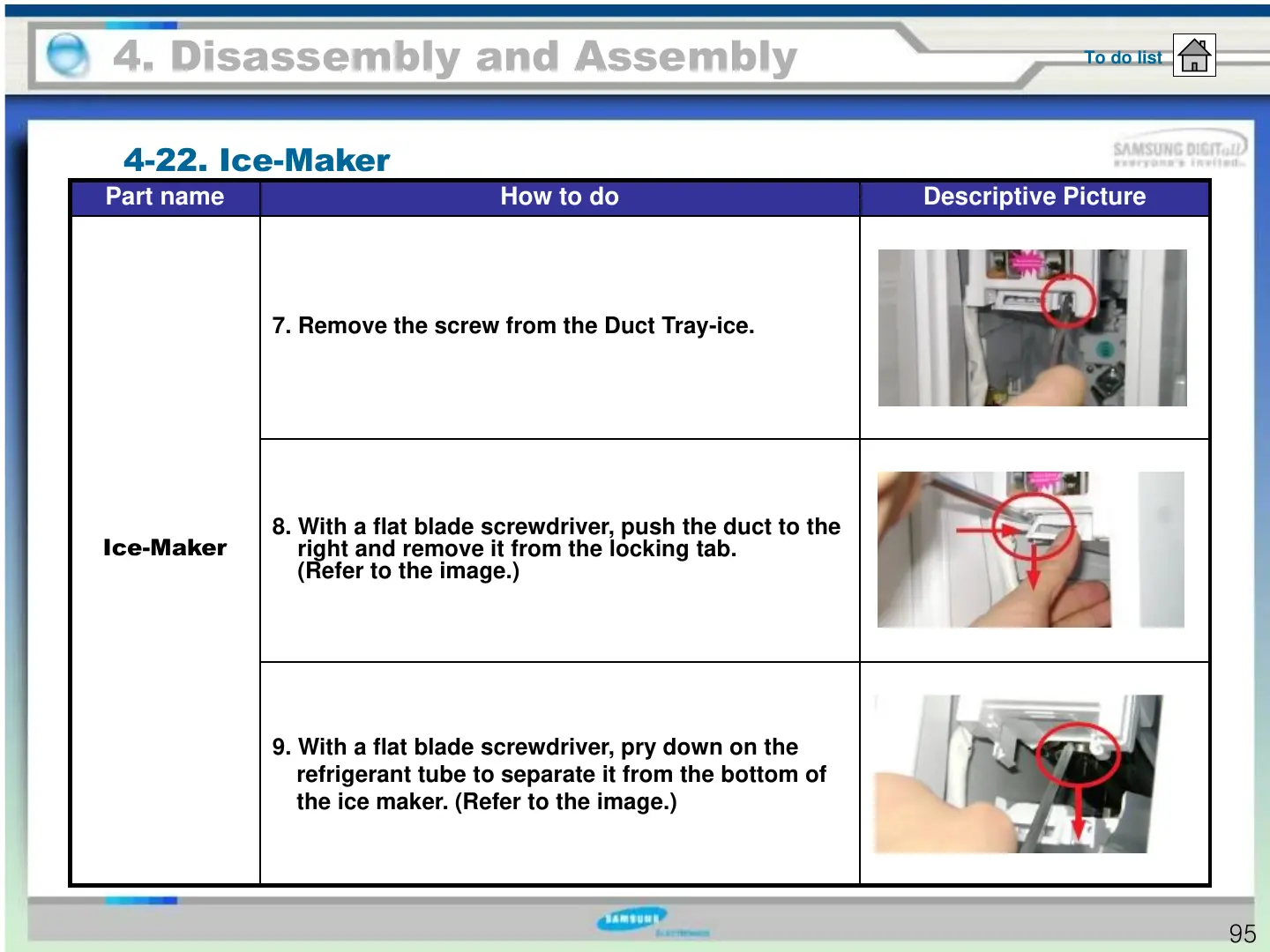

7. Remove the screw from the Duct Tray-ice.
8. With a flat blade screwdriver, push the duct to the
right and remove it from the locking tab.
(Refer to the image.)
9. With a flat blade screwdriver, pry down on the
refrigerant tube to separate it from the bottom of
the ice maker. (Refer to the image.)
4. Disassembly and Assembly
4-22. Ice-Maker
To do list
95
