OfficeServ 7400 INSTALLATION
TECHNICAL MANUAL PART 5 MAY 2010
5.15

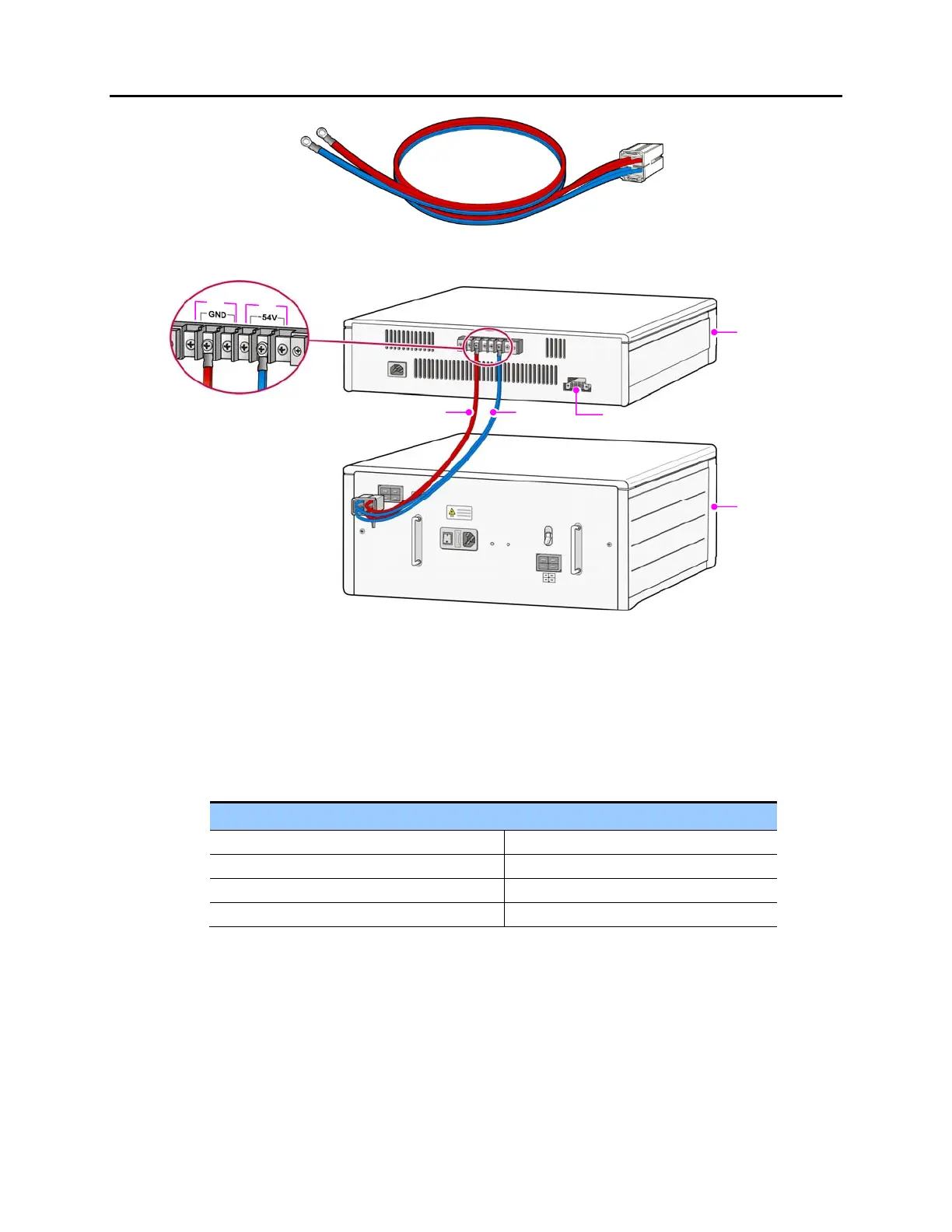

Figure 5.13 PoE Cable
Figure 5.14 Connecting OS7150 to OS7400
SPECIFICATIONS OF OFFICESERV 7150
Specifications of Cabinet
Table 5.2 Input Voltage and Frequency
Input Voltage & Frequency
Rated AC Input Voltage Single phase AC 110/220VAC
Range of Allowable AC Input Voltage 88VAC~264VAC
Rated AC Input Frequency 50/60Hz
Range of Allowable AC Input Frequency 47Hz~63Hz
Socket for External Batter
y
A
B
Red Line
Blue Line
OfficeServ
7400
