OfficeServ 7400 INSTALLATION
TECHNICAL MANUAL PART 5 MAY 2010
5.10
2) Attach the rack mount brackets to both sides of the rack, and tighten with six screws.

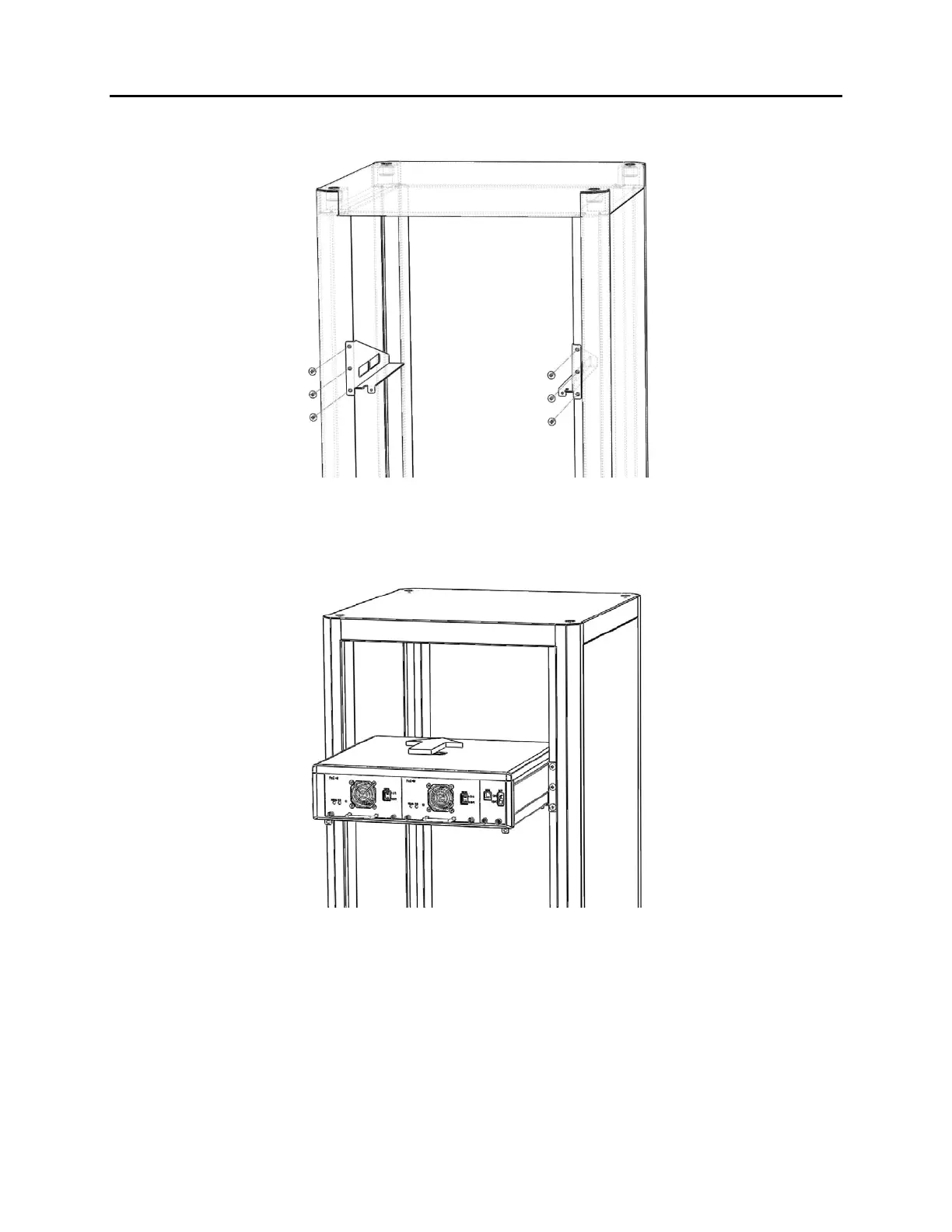

Figure 5.7 Installation in a Rack (2)
3) Guide the OS7150 unit through the guide rails formed by the rack mount brackets.
Figure 5.8 Installation in a Rack (3)
