Samsung OfficeServ 7400 - Figure 4.2 Connecting an External

OfficeServ 7400 INSTALLATION
TECHNICAL MANUAL PART 4 MAY 2010
4.3
Connect Battery only to the BATTERY Connector socket on the back panel of the OS7400.
DO NOT CONNECT BATTERY TO THE PoE INPUT CONNECTOR.

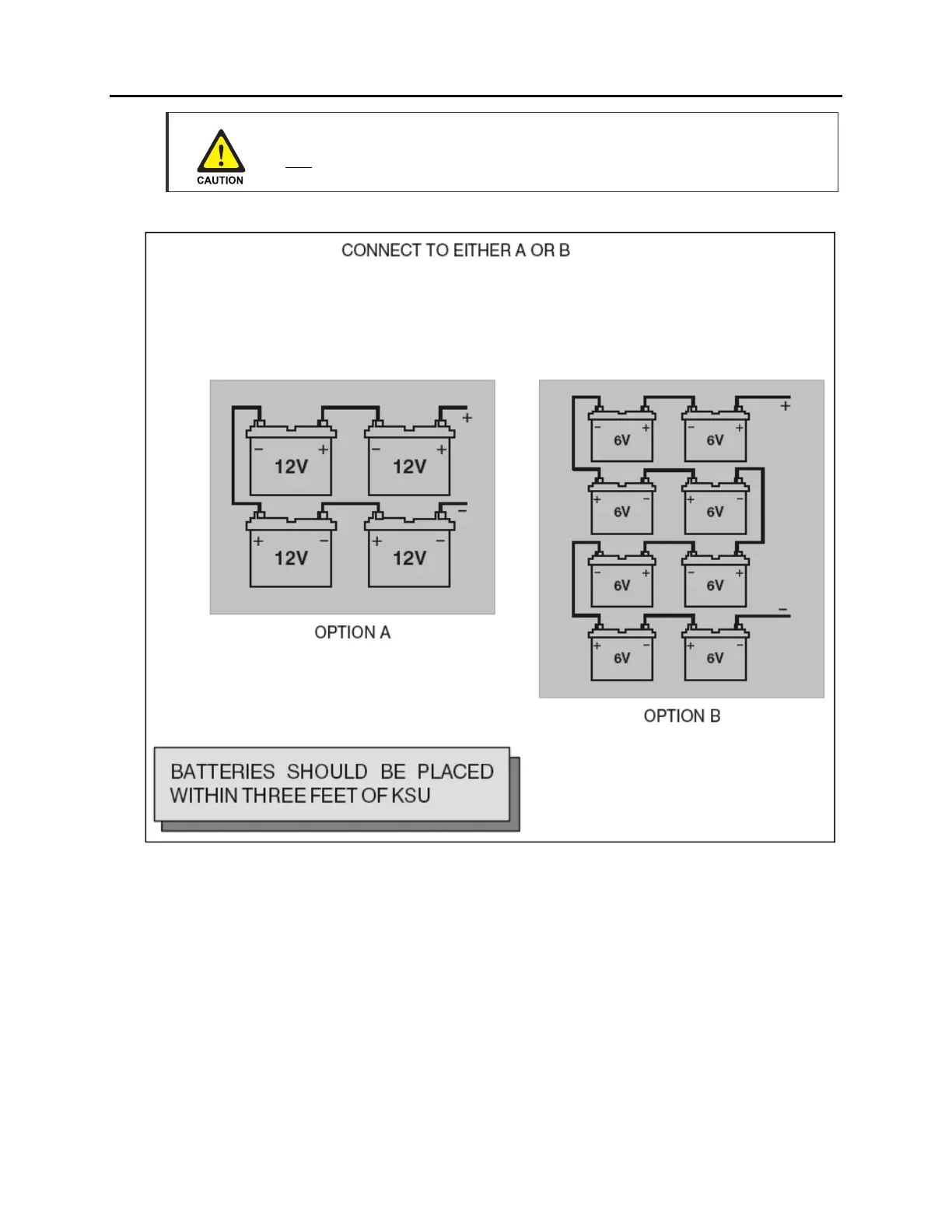

Figure 4.2 Connecting an External Battery (2)
