OfficeServ 7400 INSTALLATION
TECHNICAL MANUAL PART 3 MAY 2010
3.3

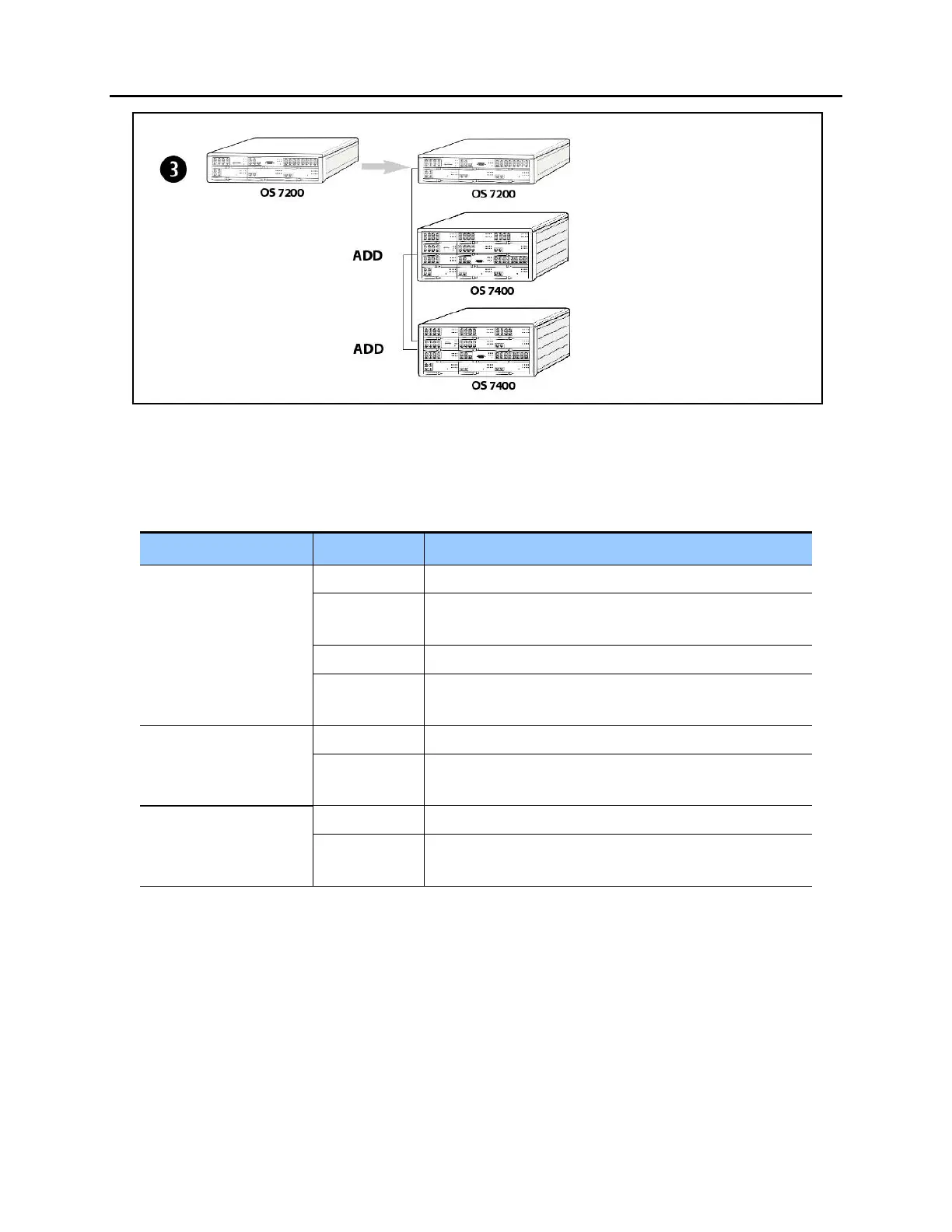

Figure 3.2 Possible Combination of OS7200 and OS7400
The following table outlines the rules for card/slot compatibility and configuration:
Table 3.1 Cards/Slot Compatibility Rules
Chassis Slot Mountable Module
MAIN CABINET Slot 0 LP40 ONLY
Slot 1, 2
(universal)
All cards are allowed EXCEPT LP40, MP40, OS7200
MCP/MP20/LCP, WIM
Slot 3 MP40 ONLY
Slot 4~11
(universal)
All cards are allowed EXCEPT LP40, MP40, OS7200
MCP/MP20/LCP, WIM
EXPANSION CABINET
(OS7400 cabinet)
Slot 0 LP40 ONLY
Slot 1~11
(universal)
All cards are allowed EXCEPT LP40, MP40, OS7200
MCP/MP20/LCP, WIM
EXPANSION CABINET
(OS7200 cabinet)
Slot 0 OS7200 LCP ONLY
Slot 1~5
(universal)
All cards are allowed EXCEPT OS7200 MCP/MP20, MP40,
LP40, WIM, GWIM/GWIMT, GPLIM, GSIM, *TEPRI2, *MGI64
