OfficeServ 7400 INSTALLATION
TECHNICAL MANUAL PART 2 MAY 2010
2.2
2.3.2 Required Tools
 A mid-sized Phillips screwdriver
 A bracket and three screws for attaching cabinet to rack mount
 Two brackets and six screws for rack mount
 Two screws for fastening

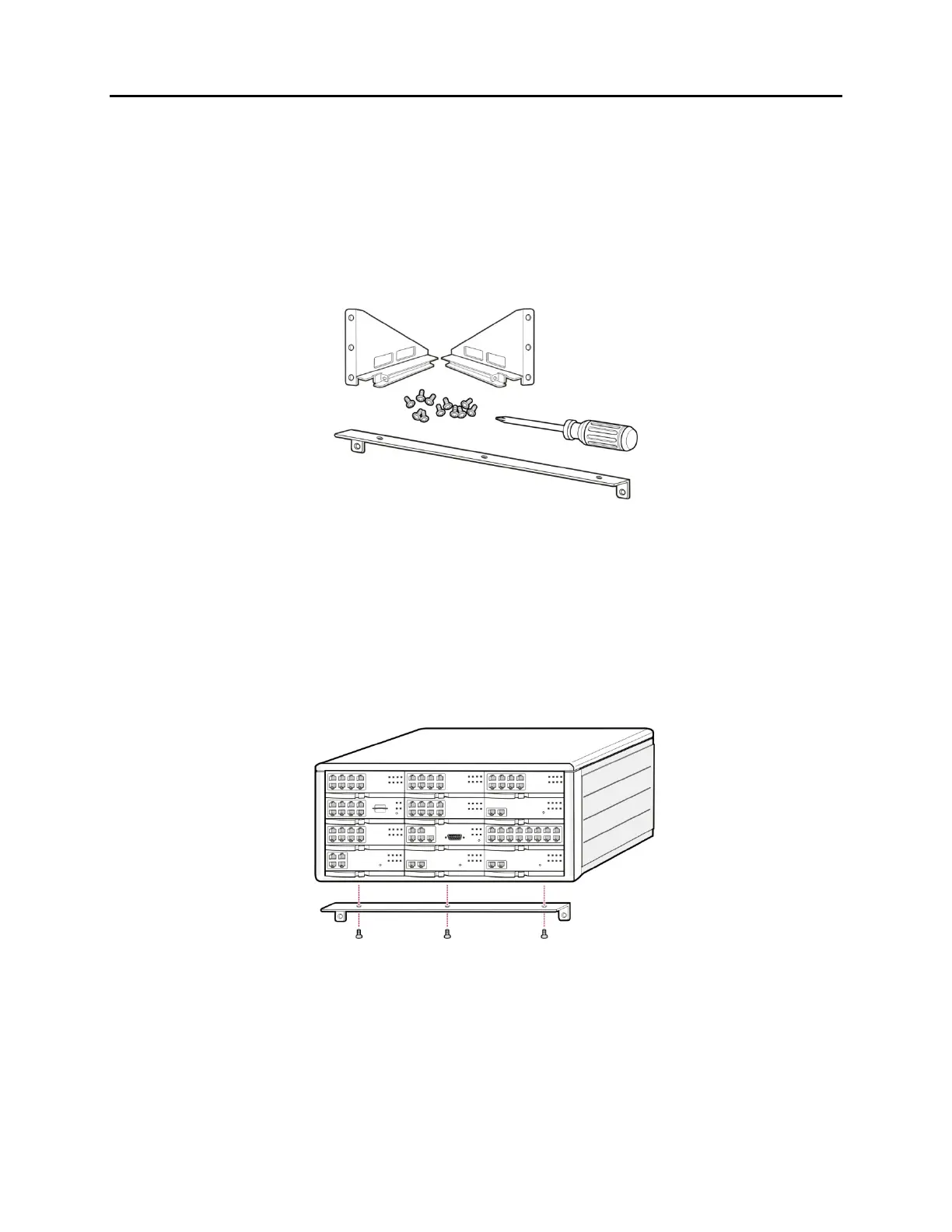

Figure 2.1 Tools Required for Rack Installation
2.3.3 Installing in a Rack
The procedure for installing the OfficeServ 7400 cabinet inside a 19-inch rack is as follows:
1) Attach the cabinet bracket to the bottom surface of the OfficeServ 7400 cabinet and
fasten the bracket firmly with the three screws.
Figure 2.2 Rack Installation (1)
