Samsung OfficeServ 7400 - Table 3.10 Ports and Leds of the 16 TRK; Table 3.11 Ports of the 16 DLI2

OfficeServ 7400 INSTALLATION
TECHNICAL MANUAL PART 3 MAY 2010
3.27
The components on the front panel of the 16TRK have the functions below:
Table 3.10 Ports and LEDs of the 16TRK
Ports & LEDs Function Description
P1~P16 Trunk ports.
LED There are no LEDs on this card.
3.3.7 16DLI2
This board provides 16 ports for connecting Samsung Digital Keysets. Each port provides 1B+D.
This means only one station/one voice channel per port. This board can go into any universal
slot of any cabinet. Add as many as needed.
FRONT VIEW OF 16DLI2

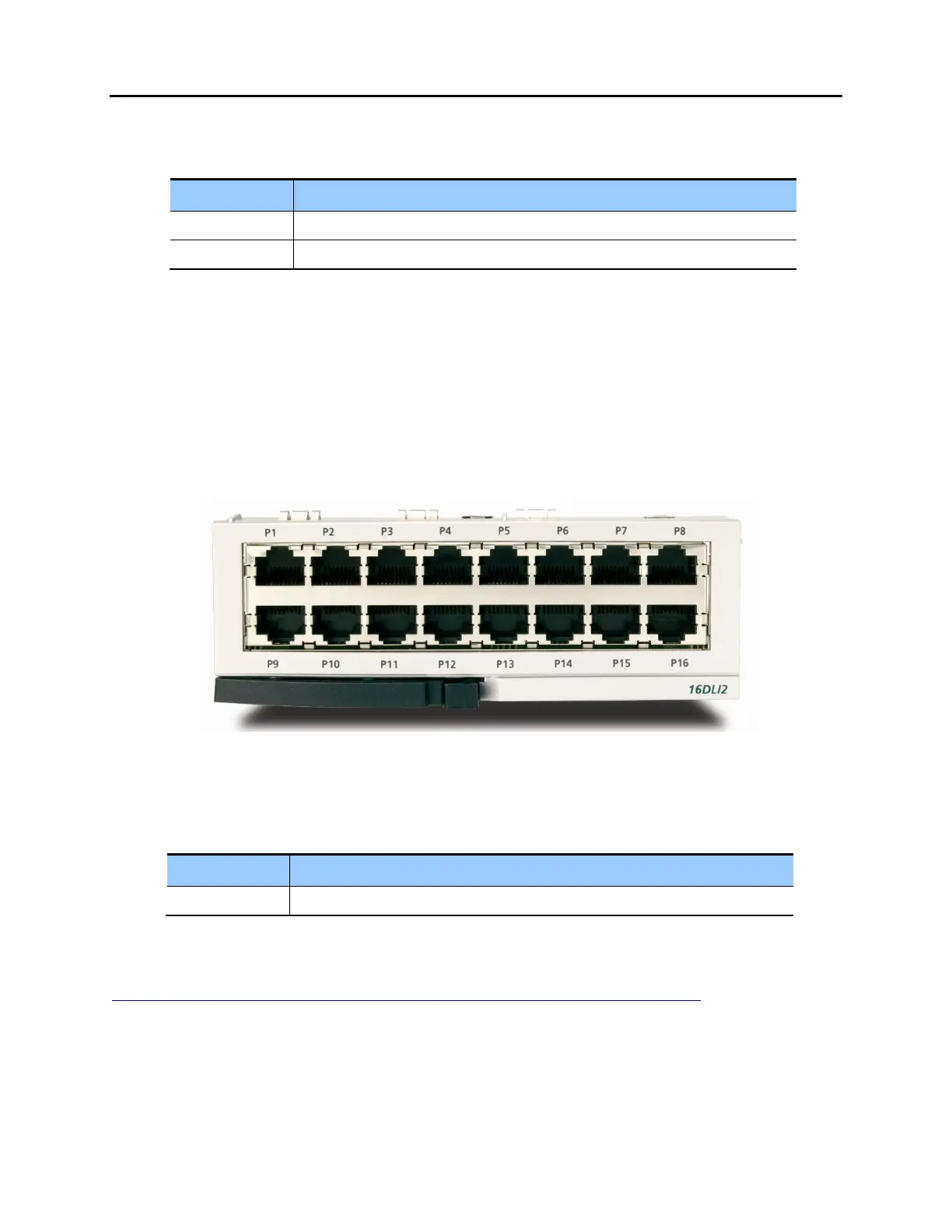

The front view of the 16DLI2 board is shown in the picture below.
Figure 3.25 Front View of the 16DLI2
16DLI2 front panel components:
Table 3.11 Ports of the 16DLI2
Ports Function Description
P1~P16 Samsung Digital Telephone Extension Port
NOTE: A station using KDB-D or KDB-S cannot connect to a port on this board.
Refer to Section 7.1.3 (Connecting a Digital Phone) for Port Pinout and Wiring.
