Samsung OfficeServ 7400 - Table 3.15 Ports and Leds of the GWIM;GWIMT

OfficeServ 7400 INSTALLATION
TECHNICAL MANUAL PART 3 MAY 2010
3.34

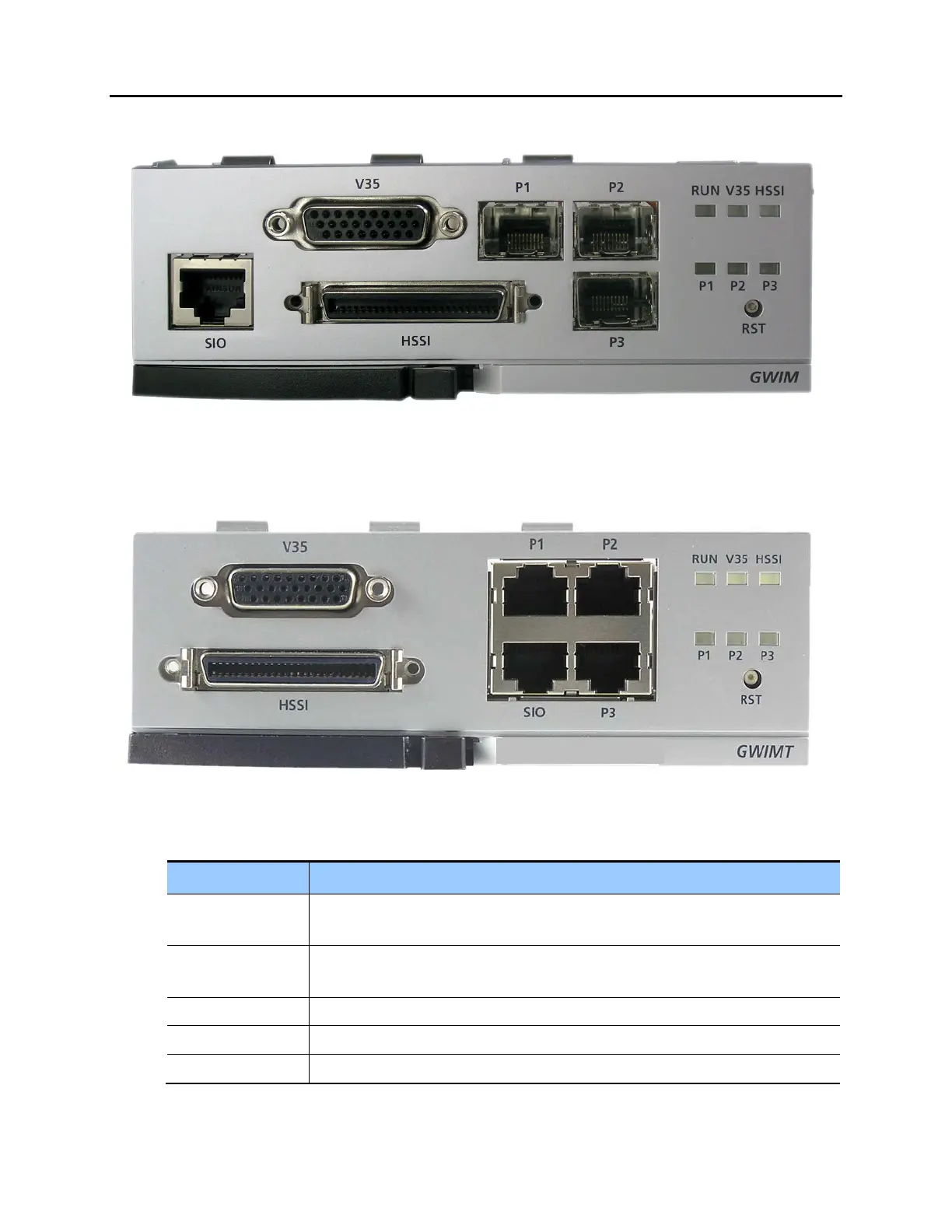

FRONT VIEW OF GWIM
Figure 3.35a Front Panel View of the GWIM
FRONT VIEW OF GWIMT
Figure 3.35b Front Panel View of the GWIMT
Table 3.15 Ports and LEDs of the GWIM/GWIMT
Ports & LEDs Function Description
P1~P3
GWIM
Ports for connecting to 1000 Base-SX/LX/TX GbE (Gigabit Ethernet) Requires SFP
connector
P1~P3
GWIMT
Ports for connecting to 10/100/1000 Base-TX GbE (Gigabit Ethernet)
Requires SFP connector
V35 Ports for connecting to T1/E1 links
HSSI Ports for connecting to T3/E3 links
SIO Ports for connecting RS-232
