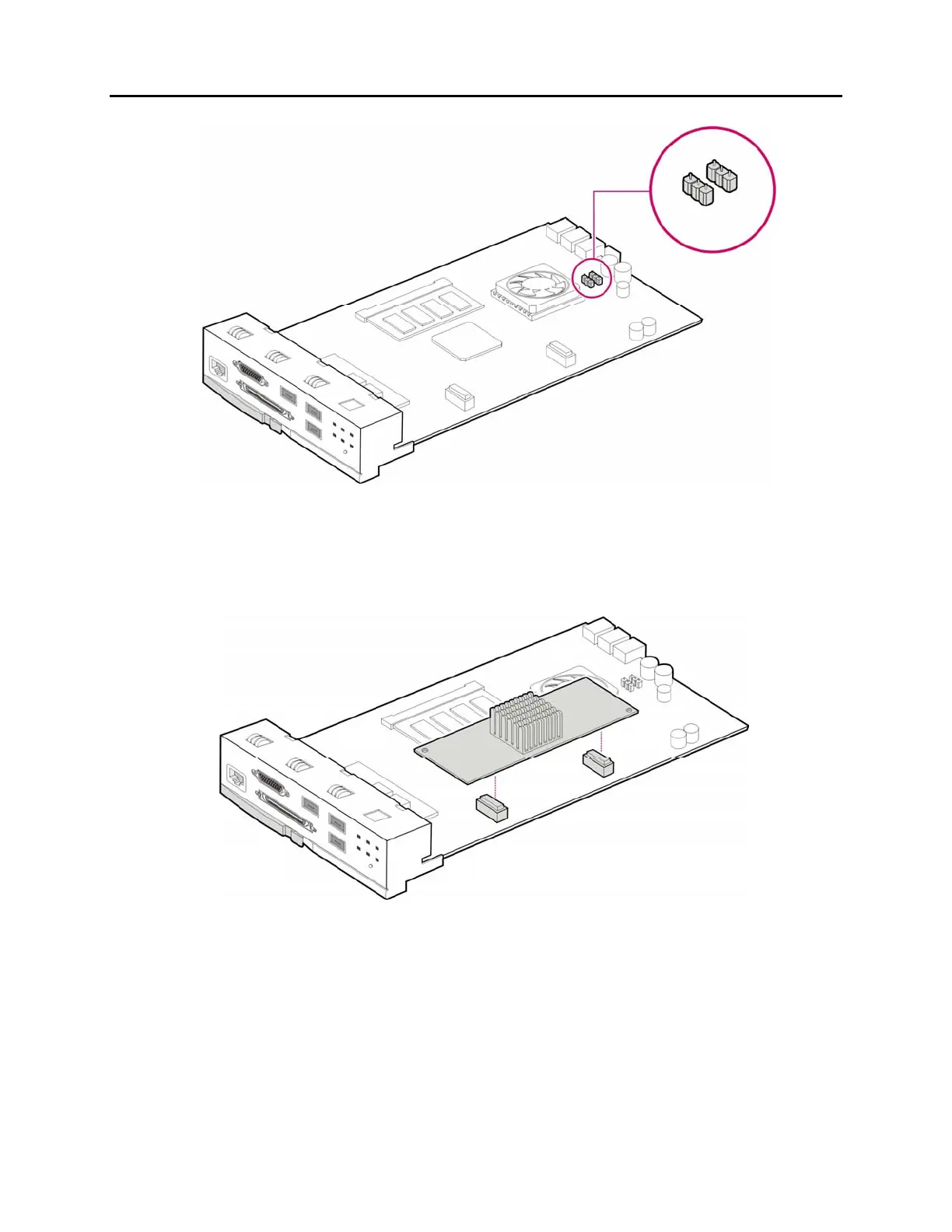

Figure 3.33 Setting GWIM/GWIMT Jumpers
2) Align the connector of the optional security daughtercard (GWIMS) to that of the
GWIM/GWIMT connector and firmly press the optional module downward.
Figure 3.34 Mounting an Optional Securing Daughtercard on the GWIM/GWIMT
GWIMS
