Samsung OfficeServ 7400 - Figure 5.6 Installation in a

OfficeServ 7400 INSTALLATION
TECHNICAL MANUAL PART 5 MAY 2010
5.9

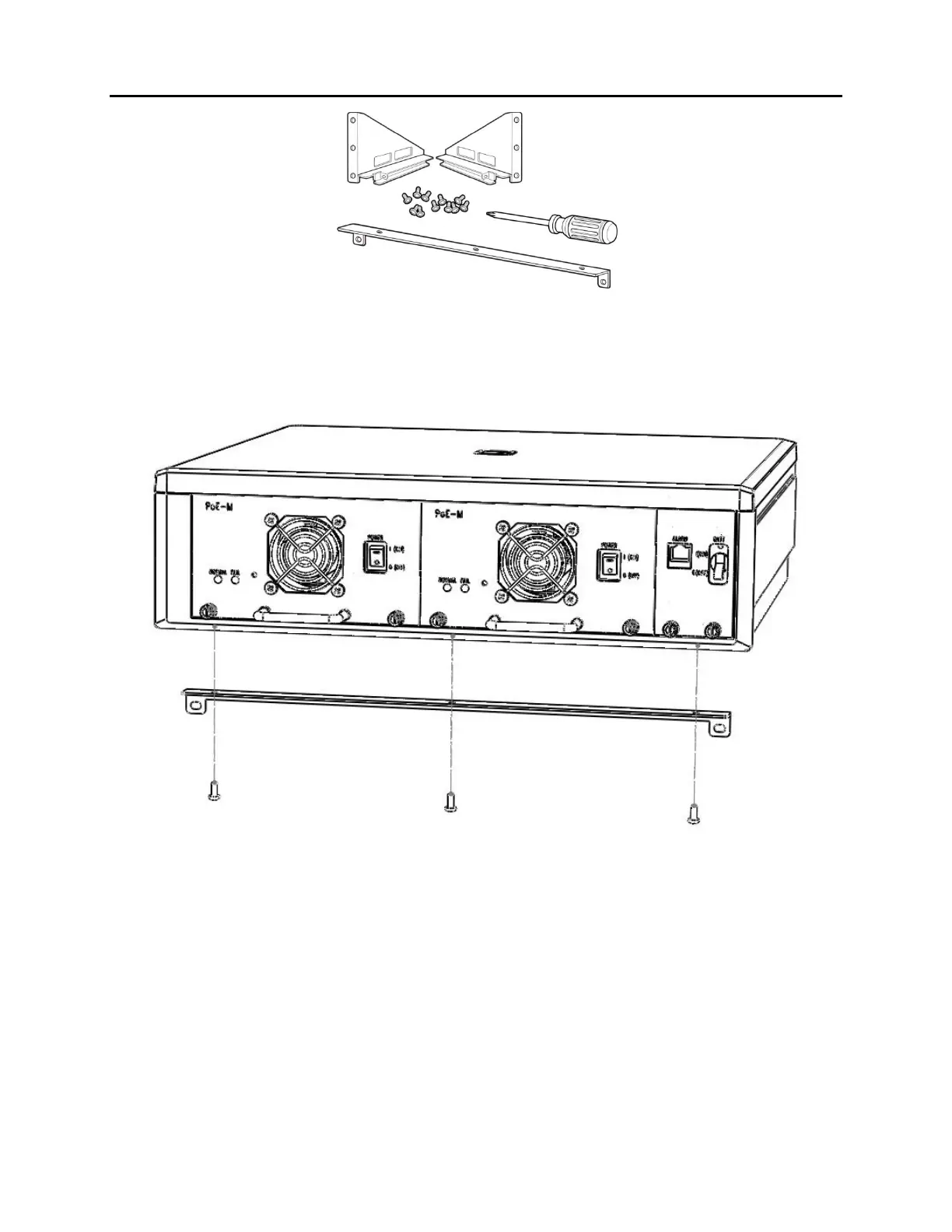

Figure 5.5 Tools Needed for Installation in a Rack
1) Attach the cross bar bracket to the bottom of OfficeServ 7150 PoE, and tighten with three
screws.
Figure 5.6 Installation in a Rack (1)
