Samsung OfficeServ 7400 - Figure 2.3 Rack Installation; Figure 2.4 Rack Installation

OfficeServ 7400 INSTALLATION
TECHNICAL MANUAL PART 2 MAY 2010
2.3
2) Attach the rack brackets to both sides of the rack and fasten the brackets firmly with the
six screws.

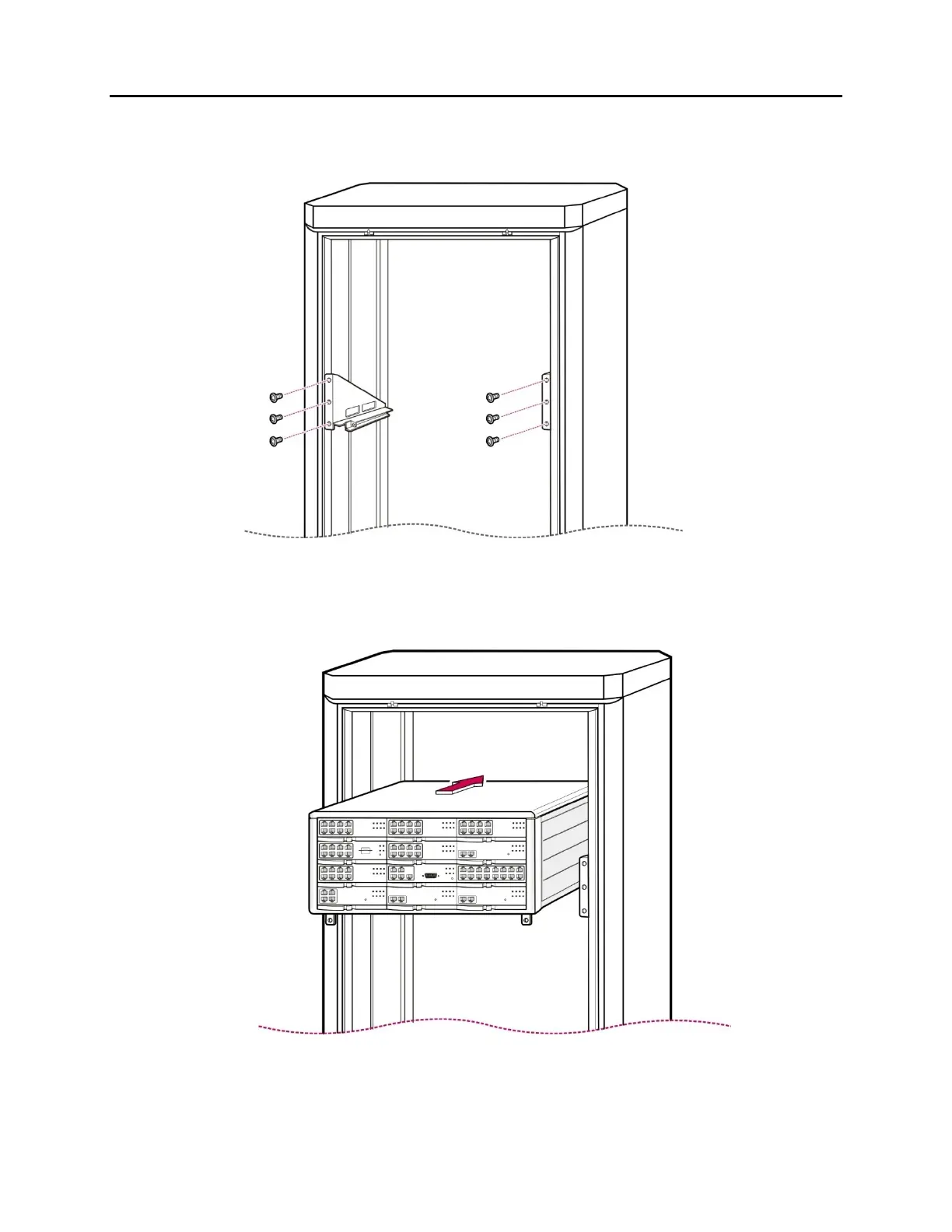

Figure 2.3 Rack Installation (2)
3) Align the cabinet to the guide rails of the rack and slide the cabinet into the rack.
Figure 2.4 Rack Installation (3)
