Samsung OfficeServ 7400 - Page 135

OfficeServ 7400 INSTALLATION
TECHNICAL MANUAL PART 7 MAY 2010
7.31
PC
Network
Handset
Headphones
Power

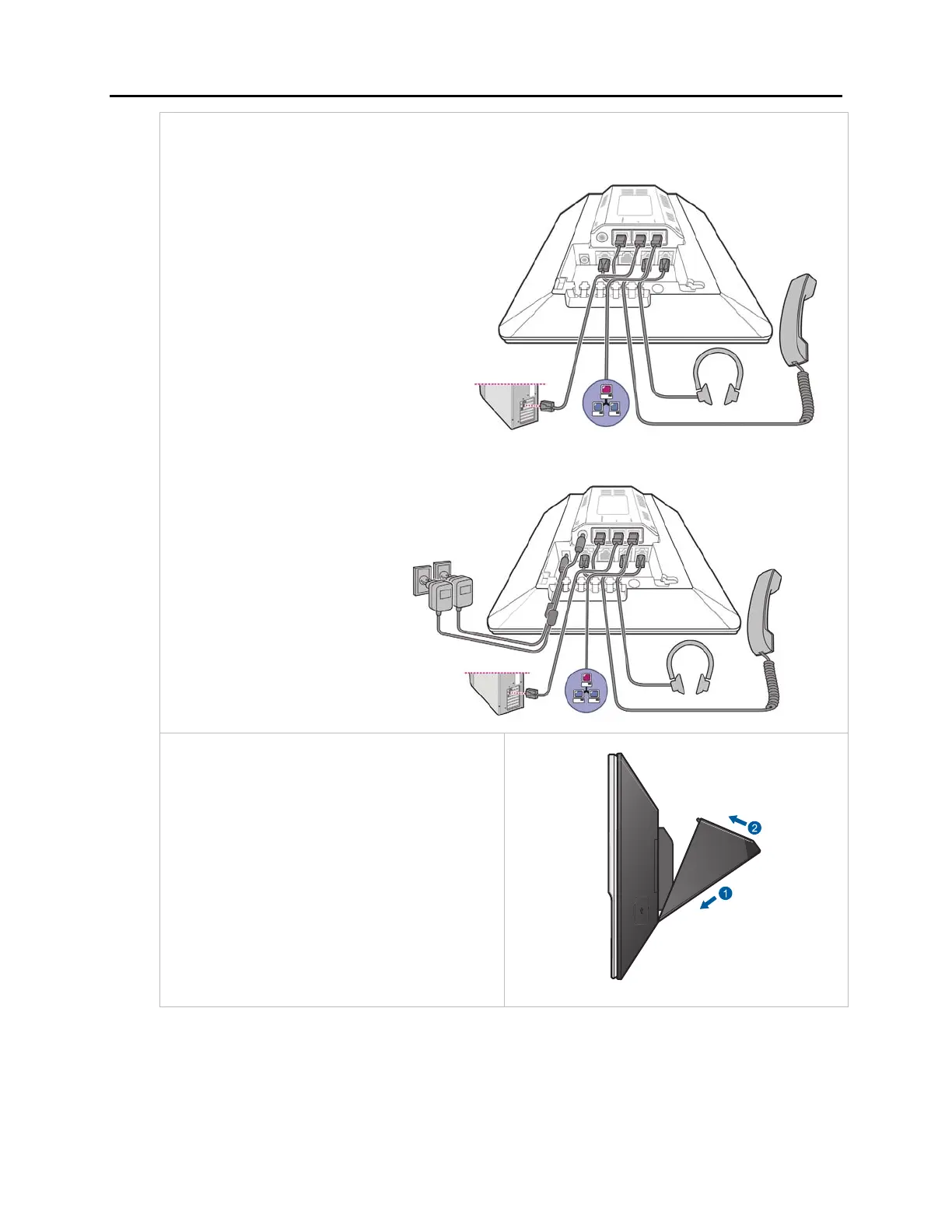

3. Connect the cable.
When PoE is supplied via the LAN:
When PoE is not supplied via the LAN:
4. Attach the cradle to the back of the
phone.
PC
Network
(PoE Switch)
Handset
Headphones
