IENGLISHI

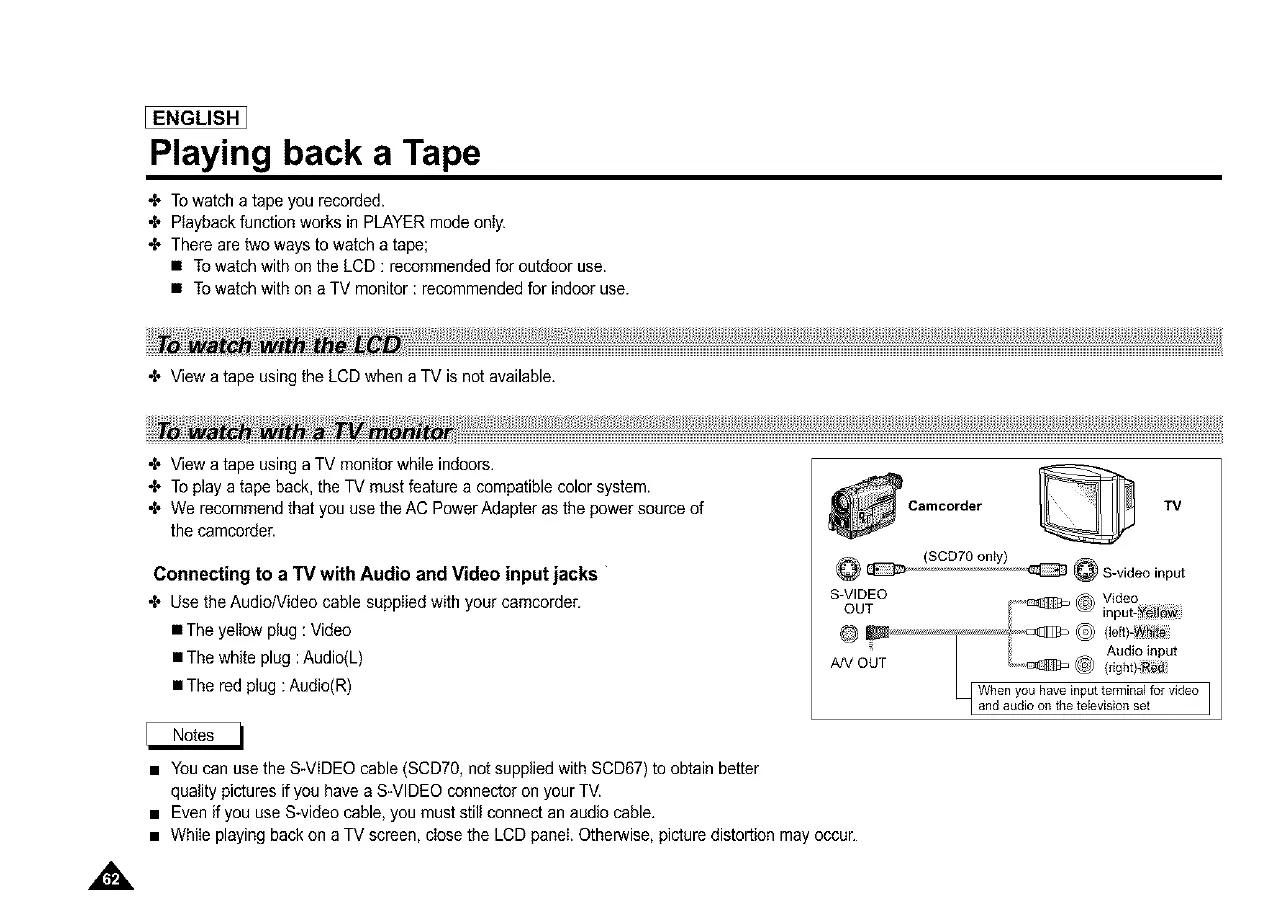

Playing back a Tape
4- To watch a tape you recorded.
4- Playbackfunction woi_s in PLAYER mode only.
4- There are two ways to watch a tape;
• To watch with on the LCD : recommendedfor outdoor use.
• To watch with on a TV monitor : recommendedfor indoor use.
4- View a tape using the LCD when a TV is not available.
4- View a tape using a TV monitor while indoors.
4- To play a tape back, the TV must feature a compatible color system.
4- We recommend that you use the AC PowerAdapter as the powersource of
the camcorder.
Connecting to a TV with Audio and Video input jacks
4- Use the AudioNideo cable supplied with your camcorder.
• The yellow plug : Video
• The white plug :Audio(L)
• The red plug :Audio(R)
Camcorder TV
(SCD70 on_y) _ @ S-video input
S-VIDEO _,,,_ ¢Y,%Video
OUT [ _ input-Ye/i_
Audio input
AN OUT / t_ @ (dght)_
_ IWhenyou have input terminal for video
• You can use the S-VIDEO cable (SCD70, not supplied with SOD67) to obtain better
quality pictures ifyou have a S-VIDEO connector onyour TV.
• Even if you use Swideo cable, you must still connect an audio cable.
• While playing back on a TV screen, close the LCD panel. Otherwise, picture distortion may occur.
