SANY SY16C - Operator Controls

Machine Controls SY16C Excavator OMM
3-4 Operation and Maintenance Manual — 0420 SANY
OPERATOR CONTROLS

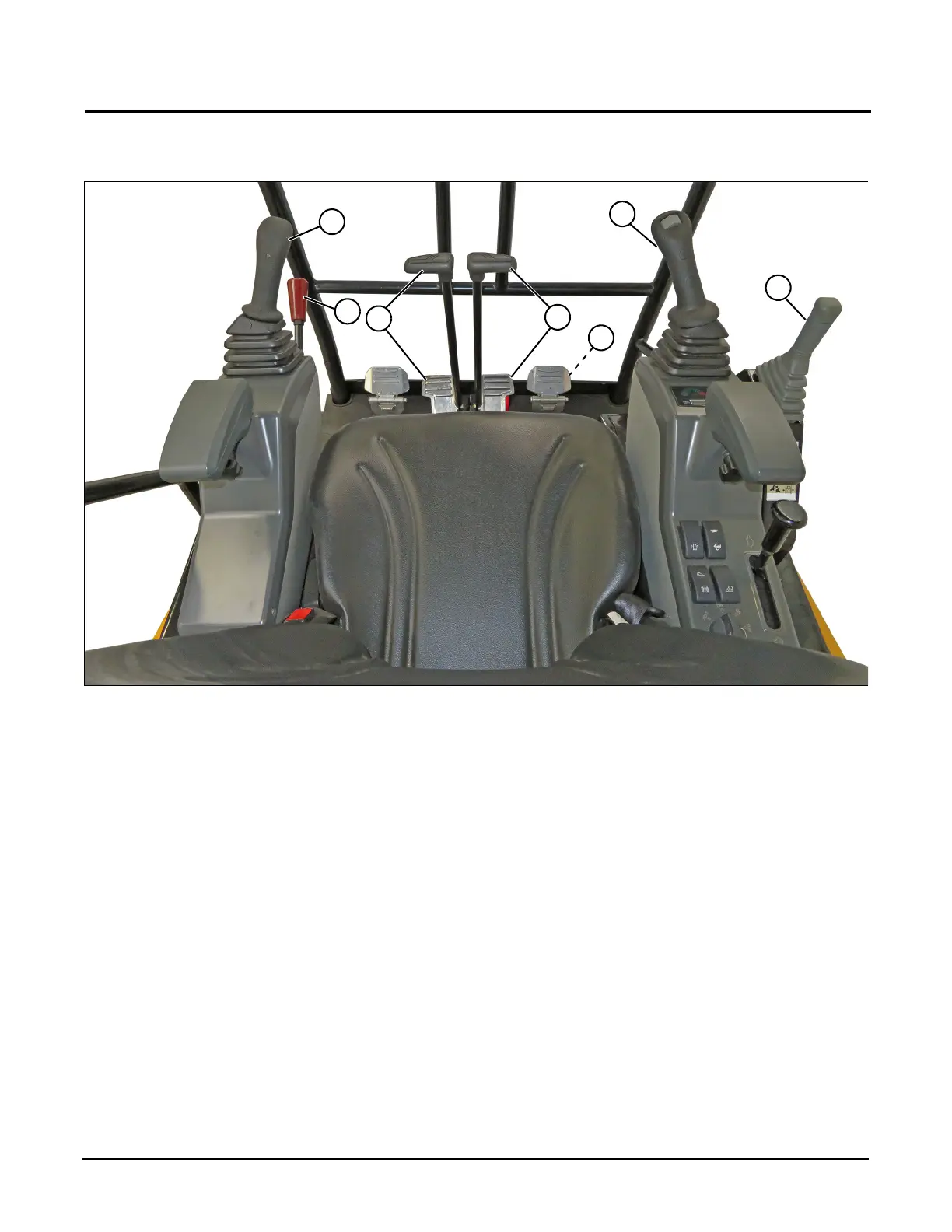

1. Left joystick (page 3-6) 2. Hydraulic lockout control lever (page 3-5)
3. Left travel control lever/pedal (page 3-10) 4. Right travel control lever/pedal (page 3-10)
5. Boom swing control pedal (page 3-11) 6. Right joystick (page 3-6)
7. Dozer blade/track spread control lever (page 3-12)
Fig. 3-2
0004986
1
2
7
5
3
4
6
