1. Prepare the machine for service. See “Maintenance
Safety” on page 2-9
2. Open the engine hood.
3. Route the drain hose (2) into a suitable container. Open
the drain valve (1) and drain the water and sediment.
4. When only clean fuel flows through the drain valve,
close and hand-tighten the valve.
5. Start the engine and check for leaks.
Hydraulic Oil Level Check
1. Position the work equipment as shown on the hydraulic tank decal.
2. Park the machine for maintenance. See “Maintenance
Safety” on page 2-9.
3. The hydraulic oil level sight glass can be seen through
the opening (1) in the left side access panel.
4. Check the hydraulic oil level in the hydraulic tank
through the sight glass (2). The hydraulic oil level
should be between the high (4) and low (3) levels as
shown on the machine decal.
5. If the hydraulic oil level is below the low level, add
hydraulic oil. See “Add Hydraulic Oil” on page 5-37.

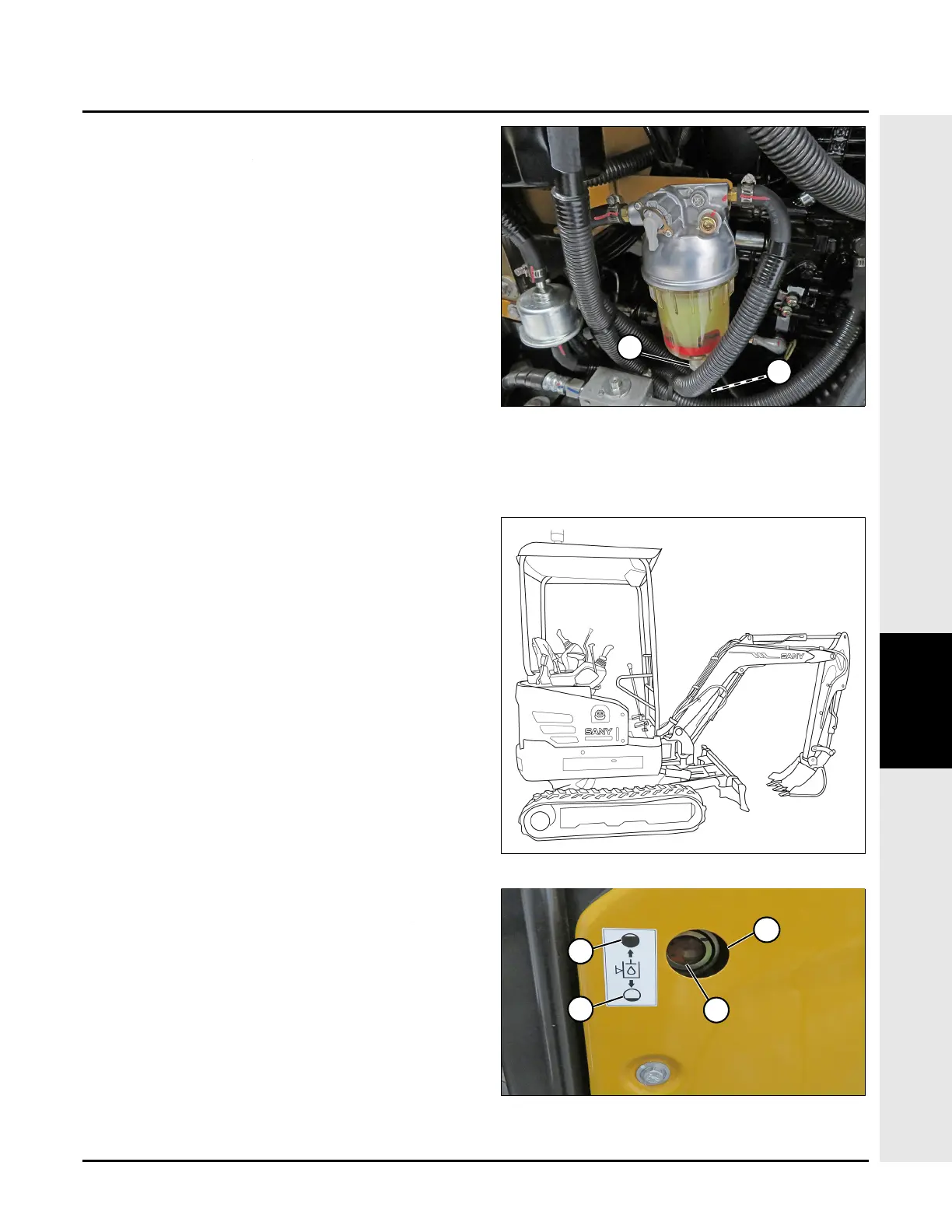

Fig. 4-6
0005080
1
2
Fig. 4-7
0005096
Fig. 4-8
0004983
2
3
1
4
