Left Access Panel
The left access panel (1) provides access to:
• Hydraulic tank
• Hydraulic tank filler cover
• Hydraulic pump
Remove/Install the Left Access Panel
1. Open the engine hood.
2. Remove two fasteners (2) from the rear of the left
access panel (1).
3. Remove one fastener (3) from the side of the left
access panel and remove the panel (1).
4. Install the left access panel in reverse order of removal.

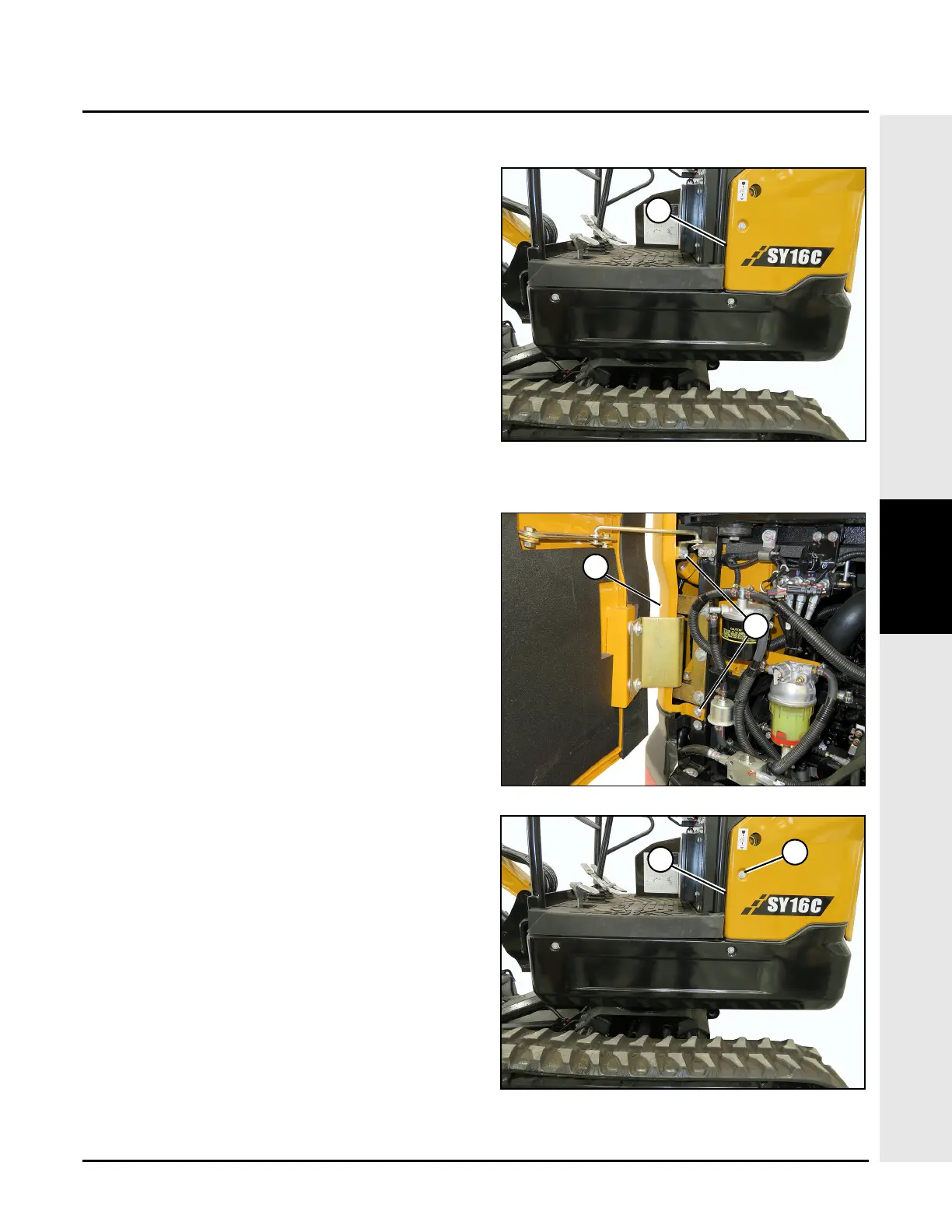

Fig. 3-38
0005170
1
Fig. 3-39
0005169
2
1
Fig. 3-40
0005170
3
1
