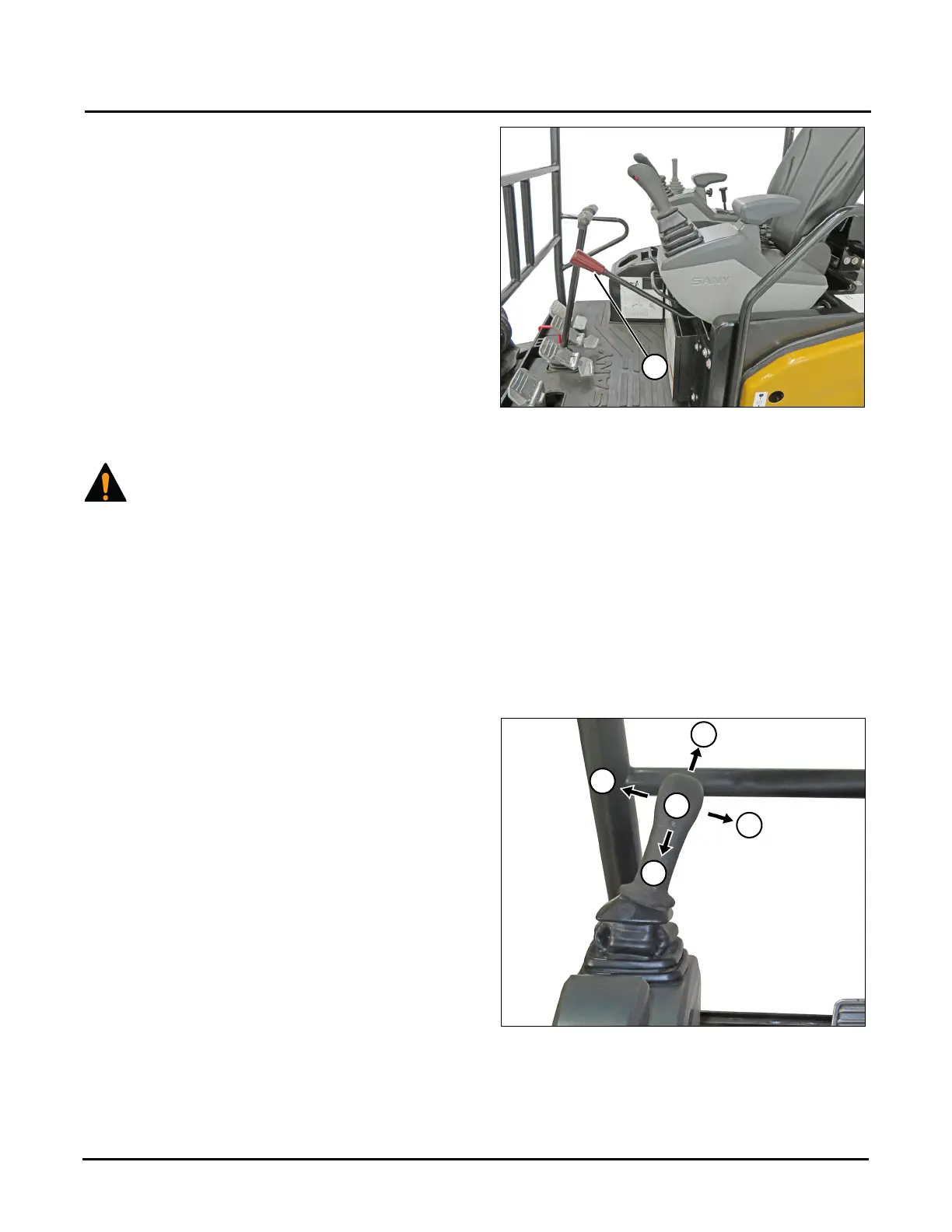

• Push the hydraulic lockout control lever to the
unlocked (open) (3) position to enable machine
operation.
Joystick Controls
NOTE: There are two operating modes available for the joystick controls, the Society of Automotive
Engineers (SAE) mode and the Backhoe Loader (BHL) mode. The swing and bucket functions are
the same for SAE and BHL modes.
Joystick SAE Mode
Left Joystick–SAE Mode
Fig. 3-5
0003156
N
1
2
3
4
The SAE mode uses the left joystick to control the arm and
upper structure:
• Swing the upper structure to the left (1)
• Arm out (2)
• Swing the upper structure to the right (3)
• Arm in (4)
• Neutral (N)
WARNING!
Prevent unexpected movement of the machine. Know the positions and functions of the
joysticks before operation. Failure to follow this warning could result in death or serious
injury.
Fig. 3-4
0005078
3
