Right Joystick–SAE Mode

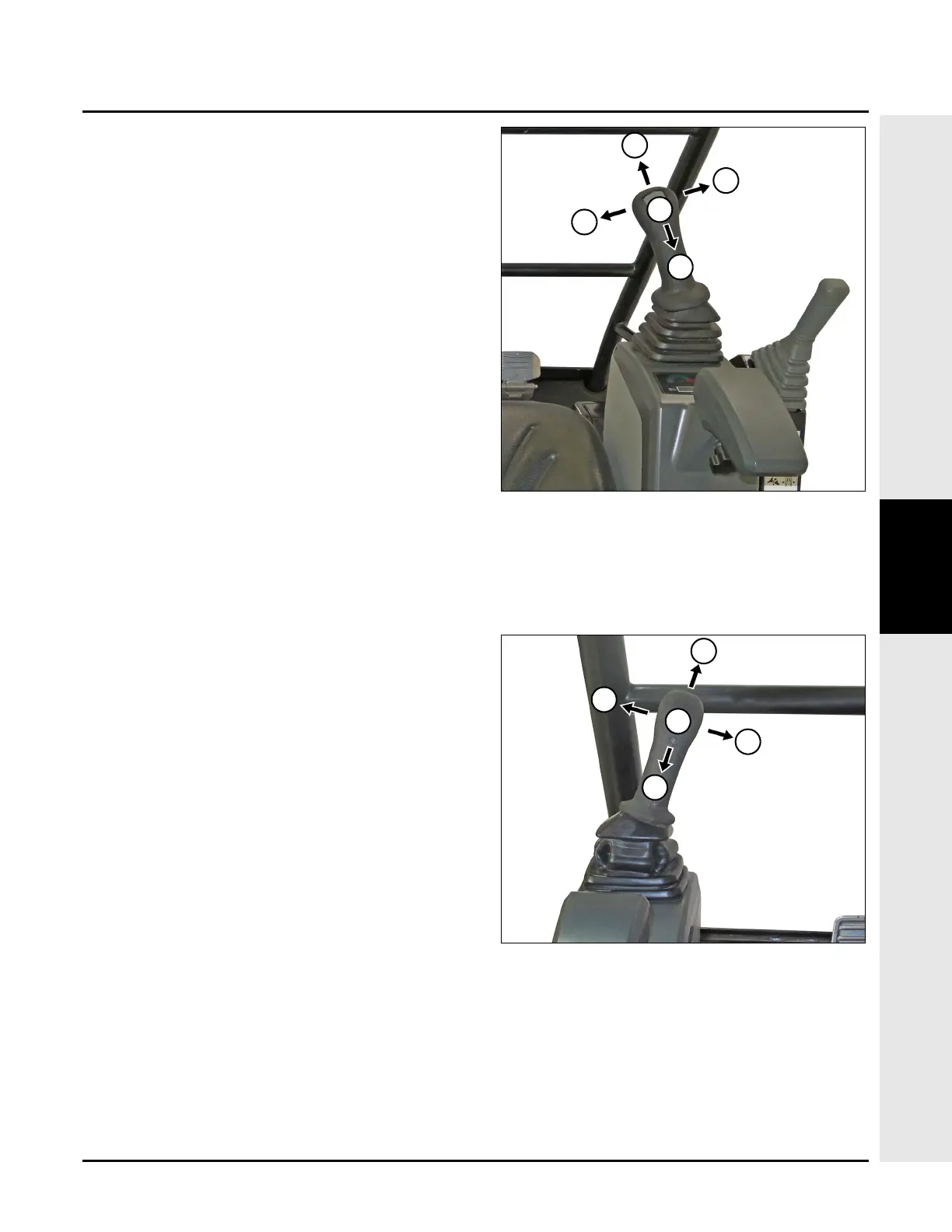

Fig. 3-6
0005112
N
1
2
3
4
The SAE mode uses the right joystick to control the boom
and bucket:
• Bucket curl (1)
• Boom down (2)
• Bucket uncurl (3)
• Boom up (4)
• Neutral (N)
NOTE: The joystick controls return to the neutral
position automatically when released, and the
functions of the machine stop.
NOTE: In longitudinal excavation, rotate the
undercarriage so the travel motors are behind
the upper structure to maximize the stability and lift capacity of the machine.
Joystick BHL Mode
Left Joystick–BHL Mode
Fig. 3-7
0003156
N
1
2
3
4
The BHL mode uses the left joystick to control the boom
and upper structure:
• Swing the upper structure to the left (1)
• Boom down (2)
• Swing the upper structure to the right (3)
• Boom up (4)
• Neutral (N)
