Dozer Blade/Track Spread Control Lever
The dozer blade/track spread control lever (1) is on the
right side of the operator seat.
This lever controls:
• Raising and lowering the dozer blade.
• Changing the track spread (gauge) from 
2 ft. 6 in. (.75 m) to 3 ft. 8 in. (1.12 m).
The dozer blade/track spread switch (3) selects the function
of the dozer blade/track spread control lever.
With the dozer blade/track spread switch in the dozer blade
position (2):
• Push the dozer blade/track spread control lever
forward to lower the dozer blade.
• Pull the dozer blade/track spread control lever back
(3) to raise the dozer blade.
With the dozer blade/track spread switch in the track
spread position (4):
• Push the dozer blade/track spread control lever
forward to increase the track spread.
• Pull the dozer blade/track spread control lever back to reduce the track spread.
NOTE: The dozer blade control lever returns to the neutral position when released.

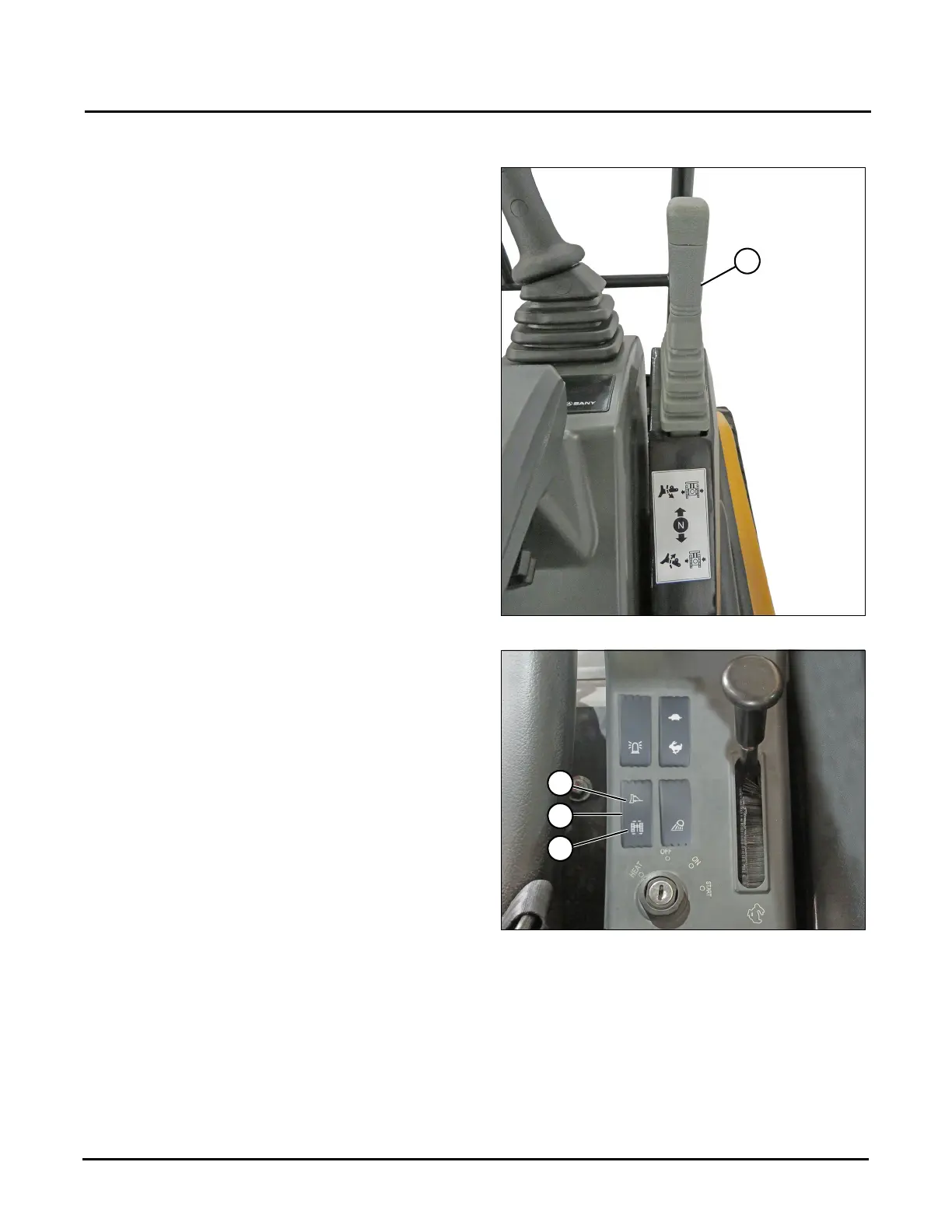

Fig. 3-15
