MOVING THE MACHINE
Directional Arrows
The directional arrow (1) on each of the track frames
indicates forward movement of the machine. Check these
arrows before using the travel control levers/pedals. The
track drive sprocket is at the rear of the track frame.
If the track frame is facing backward, the travel direction
will be opposite the maneuvering direction of the travel
control lever/pedal. The machine will move forward when
you pull the control levers backward and backward when
you push them forward. Left and right control directions are
also reversed when the track frame faces backward.
WARNING!
• Check the surroundings and sound the horn before moving the machine.
• Personnel are not allowed to approach the machine without operator approval.
• The rear of the machine is a blind area. Use the mirrors and be extremely careful when
backing the machine. Use a signalman as needed.
Failure to follow these warnings could result in death or serious injury.
NOTICE!
• The idlers are in the front of the track frame,
and the drive sprockets are at the rear of the
track frame for forward movement. If the
drive sprockets are at the front of the
machine, the travel controls will operate in
reverse. Check the position of the drive
sprockets before traveling.
• Stop the machine for 5 minutes after every 20
minutes of traveling. Prolonged traveling
may strain the travel motors.

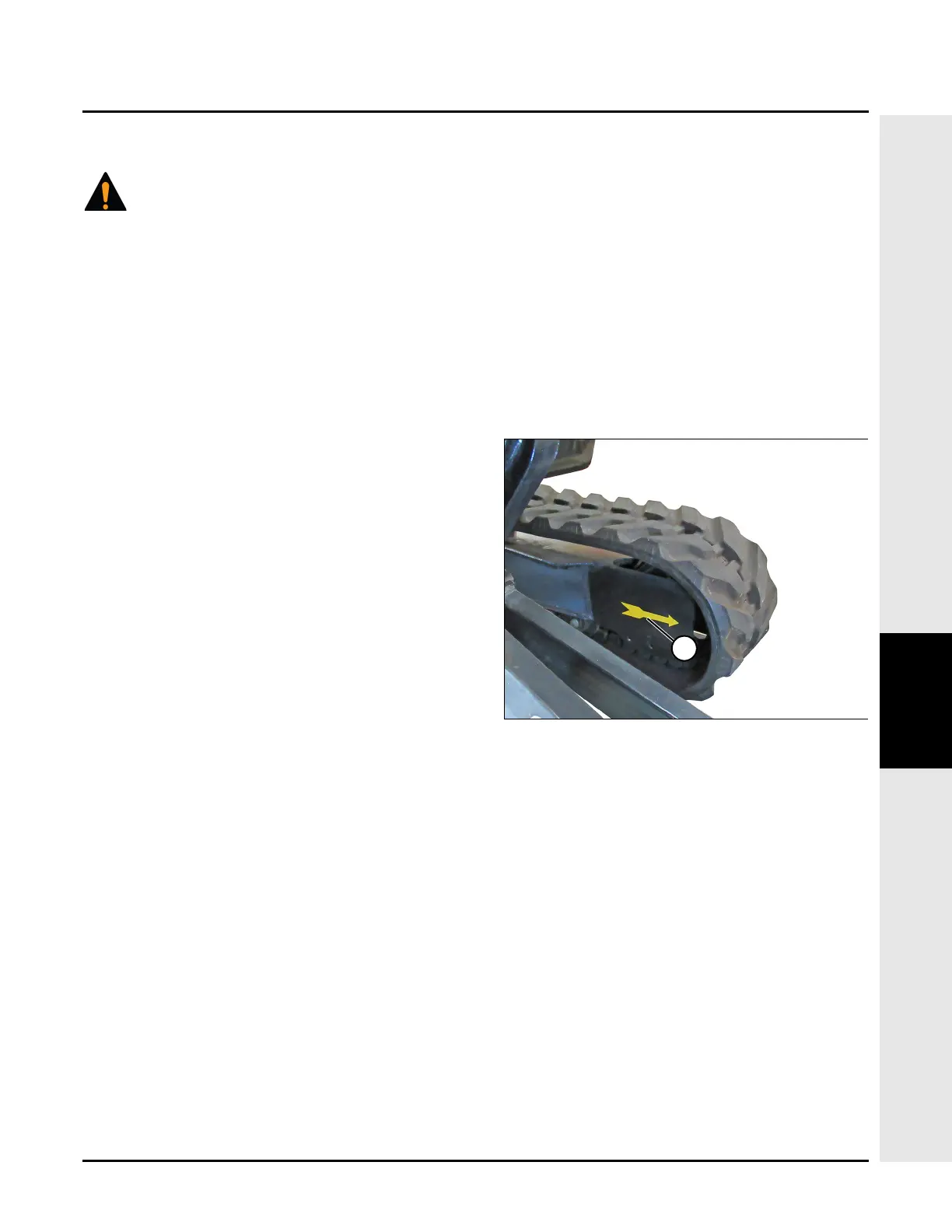

Fig. 4-20
0003794
