Relays
Relay # Rating Circuit
K2 14V/35A Horn
K3 14V/35A Starting
K4 14V/35A Work lights
K8 14V/35A Engine
K9 14V/35A Beacon light

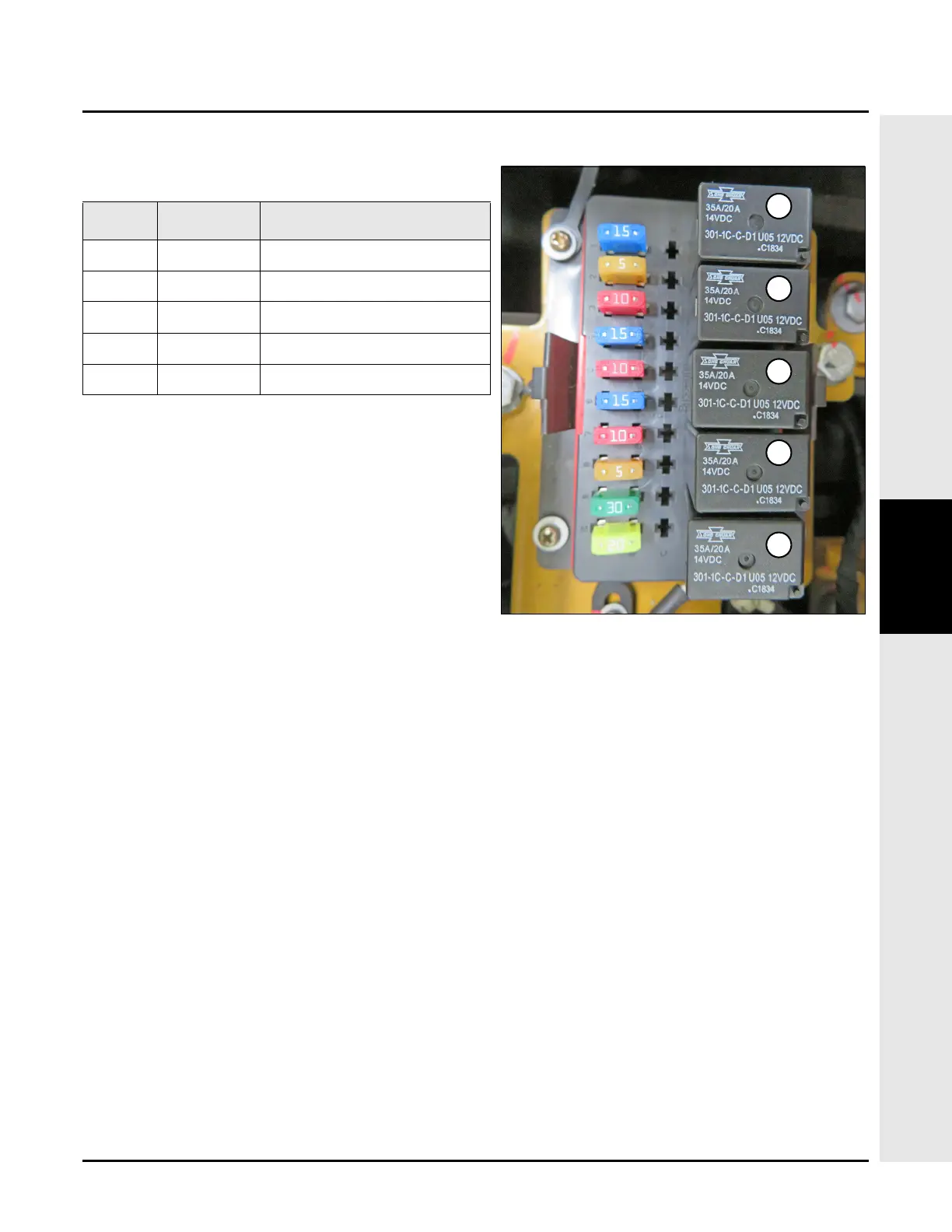

Fig. 3-52
0005129
K9
K8
K4
K2
K3
