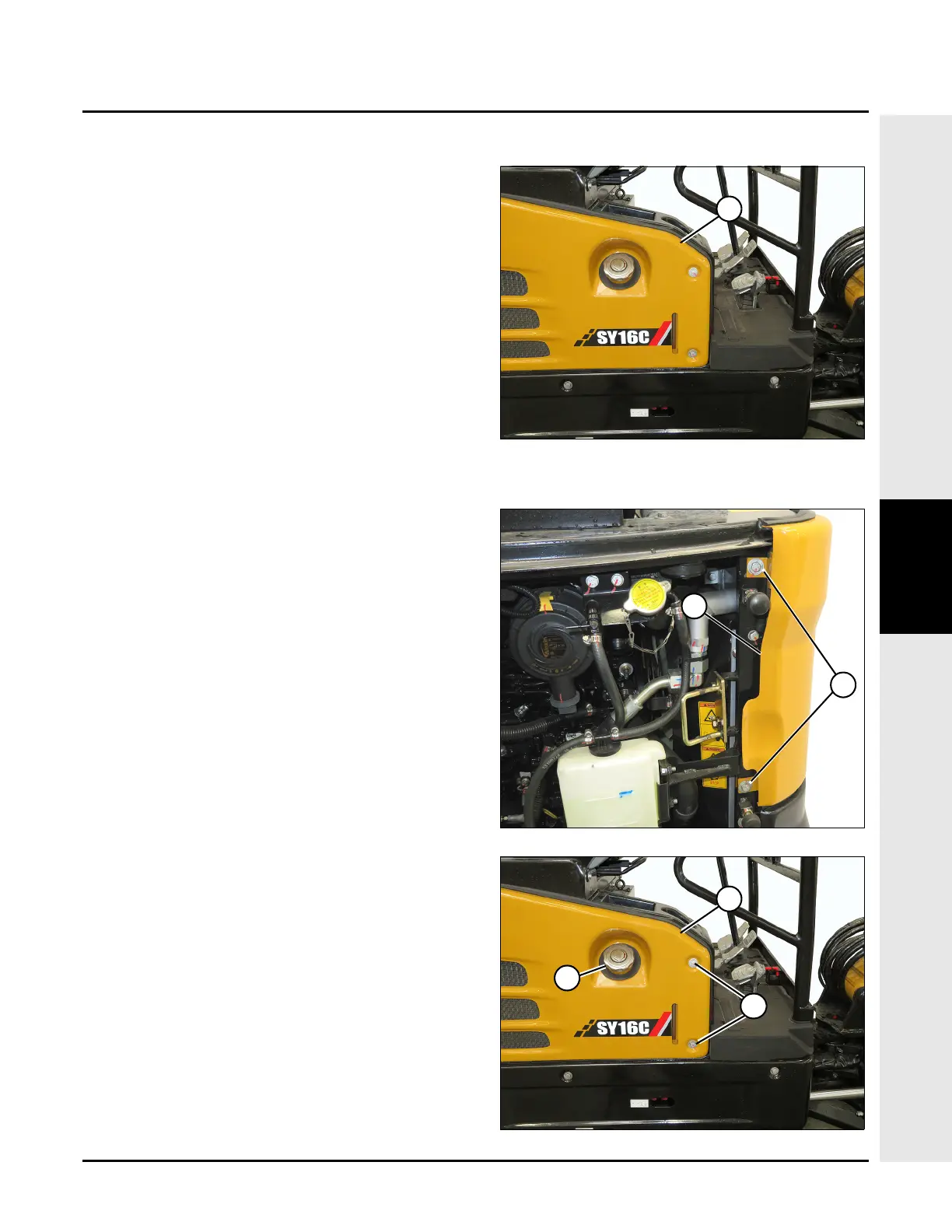

Right Access Panel
The right access panel (1) provides access to:
• Radiators
• Fuel tank
Remove/Install the Right Access Panel
1. Open the engine hood.
2. Remove two fasteners (2) from the rear of the right
access panel (1).
3. Remove two fasteners (3) from the side of the right
access panel (1).
4. Remove fuel tank filler cap (4) and the right access
panel.
5. Install right access panel in reverse order of removal.
Fig. 3-32
0005165
1
Fig. 3-33
0005164
2
1
Fig. 3-34
0005165
4
3
1
