SANY SY16C - Right Skirt Panel; Remove;Install the Right Skirt Panel

Machine Controls SY16C Excavator OMM
3-24 Operation and Maintenance Manual — 0420 SANY

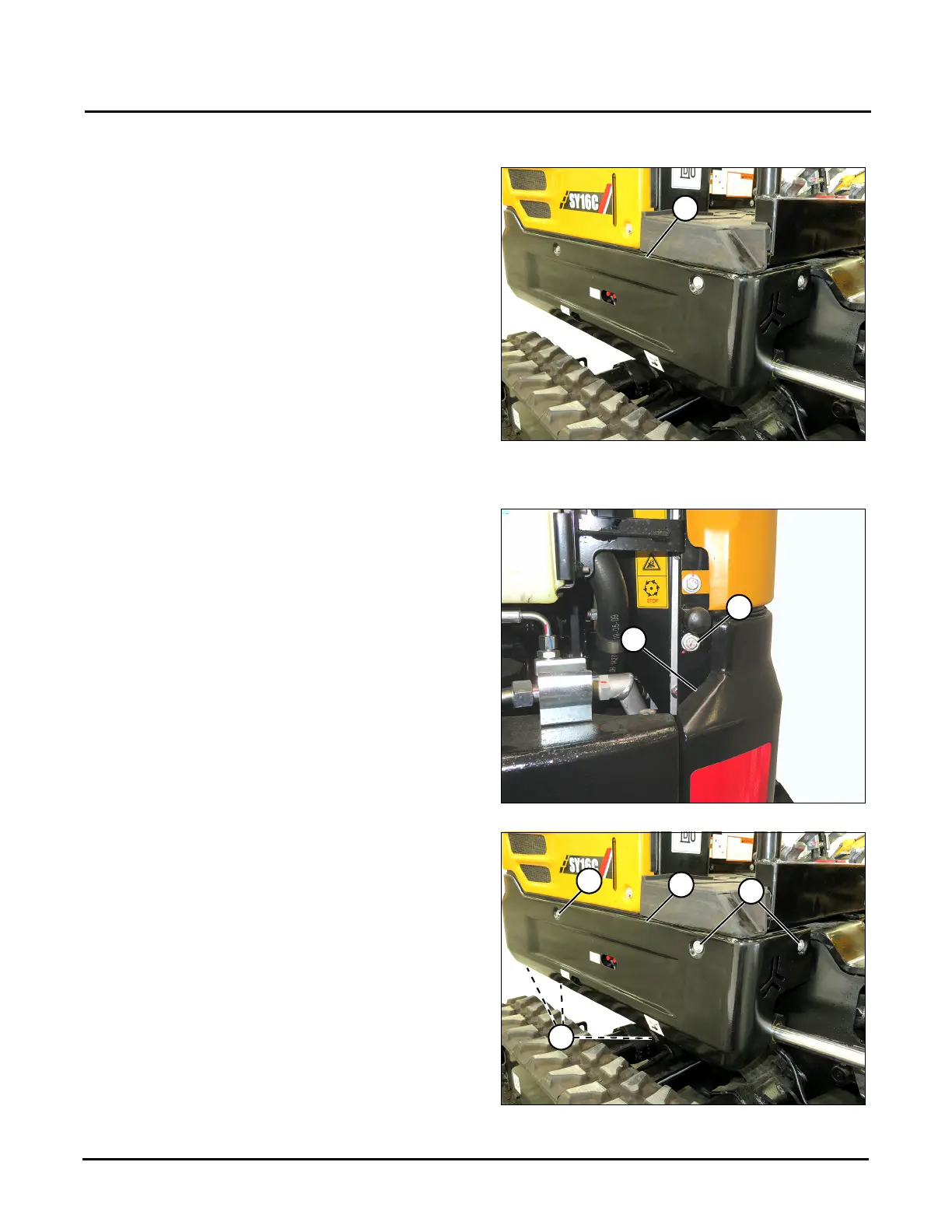

Right Skirt Panel
The right side skirt panel (1) provides access to:
• Radiator drain valve
• Fuel tank drain valve
Remove/Install the Right Skirt Panel
1. Open the engine hood.
2. Remove one fastener (2) from the rear of the right skirt
panel (1).
3. Remove three fasteners (3) from the top of the right
skirt panel (1).
4. Remove three fasteners (4) from the bottom of the right
skirt panel and remove the panel.
5. Install the right skirt panel in reverse order of removal.
Fig. 3-35
0005168
1
Fig. 3-36
0005167
2
1
Fig. 3-37
0005168
3
4
1
3
