1) Remove 2 screws (A) and disconnect the lamp socket.
2) Remove 2 screws (B) and pull the Lamp Ballast Ass’y upward.
3) Remove 2 screws (C) and remove the Lamp Ballast Unit from
the Lamp Ballast Holder.
7. LAMP BALLAST UNIT REMOVAL
-11-
Mechanical Disassemblies

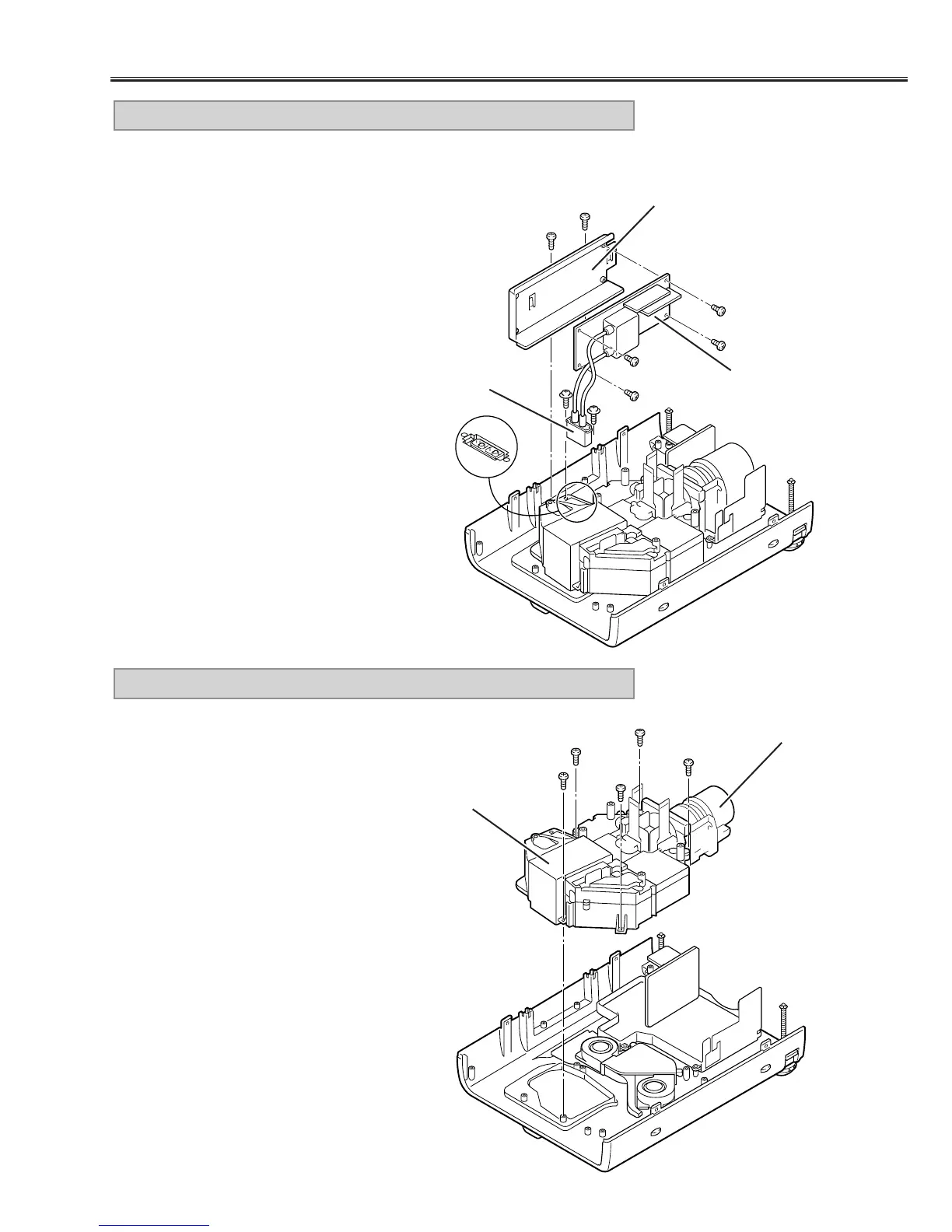

Fig.8
C
B
B
C
C
A
C
Lamp Socket
Lamp Ballast Holder
Lamp Ballast Unit
A
1) Remove 5 screws and pull the Optical Unit upward.
8. LENS, OPTICAL UNIT REMOVAL
Fig.9
Lens
Optical Unit
