Sanyo PLC-SU20E User Manual

-12-
Mechanical Disassemblies
1) Remove screws (A) and pull the Power Board Ass’y upward.
2) Remove 3 screws (B) and take the Power Board off from the Power Board
Holder.
3) Remove the P.F. Board from the Power Board.
9. POWER, P.F. BOARD REMOVAL

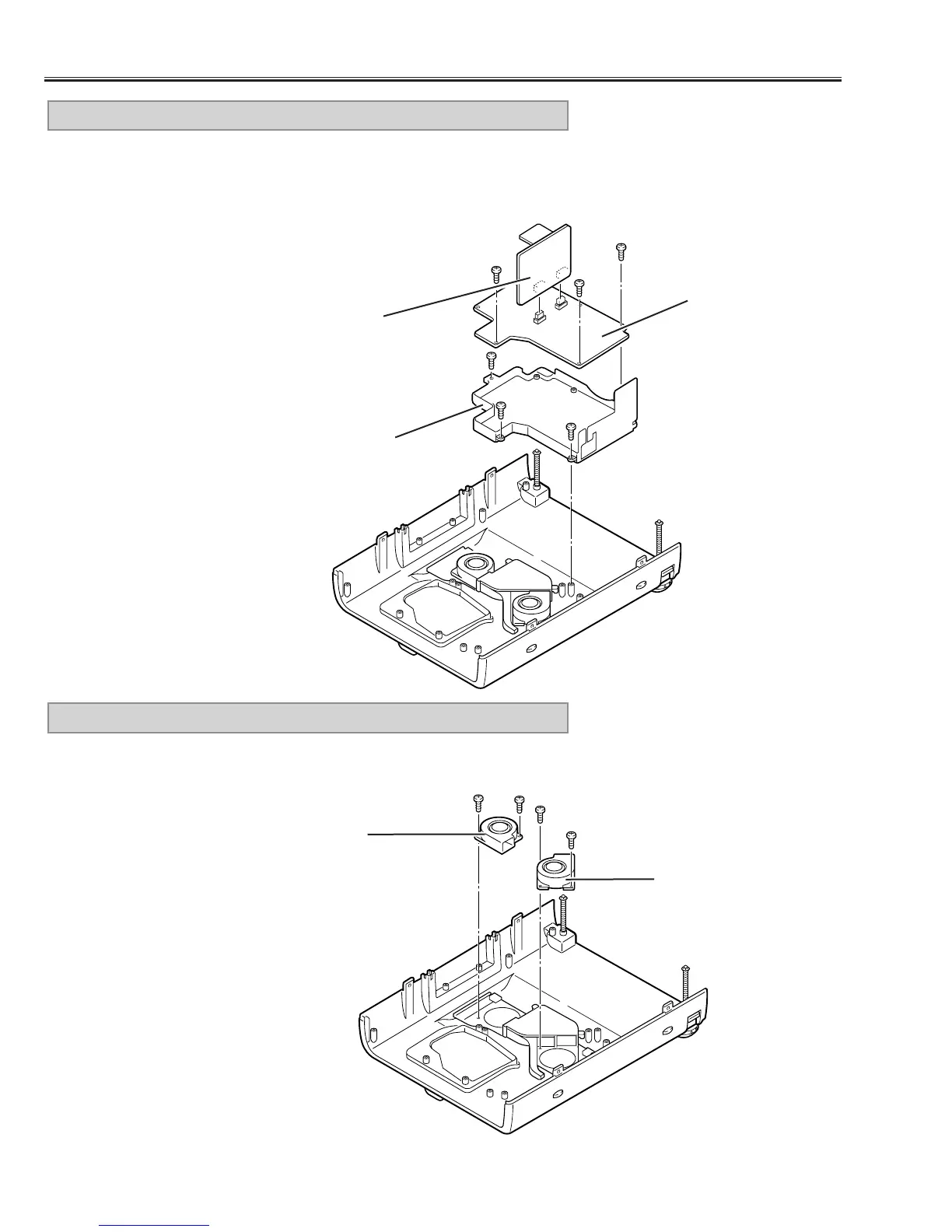

Fig.10
Power Board
P.F. Board
1) Remove each 2 screws and take the Fans (FN902, FN903) off.
10. FAN (FN902, FN903) REMOVAL
Fig.11
Fan (FN902)
Fan (FN903)
P.F. Board Holder
A
A
A
B
B
B
