Sanyo PLC-XU4000 Service Manual

-14-
Mechanical Disassembly
AV Panel
1. Remove 3 screws-A (T3x8) and remove the fans (FN904 and FN905).
2. Remove 5 screws-B (M2.5x6) and 2 screws-C (M3x8) to remove the Main
Board.
3. Release the hooks to remove the AV Panel, remove 3 screws-D (T3x6)
and 2 hex screws E to remove the AV Board.

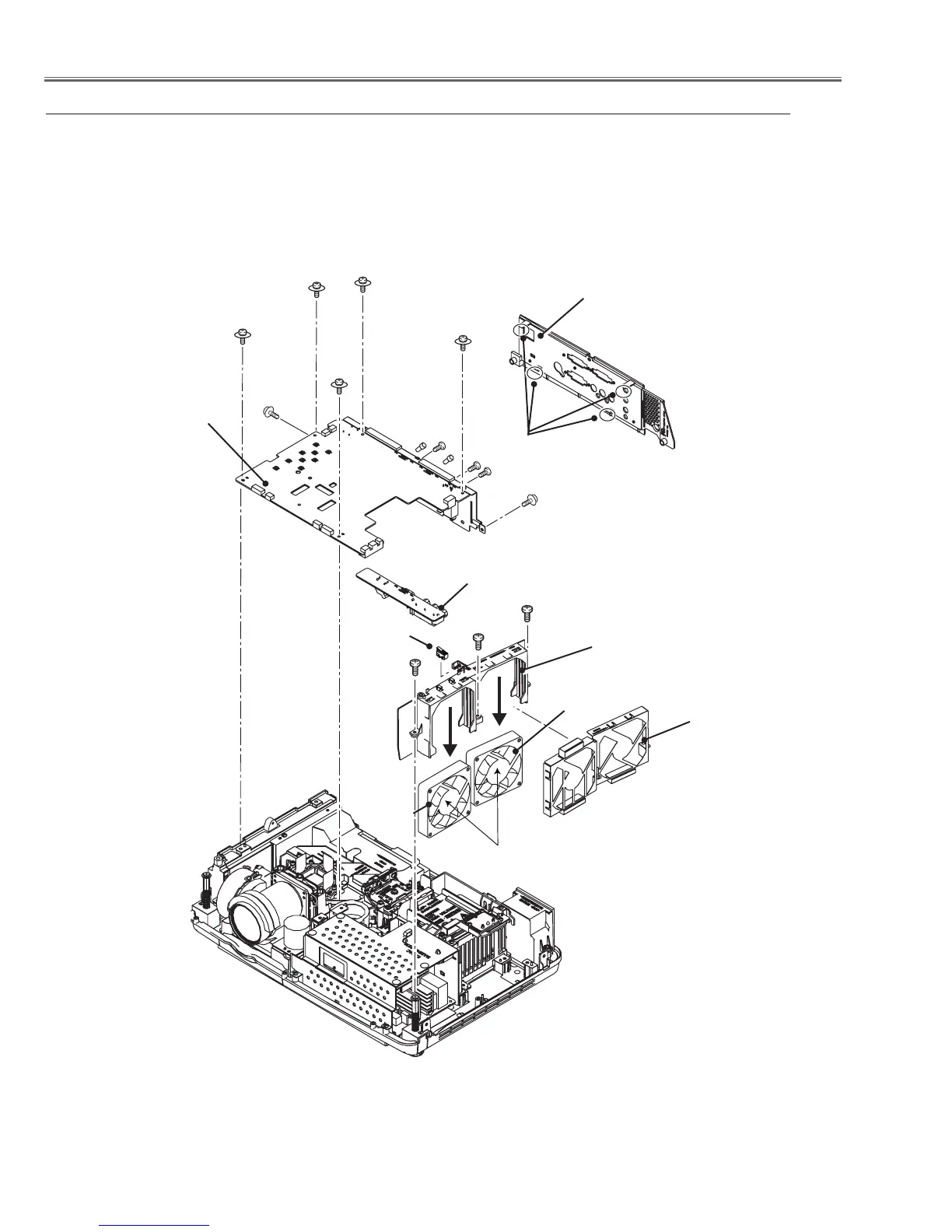

Fig.2
2. Main Board, AV Board and Fans(FN904 and FN905) removal
B
B
C
AV Board
A
Fan holder
FN904
SW901
A
A
B
B
B
C
D
D
D
Main Board
E
E
Hooks
FN905
Fan shield
Label side
