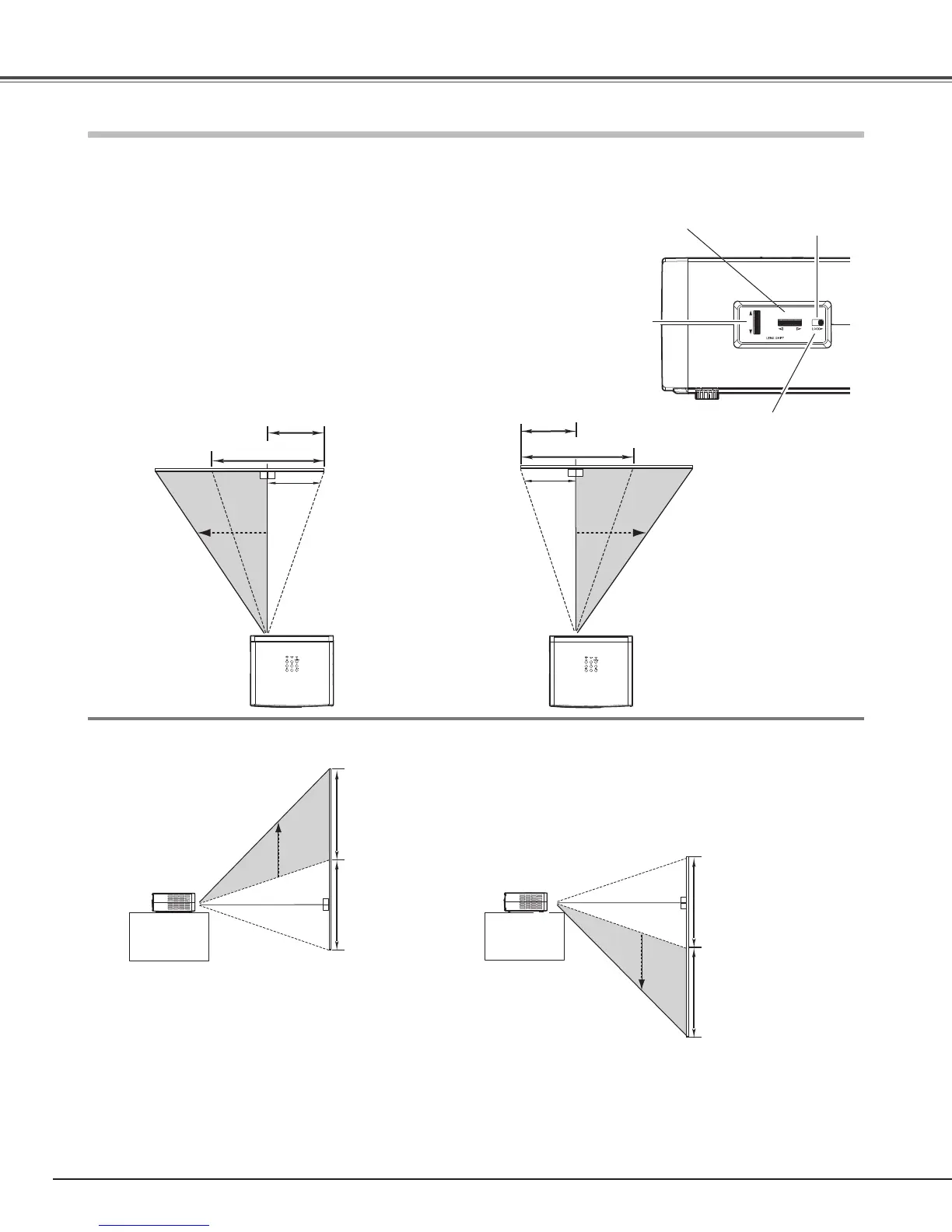

The projection lens can be moved up and down or left and right manually with the Lens Shift Rings, enabling you to adjust
the position of a projected image. After adjusting the position, lock the lens with the Lens Shift Lock.
V
V
uppermost
W
1/2W
Horizontal Lens Shift Ring
(Left/Right)
Move the projection lens to the left or right with the Horizontal
Lens Shift Ring.
Move the projection lens up or down with the Vertical Lens Shift
Ring.
Vertical Lens Shift Ring
(Up/Down)
V
V
W
1/2W
downmost
leftmost rightmost
Vertical Lens Shift (Up/Down)
Horizontal Lens Shift (Left/Right)
Moving the Lens
✔Note:
 •Thebestimageisgenerallyobtainedatthecentralaxisofthelensshift.
 •Withmaximumlensshiftineachdirection,imagedistortionmaybeobservedattheedgeofthescreen.
 •Withthemaximumhorizontallensshift,themaximumverticallensshiftcannotbeobtained,andviceversa.
 •TheLensShiftRingsarelockedatthefactory.MakesurethattheLensShiftLockisreleasedbeforeusingtheLensShiftRings.
Lens Shift Lock
Before using the
Lens Shift Rings,
make sure that this
lock is released.
Installation

Sanyo PLV-Z3000 Specifications

General

Matrix size	0.7 \
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	LCD
Contrast ratio (typical)	-
Screen size compatibility	40 - 300 \
Aspect ratio	16:9
RS-232 ports	1
Dimensions (WxDxH)	400 x 146 x 346 mm
Lamp type	UHP
Lamp power	165 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Focus	Manual
Focal length range	22.3 - 45.3 mm
Noise level	19 dB
Dot clock scanning frequency	100 MHz
Serial interface type	RS-232
Component video (YPbPr/YCbCr) in	3

Weight and Dimensions

Weight	7500 g
