Sanyo PLV-Z3000 Owner's Manual

9
q COMPUTER
Connect the computer output signal, or RGB Scart 21-pin
video output to this connector (p.16).

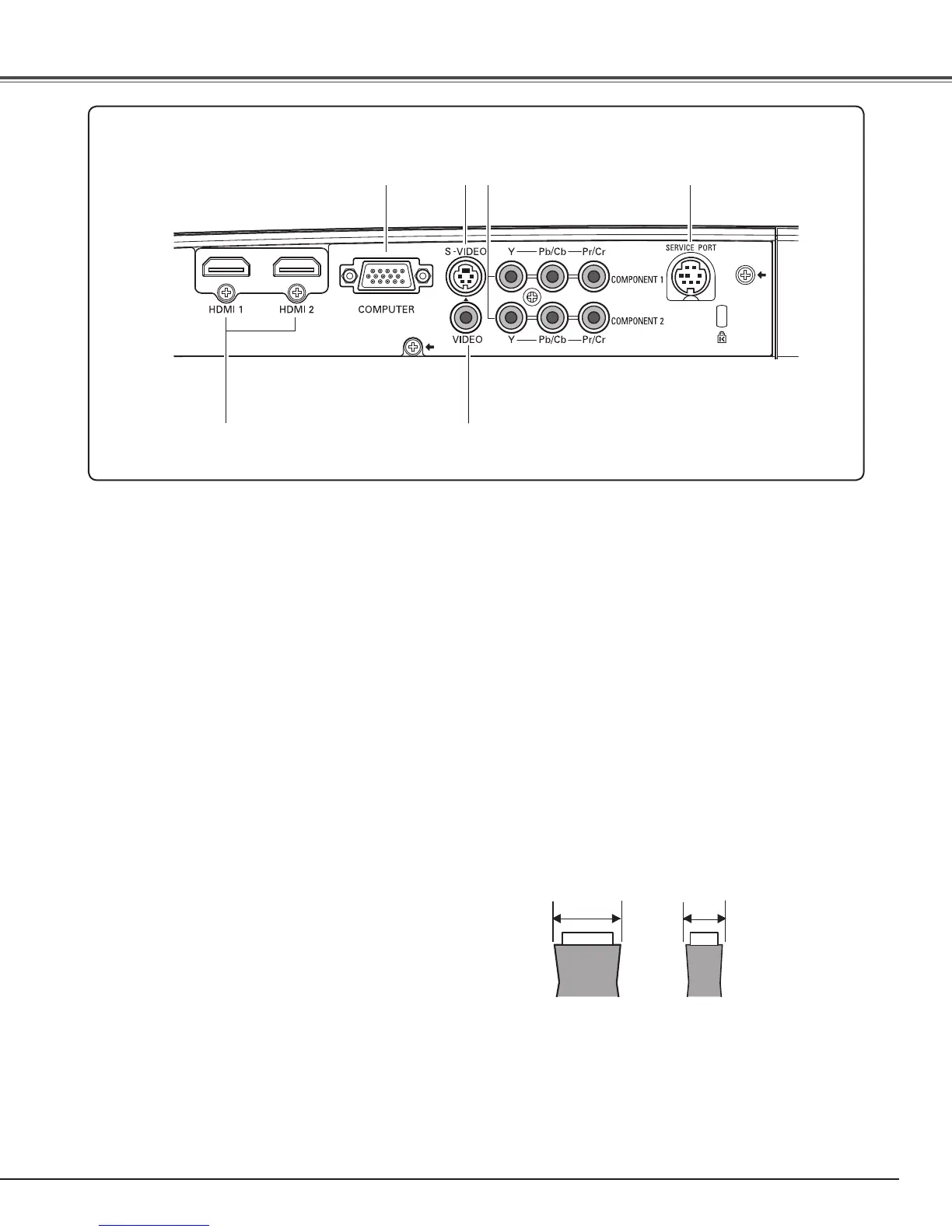

Rear Terminal
q w
t
e
y
VIDEO
Connect the composite video output signal from video
equipment to this jack (p.15).
e COMPONENT 1 or COMPONENT 2
Connect the component video output signal to these jacks
(p.15).
w S-VIDEO
Connect the S-Video output signal from video equipment
to this jack (p.15).
r SERVICE PORT
This jack is used to service the projector.
r
y
t HDMI 1/HDMI 2*
Connect the HDMI output signal from video equipment
to these terminals (p.16).
* Note on the HDMI connector:
Use the HDMI connector less than the size shown below.
Otherwise you cannot connect use HDMI 1 and HDMI 2
terminals at the same time.
0.94" (24 mm)
0.59" (15 mm)
WIDTH THICKNESS
Maximum dimensions of the HDMI connectors
Part Names and Functions

Sanyo PLV-Z3000 Specifications

General

Matrix size	0.7 \
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	LCD
Contrast ratio (typical)	-
Screen size compatibility	40 - 300 \
Aspect ratio	16:9
RS-232 ports	1
Dimensions (WxDxH)	400 x 146 x 346 mm
Lamp type	UHP
Lamp power	165 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Focus	Manual
Focal length range	22.3 - 45.3 mm
Noise level	19 dB
Dot clock scanning frequency	100 MHz
Serial interface type	RS-232
Component video (YPbPr/YCbCr) in	3

Weight and Dimensions

Weight	7500 g
