Sanyo PLV-Z3000 Owner's Manual

8

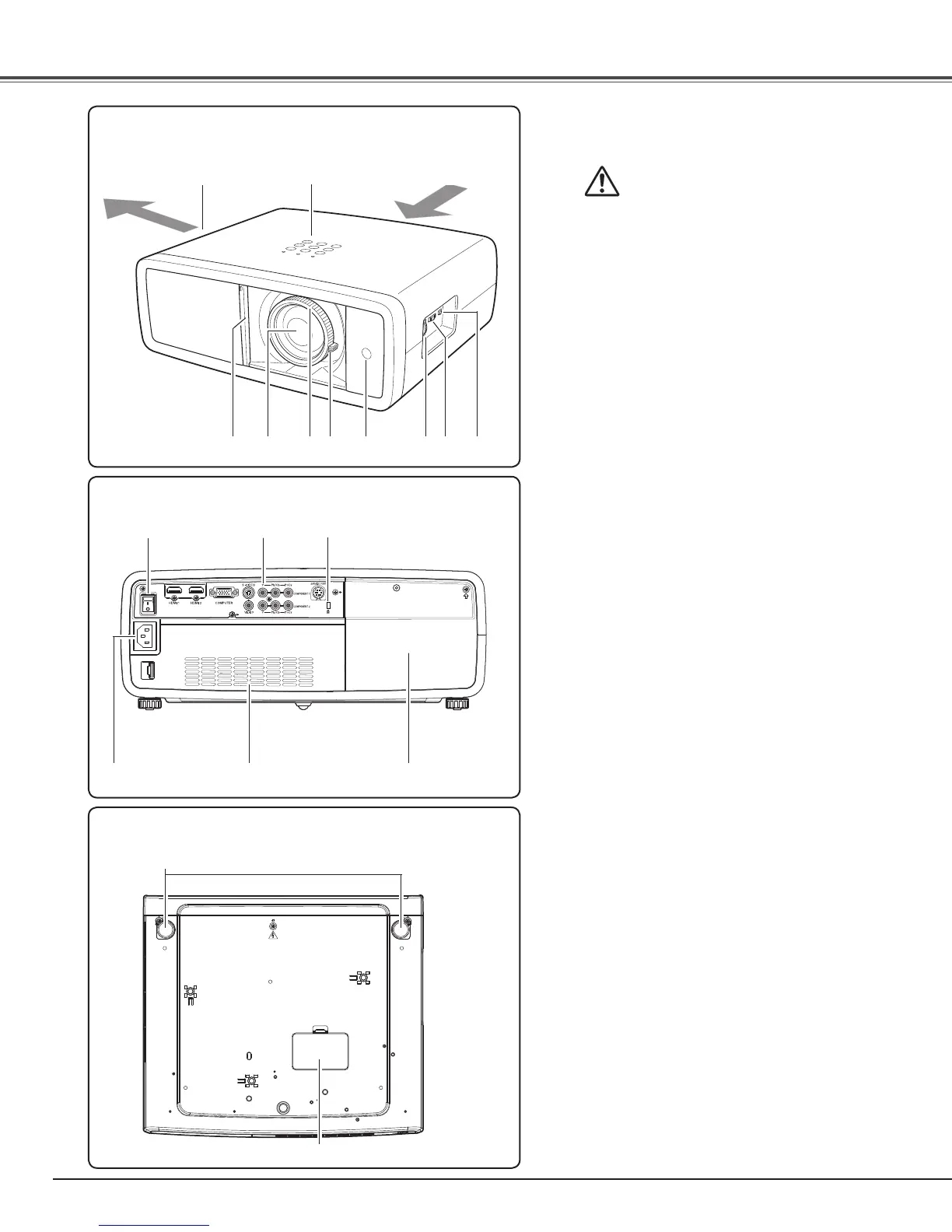

Bottom
Back
!2
!3 !4
!6 Adjustable Feet
!7 RGB Panel Cleaning Hole Cover
!1
!6
!5
!1 Terminals and Connectors
!2 Main On/Off Switch
!3 Power Cord Connector
!4 Air Intake Vent
!5Lamp Cover
✽ Kensington Security Slot
This slot is for a Kensington lock used to deter theft of
the projector.
*Kensington is a registered trademark of ACCO Brands Corporation.
q Exhaust Vent
Front
q
e r
yt
u
o
w Top Controls and Indicators
e Automatic Slide Shutter
r Projection Lens
t Focus Ring
y Zoom Lever
u Infrared Remote Receiver
i Vertical Lens Shift Ring (Up/Down)
o Horizontal Lens Shift Ring (Left/Right)
!0 Lens Shift Lock
!7
i !0
Air flow
CAUTION
Hot air is exhausted from the exhaust vent.
Do not put heat-sensitive objects near this
side.
✽
Part Names and Functions
w

Sanyo PLV-Z3000 Specifications

General

Matrix size	0.7 \
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	LCD
Contrast ratio (typical)	-
Screen size compatibility	40 - 300 \
Aspect ratio	16:9
RS-232 ports	1
Dimensions (WxDxH)	400 x 146 x 346 mm
Lamp type	UHP
Lamp power	165 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Focus	Manual
Focal length range	22.3 - 45.3 mm
Noise level	19 dB
Dot clock scanning frequency	100 MHz
Serial interface type	RS-232
Component video (YPbPr/YCbCr) in	3

Weight and Dimensions

Weight	7500 g
