Sanyo PLV-Z3000 Owner's Manual

20
Press the MENU button on the top control or on the remote
control to display the On-Screen Menu.
Use the Point
ed buttons to highlight or select a main menu
item. Press the Point
8 or OK buttons to access the submenu
items. (The selected item is highlighted in ORANGE.)
Press the Point
7 button to return to the main menu; press
the MENU button again to exit the On-Screen Menu.
Use the Point
ed buttons to select the desired submenu
item and press the Point
8 or OK buttons to access the
selected item.
1
2
5
3
The projector can be adjusted or set via the On-Screen Menu.
The menus have a hierarchical structure, with a main menu that
is divided into submenus, which are further divided into other
submenus. For each adjustment and setting procedure, refer to
respective sections in this manual.
Top Control
Point
Right or OK
buttons
OK button
POINT buttons
(arrowhead)
Remote Control
MENU button

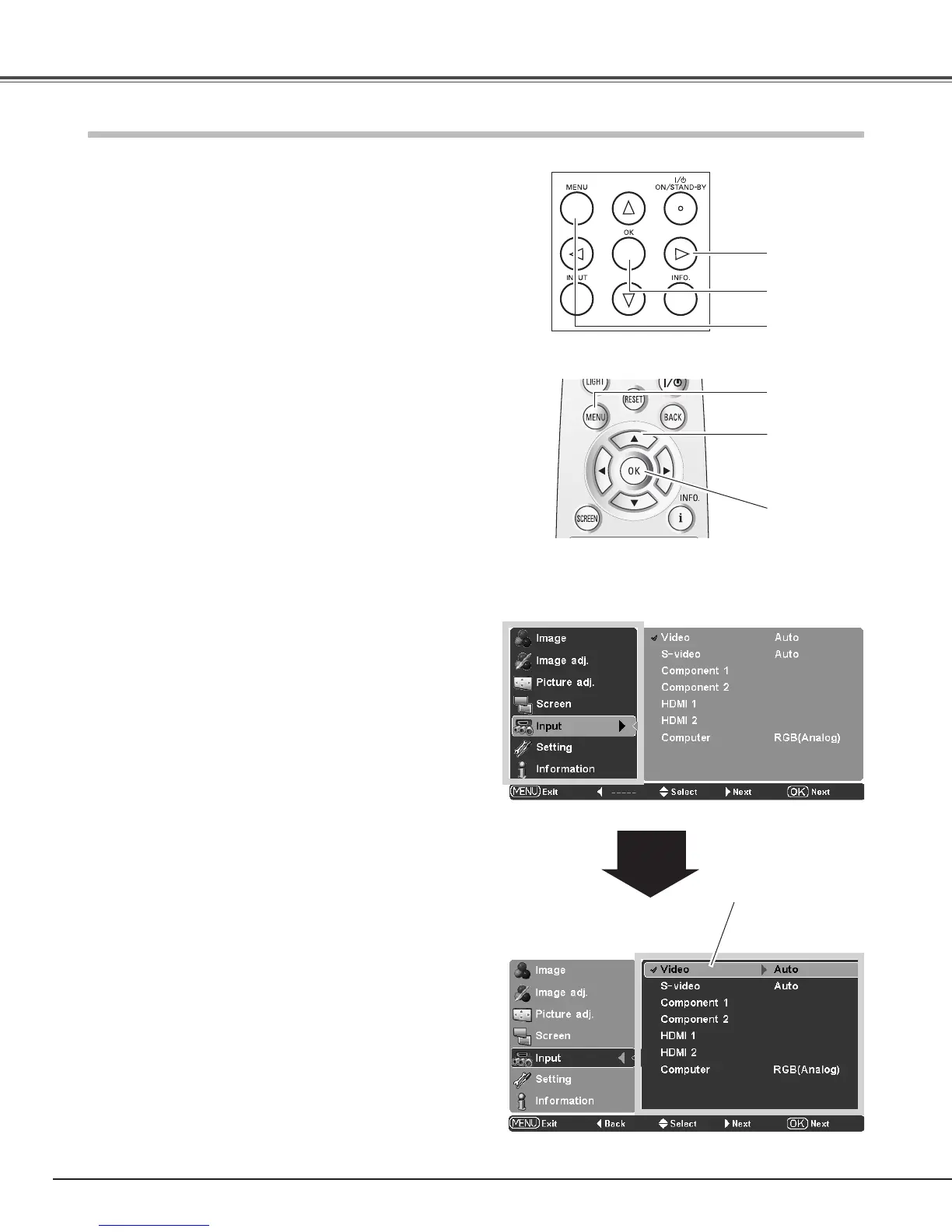

How to Operate the On-Screen Menu
MENU button
OK button
POINT buttons
(arrowhead)
On-Screen Menu (Main Menu)
On-Screen Menu (Submenu)
The selected item is
highlighted in ORANGE.
Use the Point 7 8 or OK buttons to adjust the setting or
switch between each option and press the Point
8 or OK
buttons to activate it and return to the submenu.
4
Basic Operation

Sanyo PLV-Z3000 Specifications

General

Matrix size	0.7 \
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	LCD
Contrast ratio (typical)	-
Screen size compatibility	40 - 300 \
Aspect ratio	16:9
RS-232 ports	1
Dimensions (WxDxH)	400 x 146 x 346 mm
Lamp type	UHP
Lamp power	165 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Focus	Manual
Focal length range	22.3 - 45.3 mm
Noise level	19 dB
Dot clock scanning frequency	100 MHz
Serial interface type	RS-232
Component video (YPbPr/YCbCr) in	3

Weight and Dimensions

Weight	7500 g
