Sanyo PLV-Z3000 Owner's Manual

34
1
Press the Point ed buttons to select the Picture adj. Menu
and press the Point
8 or OK buttons to access the submenu
items.
2
Use the Point ed buttons to select the desired item and
press the Point
8 or OK buttons to access the selected
item. The adjustment bar is displayed.
Fine sync
Use the Point 7 8 buttons to adjust the value, eliminating a flicker
from the image displayed (from 0 to +31).
Total dots
Use the Point 7 8 buttons to adjust the number of total dots in
one horizontal period to match your PC image (from -100 to +100).
Horizontal
Use the Point 7 8 buttons to adjust the horizontal picture position
(from -100 to +100).
Vertical
Use the Point 7 8 buttons to adjust the vertical picture position
(from -100 to +100).
Picture Position and Screen Adjustment
Some input source employ special signal formats which may not be tuned by the auto-tuning system of this projector.
Picture Adjustment enables you to precisely adjust several parameters manually to match those signal formats. The
parameters manually adjusted is stored for every input.
Picture adj. Menu
Overscan
Use the Point 7 8 buttons to adjust the overscan area. It works
only to decrease the overscanned portion of the screen (from 0 to
+10).
Auto adj.
When the input signal is from computers, select Auto adj. and
press the Point
8 or OK buttons so that it automatically adjust Fine
sync, Total dots, and Horizontal and Vertical positions to conform to
your computer.
✔Note:
 •Overscancanbeselectedwiththevideoinputonly.
 •Whenthedigitalsignalisselectedandtheimagenoiseappears
ontheedgeofthescreen,usetheOverscantomakeadjustment.
 •TheadjustingrangefortheHorizontalandVerticalpositions,and
Totaldotsdiffersdependingontheinputsignal.Whenthevideo
signalformatis480ior575i,theadjustingrangefortheHorizontal
positionwillbefrom-8to+8.
 •TheAutoadj.functioncannotbeoperatedwiththevideoinput,
someincompatiblecomputerinputanddigitalsignals.
 •FinesyncandTotaldotscannotbeoperatedwithsome
incompatiblecomputerinputanddigitalsignals.
 •ThePictureadj.Menucannotbeoperatedwithoutaninputsignal.
 •WhentheadjustmentexceedsthesignalrangeofHorizontaland
Verticalpositions,andTotaldots,theprojectedimagemaybe
distorted.

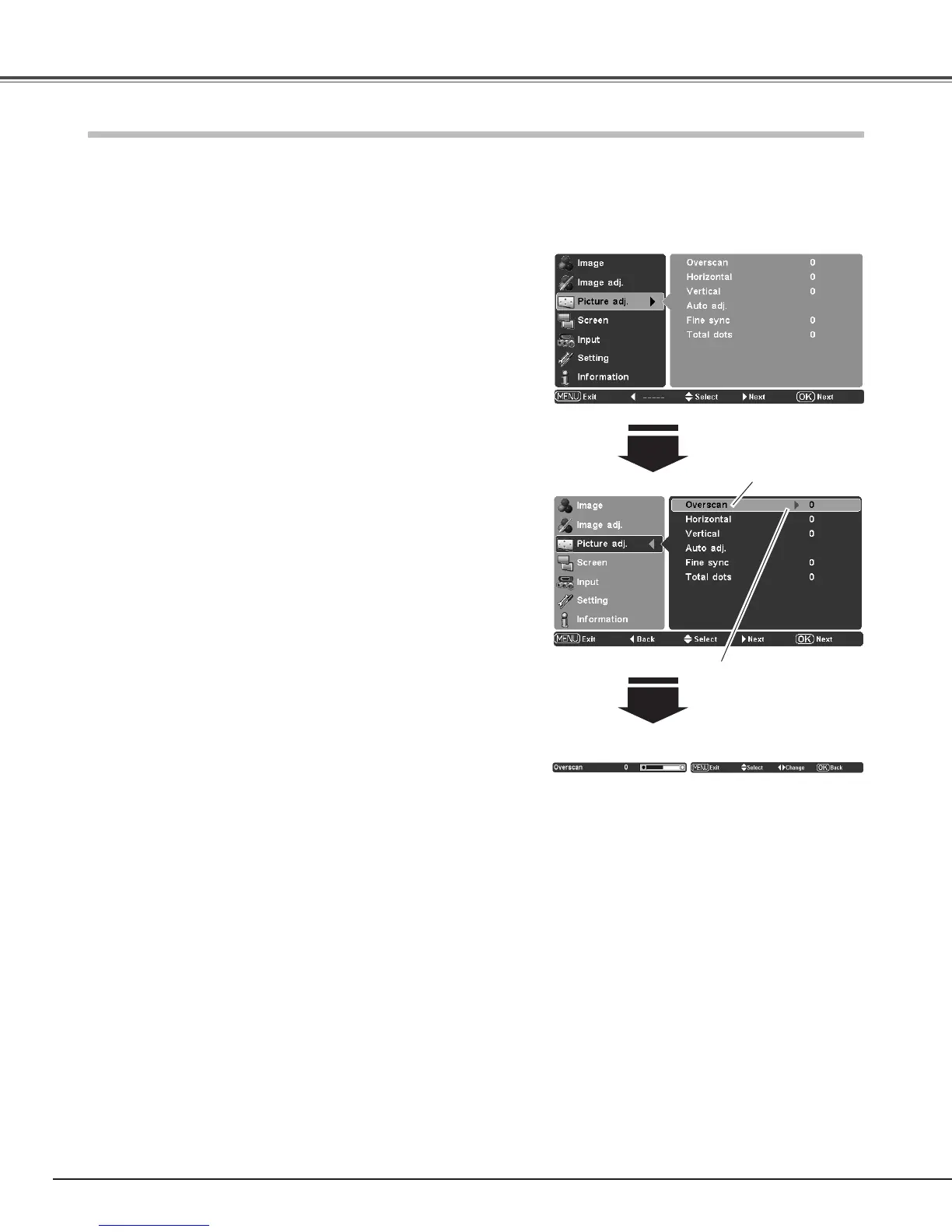

The selected item.
Press the Point
8 or OK
buttons to access the
selected item. The adjust-
ment bar is displayed.
3
Use the Point 7 8 buttons to adjust the setting values and
press the OK button.
Use the Point
7 8 buttons
to adjust the setting
values and press the OK
button to return to the
submenu.
If you press the Point
d
button, the next item can
be selected.
Picture Adjustment

Sanyo PLV-Z3000 Specifications

General

Matrix size	0.7 \
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	LCD
Contrast ratio (typical)	-
Screen size compatibility	40 - 300 \
Aspect ratio	16:9
RS-232 ports	1
Dimensions (WxDxH)	400 x 146 x 346 mm
Lamp type	UHP
Lamp power	165 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Focus	Manual
Focal length range	22.3 - 45.3 mm
Noise level	19 dB
Dot clock scanning frequency	100 MHz
Serial interface type	RS-232
Component video (YPbPr/YCbCr) in	3

Weight and Dimensions

Weight	7500 g
