14 Operating Instructions Cubis
®
MCA
Device Description
3.2 Draft Shield
4
7
6
32
5
1

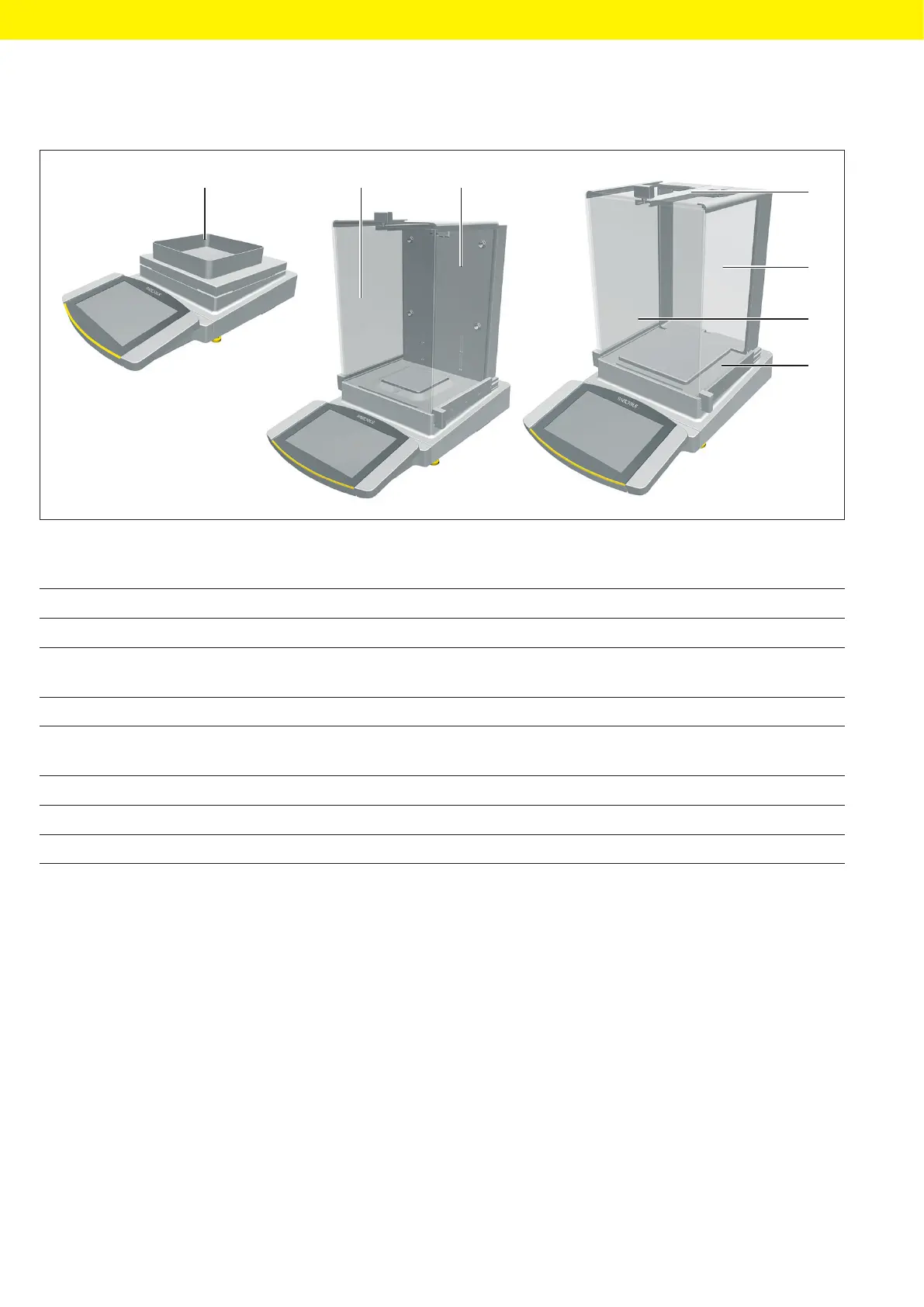

Fig. 2: Precision balance with frame draft shield, analytical balance with motorized analytical draft shield, and precision balance with manual
analytical draft shield (example)
Pos. Name Description
1 Frame draft shield Is placed on the shield plate.
2 Analytical draft shield Can be opened at the door handle of the upper panel or at the door
handles of the side panels. Is motorized in some models.
3 Housing back plate Manufactured from metal and plastic parts
4 Upper draft shield panel Used to open the upper panel. Can be opened manually and is motorized
in some models.
5 Rear panel Glass
6 Front panel Glass
7 Side panel Can be opened manually and is motorized in some models.
