Sartorius Cubis MCA Series - Connecting Electronics Module

Operating Instructions Cubis
®
MCA 51
Installation

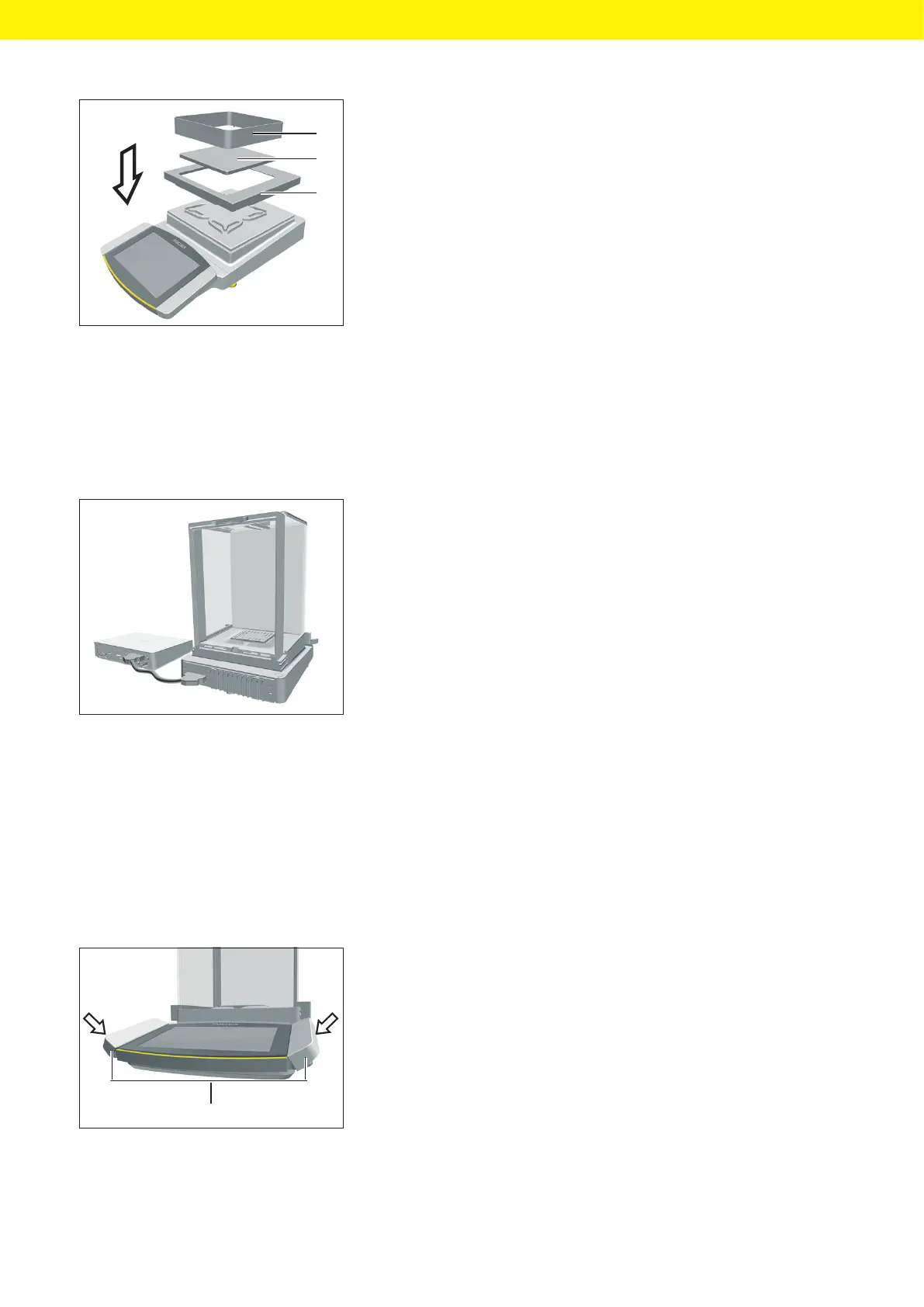

t Place the shield plate (3) on the device housing.
t Place the weighing pan (2) on the pan support.
t Place the frame draft shield (1) on the shield plate (3).
5.9 Connecting the Electronics Module
(Onlyfor Semi-microbalance)
Procedure
t Connect the connection cable to the electronics module’s weighing
module connection.
t Connect the other end of the connection cable to the weighing
module’s electronics module connection.
t To lock the connection cable: Lock the plugs of the connection cable
onto both connections with two clicks in each case.
t NOTICE Damage to the device due to incorrect connection!
t Check the correct fit of the plug contacts.
t There should be no tension on the connection cable,
e.g.donotinstall directly against a wall.
5.10 Installing Palm-operable Keys (Onlyfor
Devices with MotorizedDraftShield)
For models with a motorized draft shield, 2 palm-operable keys can
beinstalled.
Procedure
t Affix both palm-operable keys (1) onto the side of the display
andcontrolunit.
1
2
3
1
