Menu Operating Design
The keys below the display are used to
navigate and make entries in the device
menu.
Opening the Menu
Press the e key to switch the device off
and then on again; while all segments are
displayed, press the ) key briefly.
Navigating the Menu
( Exit the active submenu and return
to the next higher menu level (back).
) – Press briefly:
select and save a menu item.
– Press and hold (>2 seconds):
Exit the menu
k Show the next item on the same
menu level (the display scrolls
through all items in series).
p Print the menu settings starting
from the current position, or print
Info data.
Alphanumeric Input in the Menu
( – Press briefly:
Activate character to the left of
the currently active character
(when first character is active:
exit the input mode without
saving changes)
– Press and hold (> 2 seconds):
Exit the input mode without
saving changes
) – Press briefly:
Confirm currently active character
and move 1 position to the right
(after the last character:
save input)
– Press and hold (> 2 seconds):
Save current input and display
the menu item
k – Cursor in first position,
no characters entered yet:
Delete character(s) and enter 0
– Change the displayed character;
scroll forward (sequence:
0 through 9, decimal point,
minus sign, Z through A, space)
p – Cursor in first position, no
characters entered yet: Delete
character(s) and enter a space
– Change the displayed character;
scroll backwards (sequence: space,
A ... Z, minus sign, decimal point,
9 ... 0 )
Numeric input in the Signum
®
3
operating menu
Enter values (date and time, etc.) using
the 10-key numeric keypad
Menu Display

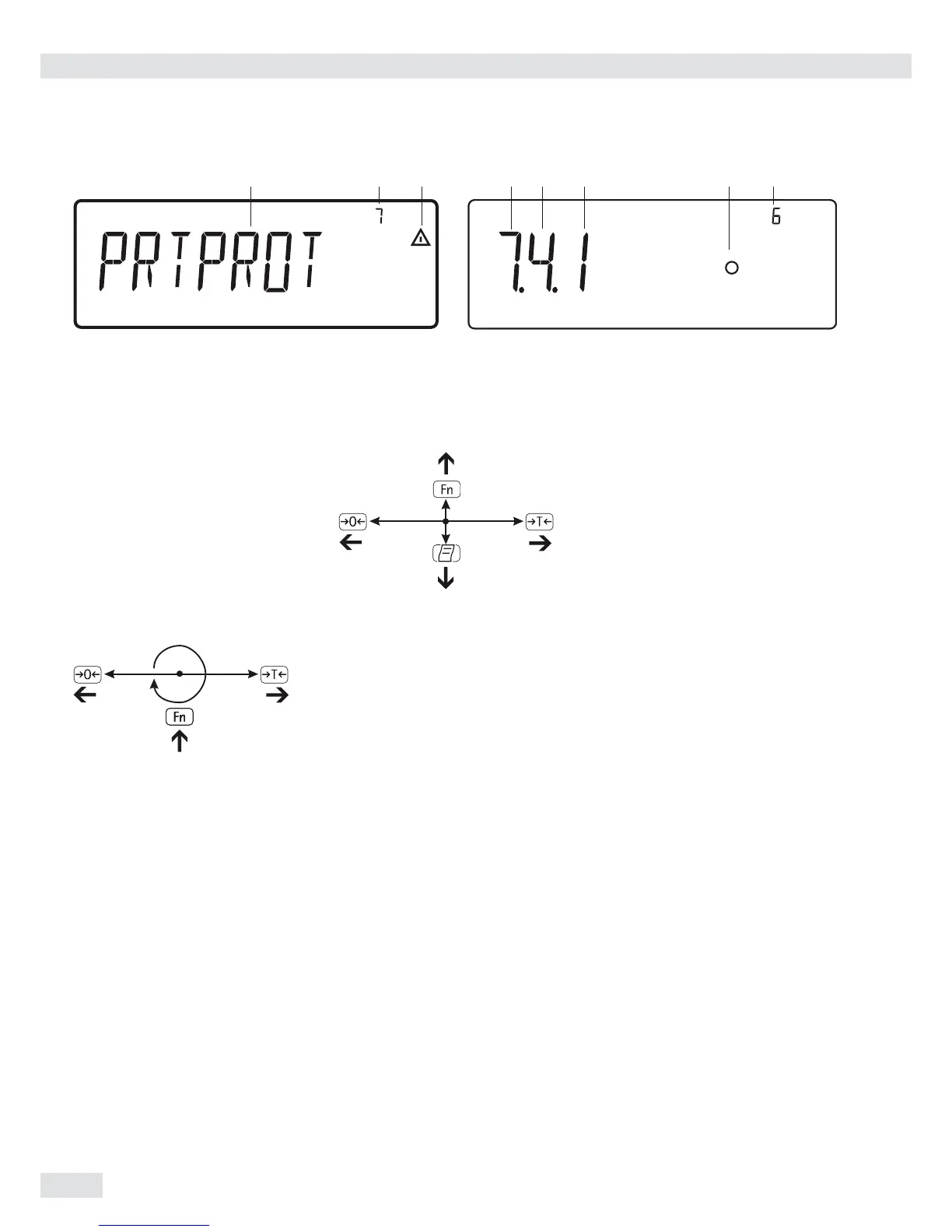

The illustration above depicts all of the
main display elements and symbols that
can be shown in the Setup menu.
1 Selected menu item at text level (e.g.
printer for setting the connected
printer)
2 Note that other submenus are available
3 Current active setting
4 Menu history (note at highest menu
level in the Setup menu)
5 First level in the Setup menu
6 Second level in the Setup menu
7 Third level in the Setup menu
Saving Menu Settings
The parameters selected in the
operating menu remain saved after you
switch off the Signum
®
.
You can block access to Setup in the
device menu by assigning a password.
This will prevent unauthorized changes
to selected menu parameters.
Setup Menu Display: Text Menu (Example) Setup Menu Display: Numeric operating menu (example)
1 4 2 5 6 7 3 4
