Model-specific Data
Weighing Data Signum® Supreme SIWSDCP/S-1,-2,-3 ( * models not available for SIWSDCS)
Non-verifiable models
Weighing capacity (kg) 3* 6 15* 16 3.5/16 3.5/16 7/35 7/35 35
Readability (g) 0.1 0.1 0.5 0.1 0.1/1 0.1/1 0.1/1 0.1/1 0.1
Resolution code -I -S -I -H -K -T -D -P -H
Adjustment value 1000 5000 10,000 10,000 10,000 10,000 10,000 10,000 10,000
(in grams)
Accuracy class F2 F2 F1 F1 F1 F1 F1 F1 F1
Verifiable/verified models
Type of construction BG SI 200 BG SI 200 BG SI 200 BG SI 200 BG SI 200 BG SI 200 BG SI 200 BG SI 200
EC type approval no. D07-09-010
Weighing capacity (kg) 6 15 16 3.5/16 3.5/16 7/35 7/35 35
Readability (g) 0.1 0.5 0.1 0.1/1 0.1/1 0.1/1 0.1/1 0.1
Verification scale interval e (g) 1 0.5 1 1 1 1 1 1
Resolution code -SCE -ICE -HCE -KCE -TCE -DCE -PCE -HCE
Adjustment value 5000 10,000 10,000 10,000 10,000 10,000 10,000 10,000
(in grams)
Accuracy class F2 F1 F1 F1 F1 F1 F1 F1
For all models
Preload (kg) 5 5 5 5 5 5 5 5 5
Repeatability (g) 0.08 0.08 0.08 0.08 0.08 0.08 0.08 0.08 0.08
(verified models in compliance with EN45501)
Linearity (g) 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2
(verified models in compliance with EN45501)
Ambient temperature (for use in legal metrology only) +10°C….+30°C
Resolutions for Signum® Supreme
Non-verifiable (type) Verified at factory (type)
-S Resolution > 60,000 d -SCE Single range, Cl. II < 10,000 e, e = 10 d
-H Resolution > 100,000 d -HCE Single range, Cl. II > 10,000 e, e = 10 d
-K Resolution < 50,000 d (fine range only for spec. capacity level) -KCE Dual range (fine range only for spec. capacity level) Cl. II < 5000 e
- T Resolution < 50,000 d (fine range can be continuously used) -TCE Dual range (fine range can be continuously used) Cl. II < 5000 e
-D Resolution > 50,000 d (fine range only for spec. capacity level) -DCE Dual range (fine range only for spec. capacity level) Cl. II > 5000 e
-P Resolution > 50,000 d (fine range can be continuously used) -PCE Dual range (fine range can be continuously used) Cl. II > 5000 e
- I Resolution > 30,000 d -ICE Single range, Cl. II 30,000 e, e = d

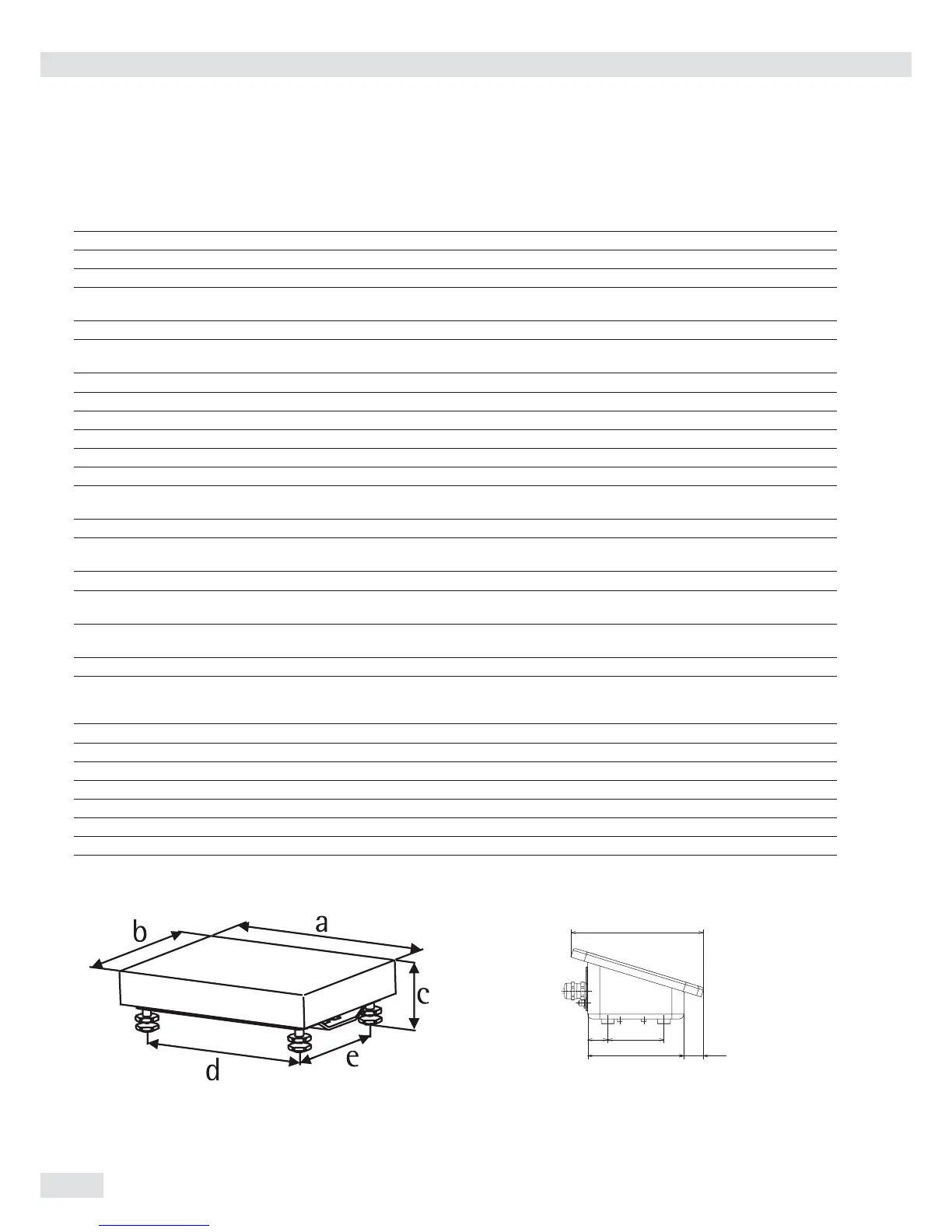

Dimensions (Scale Drawings) Signum SIWAEDG
a = 400
b = 300
c = 94...108
d = 344
e = 244
The dimensions of the indicator is identical with that of the indicator with the integrated battery. The indicator can be attached to the
YDH12CWS screw-fixed sheet metal plate or to the YDH02CWP column (accessories).
Overview Dimensions
99
Abmessungen (Maßskizzen)
Alle Maßangaben in Millimeter
415
±2
45
132.5
+10
240
350
95
165
55
168
Standard-Version:
Mit integriertem Akku:
192 80
237.5 5
260
7
30
41.5
31
150.5
453.5
25
148
+20
370
150
304
360
55
238 30SW
8M x1
124.5
70
120
25
165.5
24.5
SIWSDCS:
SIWRDCP | SIWADCP | SIWSDCP:
Signum 1-2-3
