2.2.7 Analog Output
The PM172EH provides two optically isolated analog outputs with an
internal power supply and current output options of 0-20 mA and 4-20 mA
(current loop load of up to 500 Ohm), 0-1 mA and ±1 mA (current loop
load of 10 kOhm).

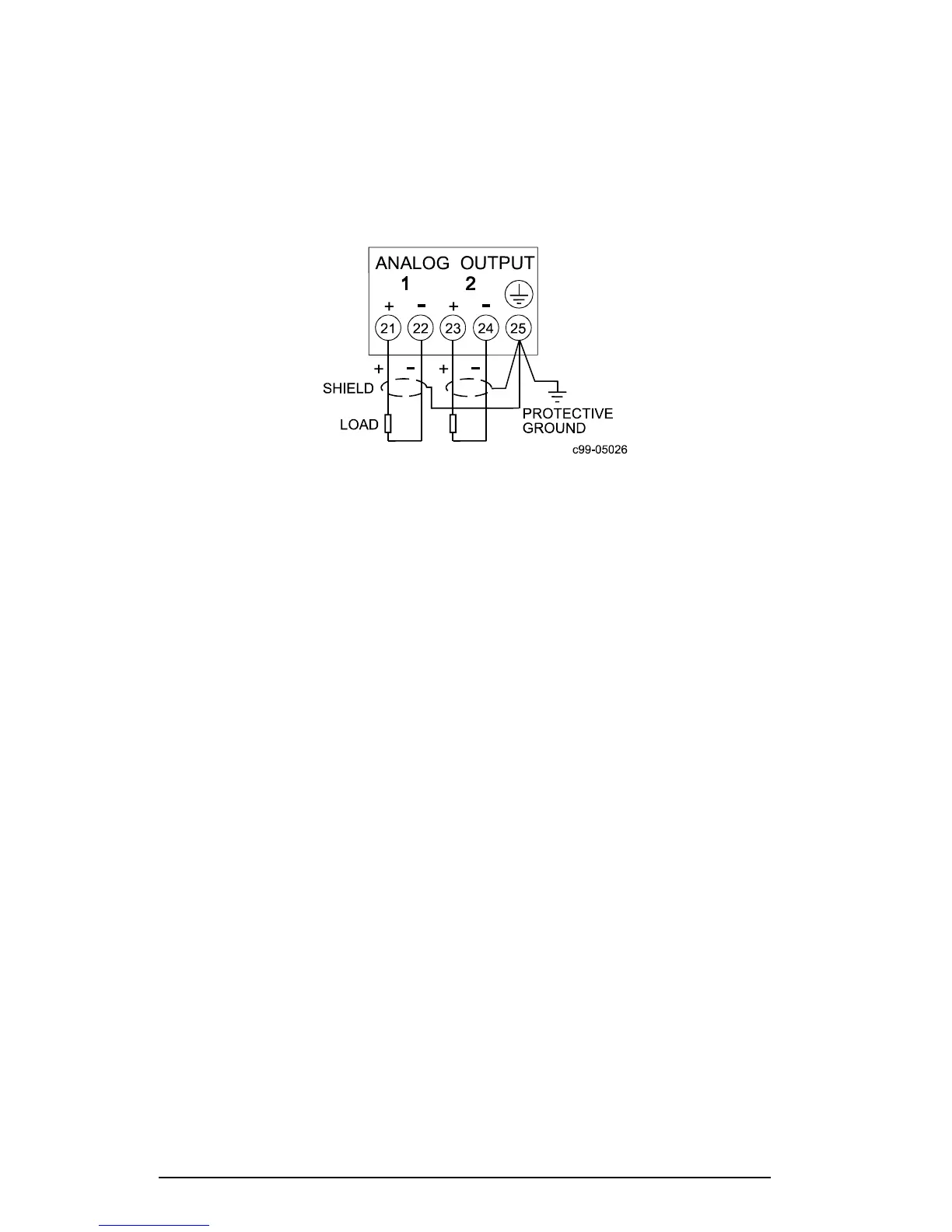

Figure 2-16 Analog Output Connection
