If the Ethernet module is connected to the control panel, the keypad with address 4
cannot be installed in the system.

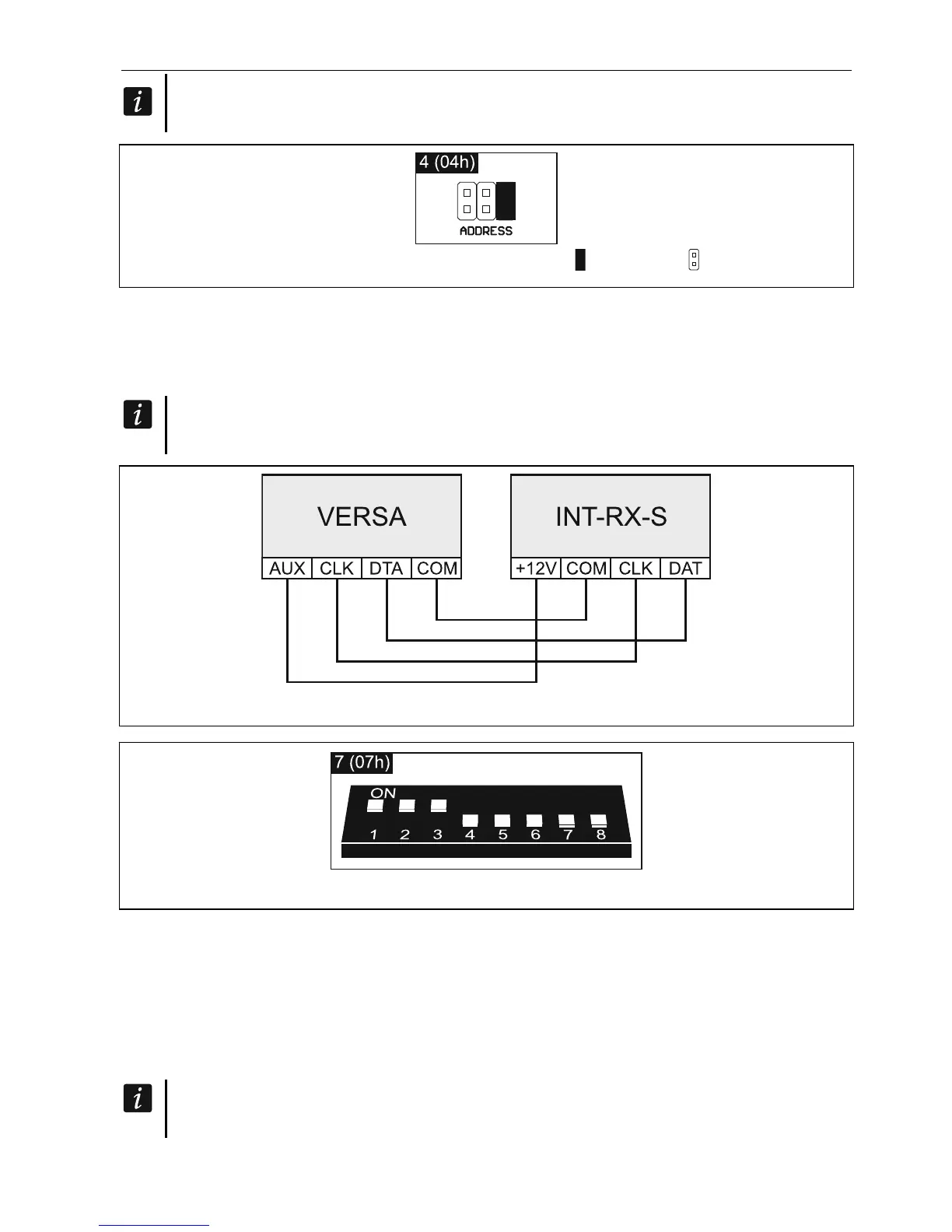

Fig. 7. Setting address in the ETHM-1 Plus module ( - jumper on; - jumper off).
5.5.3 Connecting 433 MHz keyfobs receiver expansion module
One INT-RX-S or INT-RX expansion module can be connected to the control panel. The
module enables 433 MHz keyfobs to be assigned to the users (up to 30 keyfobs). Address 7
(07h) must be set in the module.
If the INT-RX / INT-RX-S expansion module is connected to the control panel,
installation of the VERSA-MCU controller in the system is impossible.
Fig. 8. Connecting the INT-RX-S expander to the control panel.
Fig. 9. Setting address in the INT-RX-S / INT-RX expander.
5.5.4 Connecting 433 MHz wireless system controller
One VERSA-MCU controller can be connected to the control panel. The controller enables
433 MHz keyfobs to be assigned to the users (up to 30 keyfobs). It also enables up to 30
433 MHz wireless detectors to be installed in the alarm system (the control panel can support
up to 30 wireless zones). If the wireless zone number coincides with that of the wired zone
(on mainboard or in expander), you can select which zone is to be supported (see:
PROGRAMMING manual). The controller DIP-switches are not used.
The VERSA-MCU controller is identified by the control panel as two devices: INT-RX
(address 7) and VERSA-MCU (address 8).
