SATEL VERSA 19
2EOL/NC – the wiring type recommended to connect detectors having the NC alarm output
and a tamper output. The zone can recognize 3 states: normal, alarm and tamper.
2EOL/NO – the wiring type similar as 2EOL/NC, but for detectors with the NO alarm output.
Roller – the wiring type dedicated to connecting roller shutter detectors.
Vibration – the wiring type dedicated to connecting vibration detectors. The zone will also
accept connection of a detector with the NC alarm output (e.g. a vibration detector and
a magnetic contact can be connected in series).

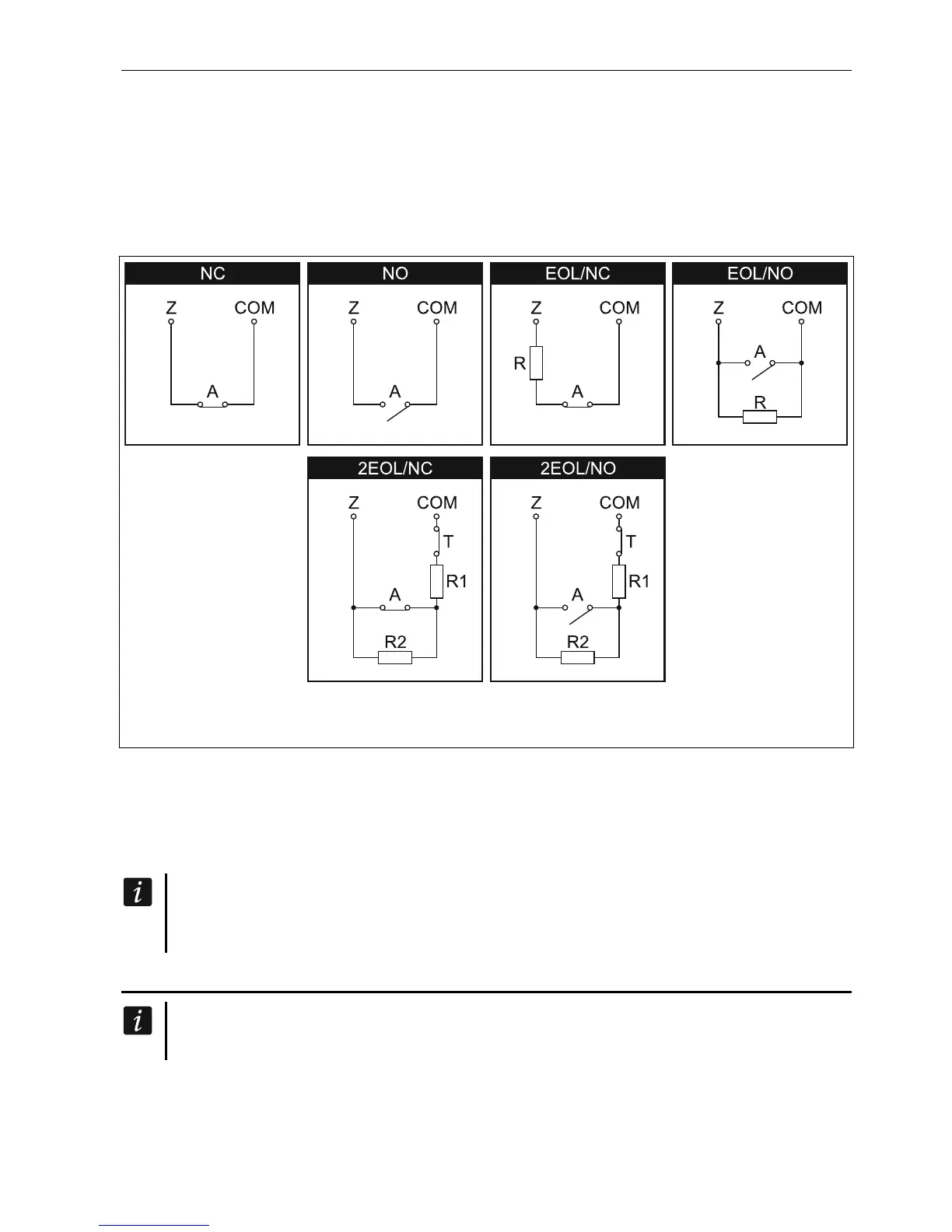

Fig. 22. The ways to connect detectors to zones. The detector outputs are designated with
letters: A - alarm, T – tamper. R=R1+R2.
5.6.1 End-of-line resistors
For the zones on the control panel mainboard and in the expanders identified by the control
panel as CA-64 Ei and CA-64 EPSi, the EOL resistor value is programmable within the range
from 500 to 15 k (the sum of programmable values must not exceed 15 k – see the
P
ROGRAMMING manual).
If the resistor value in the expander is not programmable, in Single EOL configuration,
the 2.2 k
resistor is required, and in Double EOL (2EOL) configuration – two 1.1 k
resistors.
5.7 Connecting the sirens
It is recommended that the control panel be started without connected sirens. This will
prevent accidental triggering of the alarm after the control panel is started.
Depending on the siren type:
sirens without own power supply (e.g. SP-500, SP-4001, SP-4003, SPL-2010, SPW-100,
SPW-210, SPW-220) – high-current outputs are to be used to trigger the signaling,
