Section 2: Installation
Page 2-2 CG4 Series Operator Manual
2.1 SITE LOCATION
Consider the following when setting up the printer:
• Place the printer on a solid flat surface with adequate space. Make sure there is enough space above
the printer to provide clearance for the top cover to swing open.
• Place it away from hazardous materials or dusty environments.
• Place it within operational distance of the host computer, within interface cable specifications.
2.2 MEDIA SELECTION
The size and type of the labels or paper to be printed should have been taken into consideration before printer
purchase. Ideally, the media width will be equal to, or just narrower than, the print head. Using media that
does not cover the print head will allow the platen roller to tread on it and wear it out. The media edge will also
wear a groove in the platen roller, which can affect print quality.

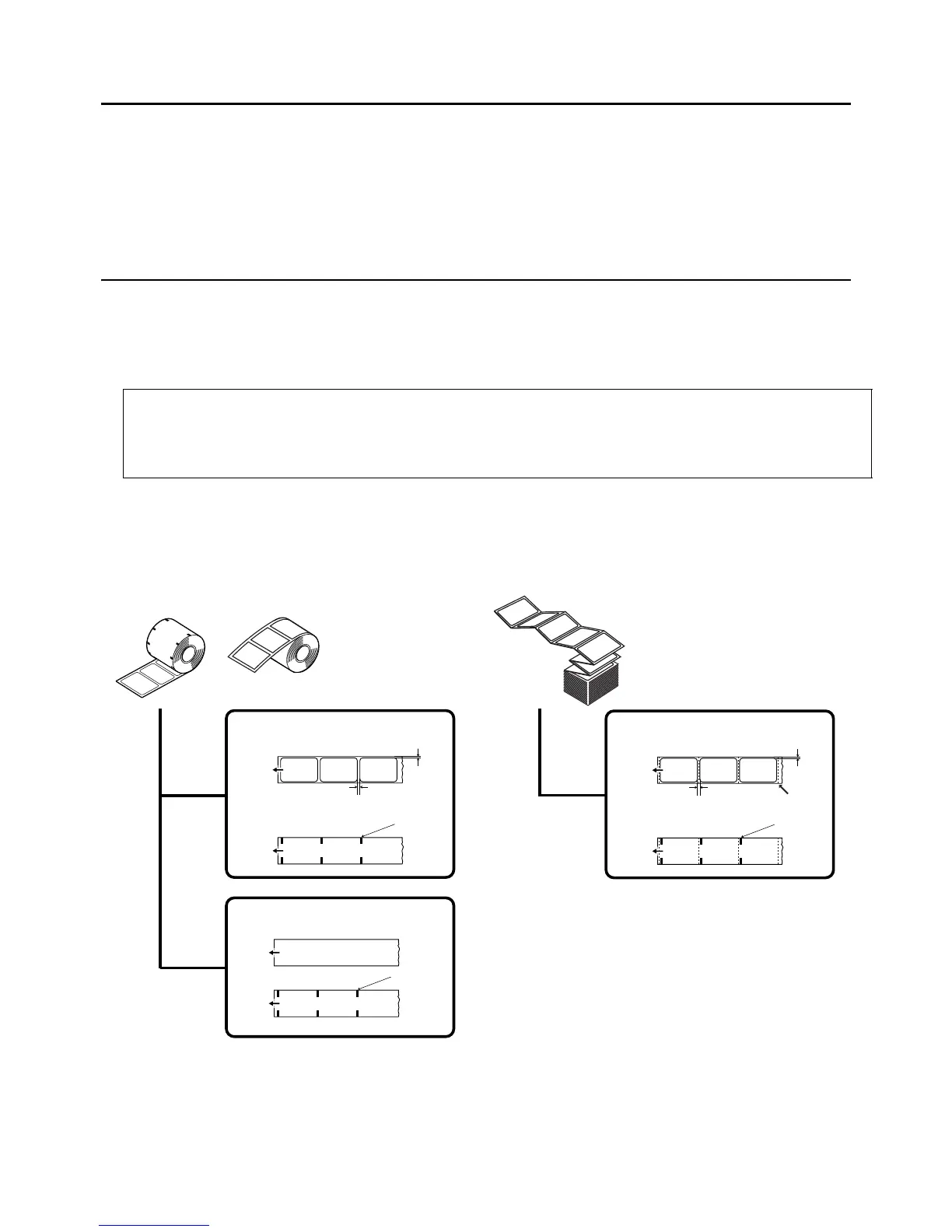

This printer can print on roll media or fan-folded media. The methods used for loading roll media and fan-
folded media differ. The printer uses sensors to detect I-Marks or gap on the media in order to precisely
position the print content.
Note:
For optimal print performance and durability, please use SATO-certified label and ribbon supplies
on this printer. Using supplies not tested and approved for use by SATO can result in unnecessary
wear and damage to vital parts of the printer, and may void the warranty.
Fan-fold media
l-Mark
paper
Front side
Front side
Fold perforation
I-Mark
Reverse side
Label gap/
I-Mark
1.5 mm
Face-in Roll media Face-out Roll media
3 mm
Gap (spacing)
Paper feed direction
Paper feed direction
I-Mark
Reverse side
Front side
I-Mark
Reverse side
1.5 mm
3 mm
Gap (spacing)
Paper feed direction
Label gap/
I-Mark
