Section 3: Operation and Configuration
Page 3-8 CG4 Series Operator Manual

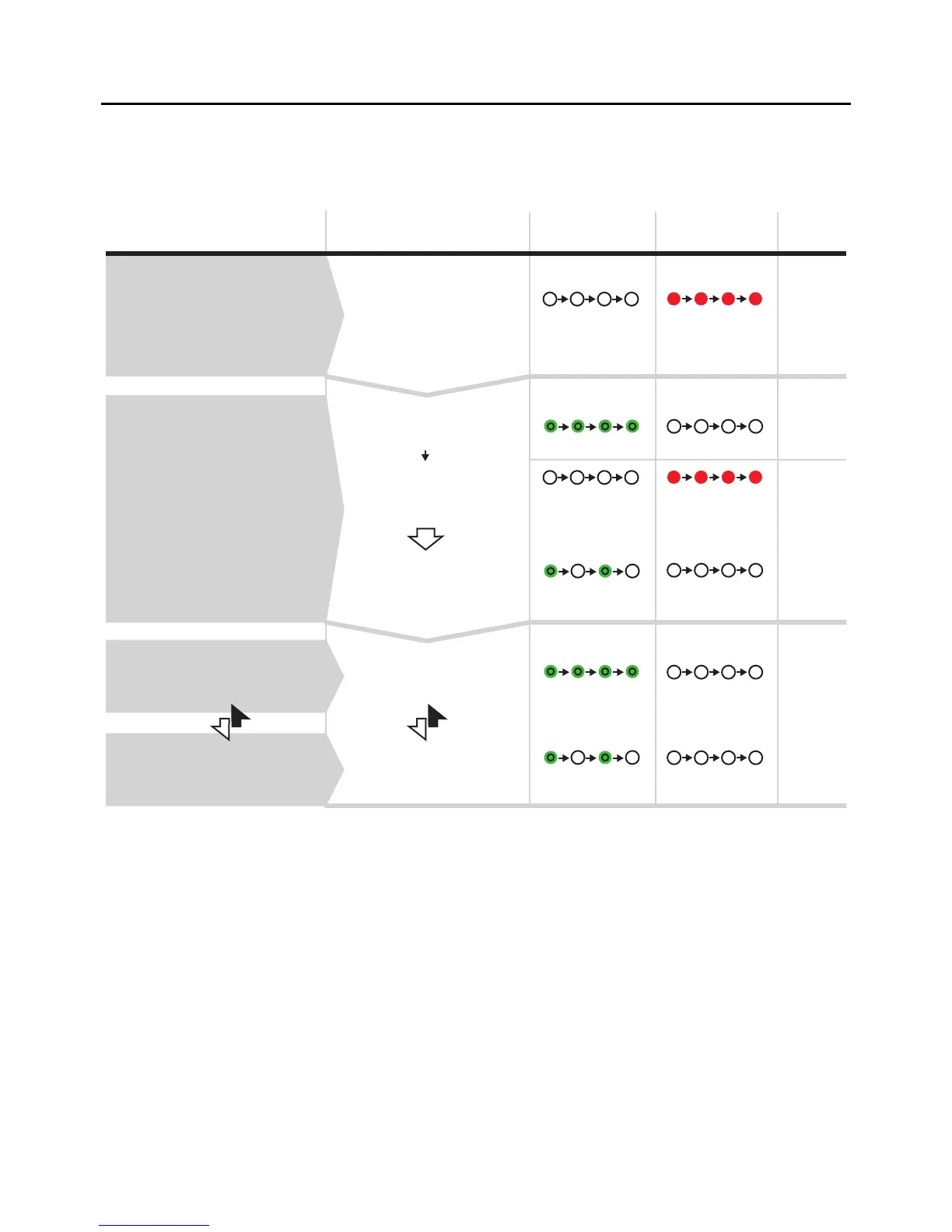

3.4 FACTORY TEST PRINT MODE
This mode produces test labels for diagnostic purposes.
Preparation:
Make sure the media or ribbon (if required) are properly loaded in the printer.
Notes:
If you missed the chance to release the FEED/LINE button in step 2 above, just keep holding the FEED/
LINE button and wait for the next cycle.
If you released the FEED/LINE button at the wrong ON LINE (POWER) or ERROR indicators, just turn off
the power and restart the procedure.
The printer will continuously print the Factory test labels until the FEED/LINE button is pressed. The print-
ing is paused and will resume printing if the FEED/LINE button is press again.
To terminate the Factory Test Print mode
First, ensure that you have pressed the FEED/LINE button to pause the test printing, then press POWER to
turn off the printer.
Printer start-up
While pressing
FEED/LINE button, press
and release POWER
button. Keep holding
FEED/LINE button.
Green light
Release FEED/LINE
button when ERROR
indicator changes to red
light and two short beeps
sound are heard.
Blinking green light
Press FEED/LINE button
to start test printing.
Factory Test Print
mode is activated and
then paused.
Green light
FactoryTest Print start
and print continuously.
Press FEED/LINE button
to pause the test printing.
Press again to resume.
Factory Test Print
paused.
Blinking green light
1
2
3
Printer statusProcedures
(The printer will cyclically
advance to next mode as
long as the FEED/LINE
button is held down.)
Off
ON LINE (POWER)
indicator
ERROR
indicator
Buzzer
User Test Print Mode.
Factory Test Print
Mode.
Off
Off
Off
Off
One short
beep
Two short
beeps
FEED/LINE
released
Red light
Off
Red light
