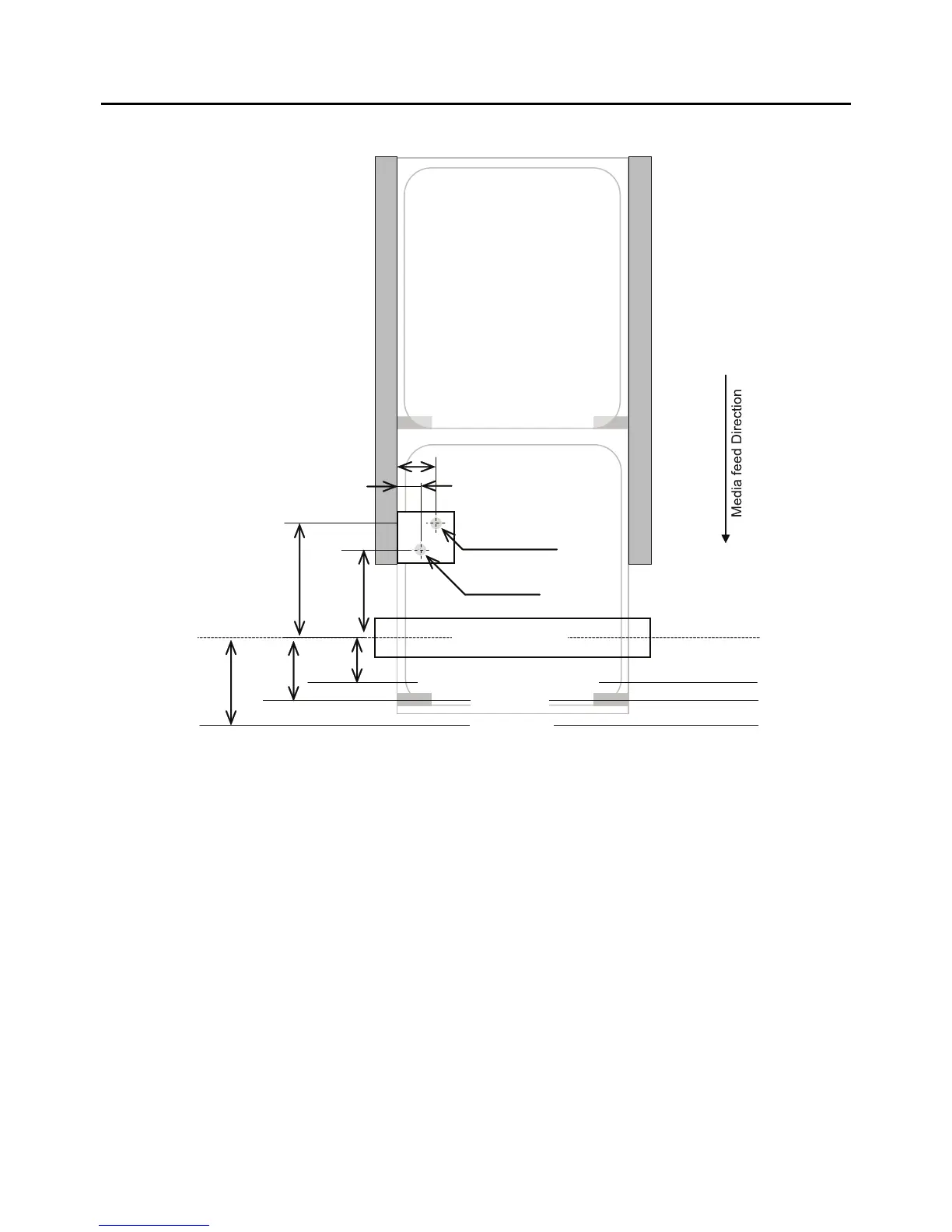

8.3 POSITIONS OF SENSORS AND OPTIONS
7.3mm (0.29”)
5.0mm (0.19”)
46.3mm
(1.82”)
I-Mark sensor
Gap sensor
34.9mm
(1.37”)
20.6mm
(0.81”)
21.1mm
(0.83”)
14.5mm
(0.57”)
Print head
Dispenser
Cutter
Tear-off/ Nonsepa(Linerless)
