SATO CG408 User Manual

Section 2: Installation
Page 2-10 CG4 Series Operator Manual
2.5 CONNECTIONS
This section explains the power cable and interface cable connection procedures.
2.5.1 Standard interface connection
CG4 Series printers have three types of Main PCBs, and each type of PCB is equipped with different types of
interface to perform data communication with the host. These are described as follows.
1) RS232C and USB interface on-board
2) LAN and USB interface on-board
3) USB and IEEE 1284 interface on-board
Connect only one type of interface cable from the printer to the host computer. Use the cable that is
compatible with the standard of the interface board as stated in Section 7: Interface Specifications. Make
sure the cable is correctly oriented.
Caution
Never connect or disconnect interface cables (or use a switch box) with power applied to either the host
or printer. This may caused damage to the interface circuitry in the printer/ host and is not covered by
warranty.

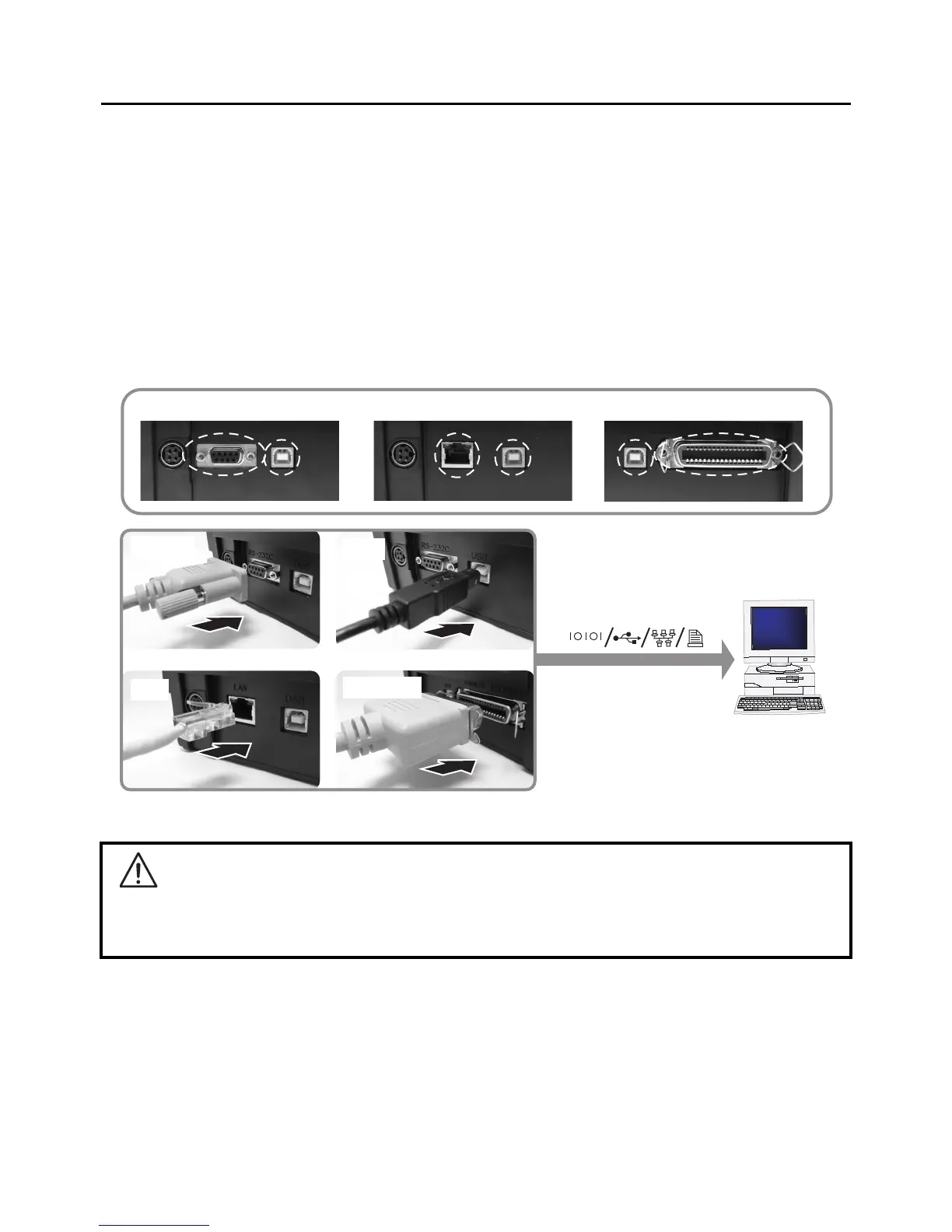

RS232C and USB interface on-board
LAN and USB interface on-board USB and IEEE 1284 interface on-board
Host
IEEE 1284
RS232C
LAN
USB

SATO CG408 Specifications

General

Resolution	203 dpi
Max Print Width	104 mm
Print Method	Thermal Transfer
Max Print Speed	4 inches/sec
Media Roll Diameter	127 mm (5 inches)
Memory	4 MB Flash
Interface	USB, Serial, Ethernet
Media Sensor	Reflective and Transmissive
Media Thickness	0.06 mm - 0.19 mm
Ribbon Length	100 m (328 ft)
Label Thickness Range	0.06 mm - 0.19 mm
