SATO CL408e Service Manual

Page 8-15
Section 8. Troubleshooting
SATO CL408e/CL412e Service Manual
PN 9001078
Rev. A

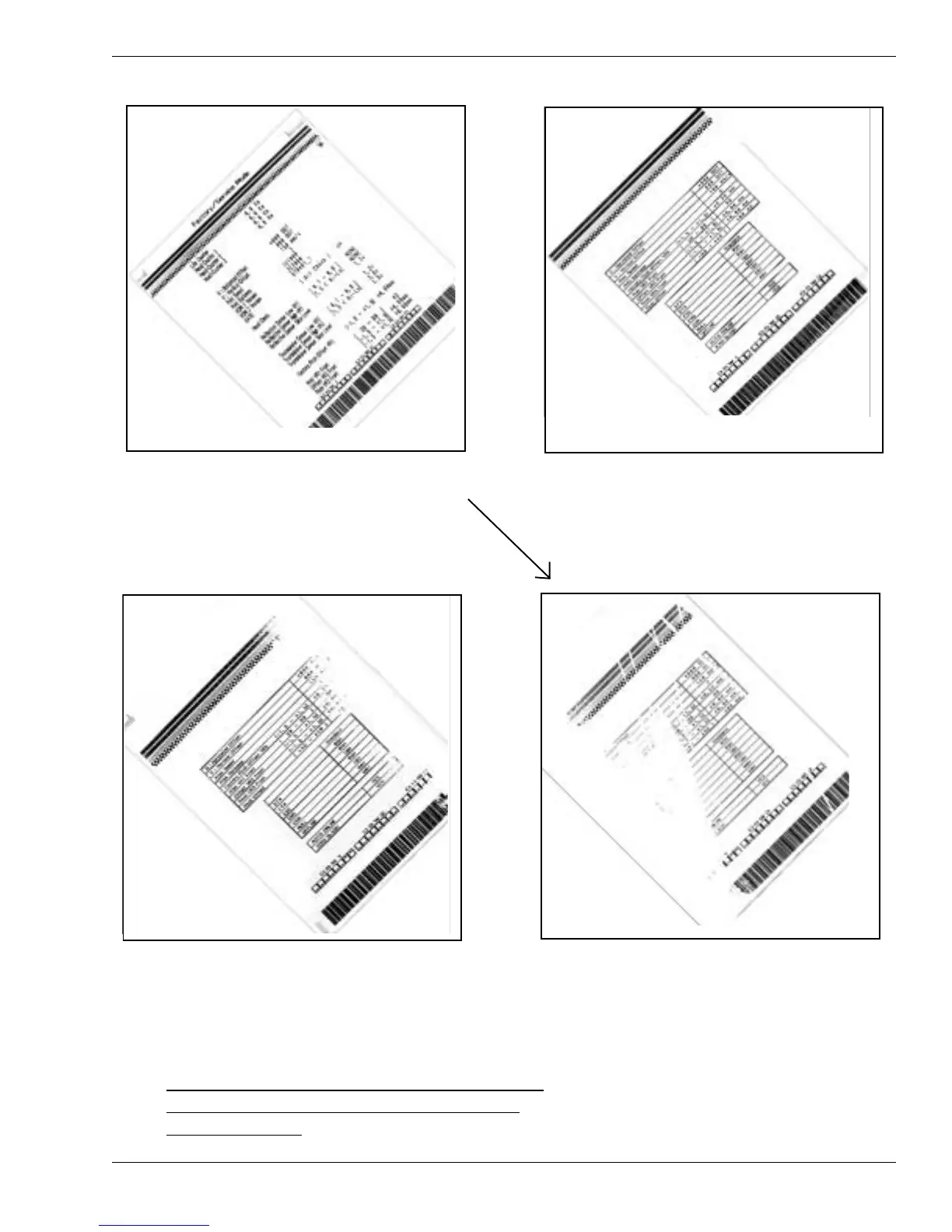

8.9 Head Pattern Examples
FEED
DIRECTION
FACTORY DEFAULT
GOOD ADJUSTMENT
CLEAR, DARK,
EVEN TEXT
IRREGULAR UNEVEN
TEXT
POOR HEAD
ALIGNMENT, BALANCE
OUT OF ADJUSTMENT
POOR HEAD
ALIGNMENT, BALANCE
OUT OF ADJUSTMENT
ILLUSTRATIONS SHOWN ARE EXAMPLES
ONLY AND WILL NOT EXACTLY MATCH
YOUR OUTPUT

SATO CL408e Specifications

General

Print Resolution	203 dpi
Print Speed	4 inches per second
Print Method	Thermal Transfer / Direct Thermal
Memory	2 MB Flash
Connectivity	RS-232C
Media Thickness	0.0025" - 0.01"
Supported Barcode Types	Code 39, Code 128
Operating Temperature	41°F to 104°F
Storage Temperature	140°F
Print Width	4.1"
Media Type	Roll or Fan-Fold
