SATO CL408e Service Manual

Page 8-16
Section 8. Troubleshooting
SATO CL408e/CL412e Service Manual
PN 9001078
Rev. A

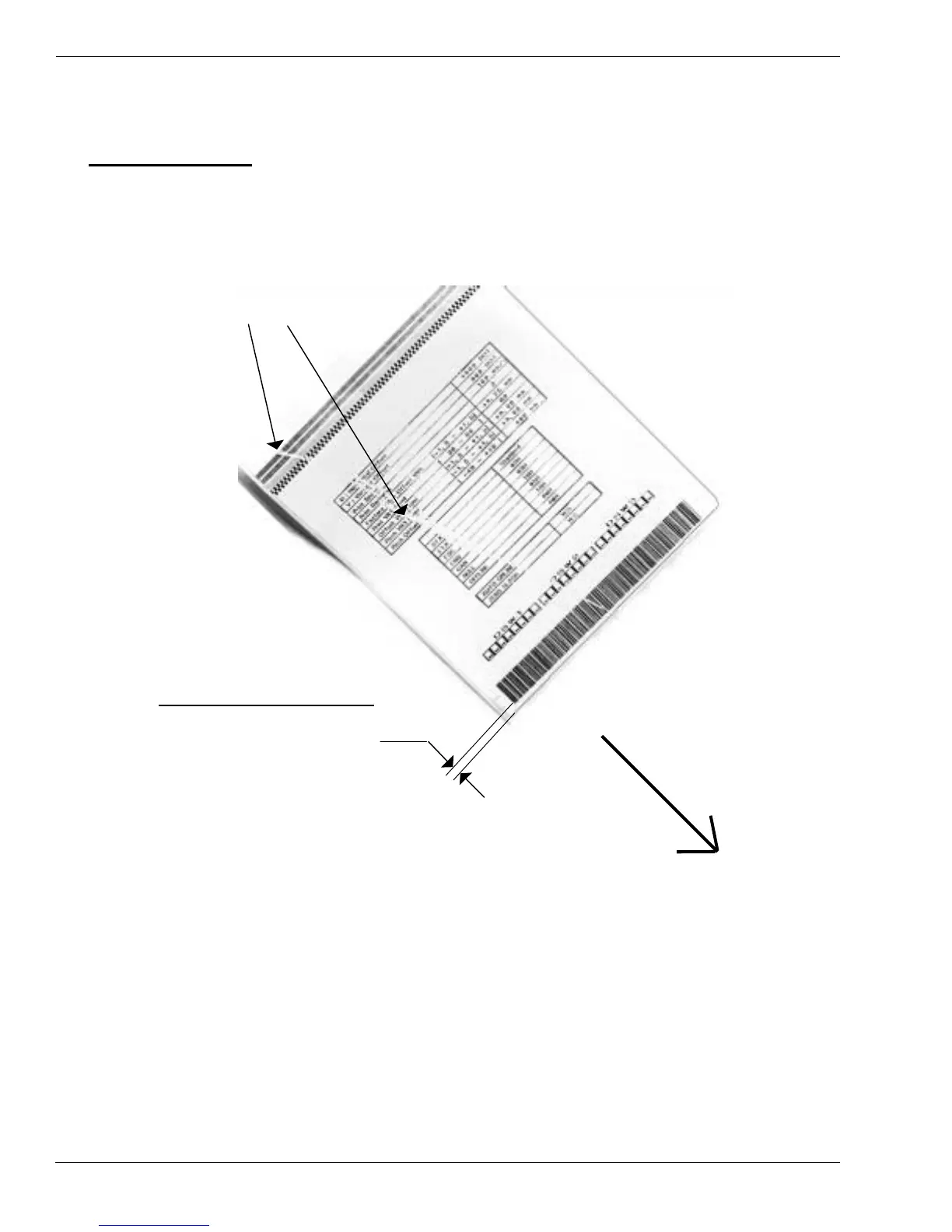

Head Pattern Examples
DIAGONAL VOIDS (WHITE STREAKS)
THAT “WALK” ACROSS LABEL
R
IBBON WRINKLE
P
OOR HEAD ALIGNMENT, POOR
R
IBBON TENSION,
WORN PLATEN,
F
OREIGN MATERIAL, DAMAGED
P
RINT HEAD
I
MPROPER ALIGNMENT
BOTTOM EDGE OF BAR
C
ODE IS SHOWN NOT
P
ARALLEL WITH EDGE
O
F LABEL
FEED
DIRECTION

SATO CL408e Specifications

General

Print Resolution	203 dpi
Print Speed	4 inches per second
Print Method	Thermal Transfer / Direct Thermal
Memory	2 MB Flash
Connectivity	RS-232C
Media Thickness	0.0025" - 0.01"
Supported Barcode Types	Code 39, Code 128
Operating Temperature	41°F to 104°F
Storage Temperature	140°F
Print Width	4.1"
Media Type	Roll or Fan-Fold
