Section 1. Overview and Specifications
SATO CL408e/CL412e Service Manual
1.3 Printer Features
INTERFACE SLOT
POWER SWITCH
PCMCIA MEMORY
EXPANSION SLOT
AC POWER INPUT
CONNECTOR
AC FUSE
EXT CONNECTOR
COVER PLATE-REMOVE FOR ACCESS
TO DISPENSER AND FAN-FOLD SLOTS
INTERFACE SLOT Slot to plug in an interface adapter. An adapter must be
connected before the printer is operational. The adapter types
available are:
RS232C Serial I/F Module, DB-25.
IEEE1284 Parallel I/F Module, AMP 57-40360
Universal Serial Bus I/F Module
Ethernet 10/100 BaseT I/F Module
RS-422/485 I/F Module, DB-9
MEMORY CARD SLOT One slot for optional PCMCIA Memory Cards.
EXT CONNECTOR External signal connector for Accessories, AMP 57-60140
POWER SWITCH Turns power On/Off
AC FUSE Input power protection. Type 3A/250V.
AC POWER INPUT Input 115V 50/60 Hz connector. Use the cable provided.

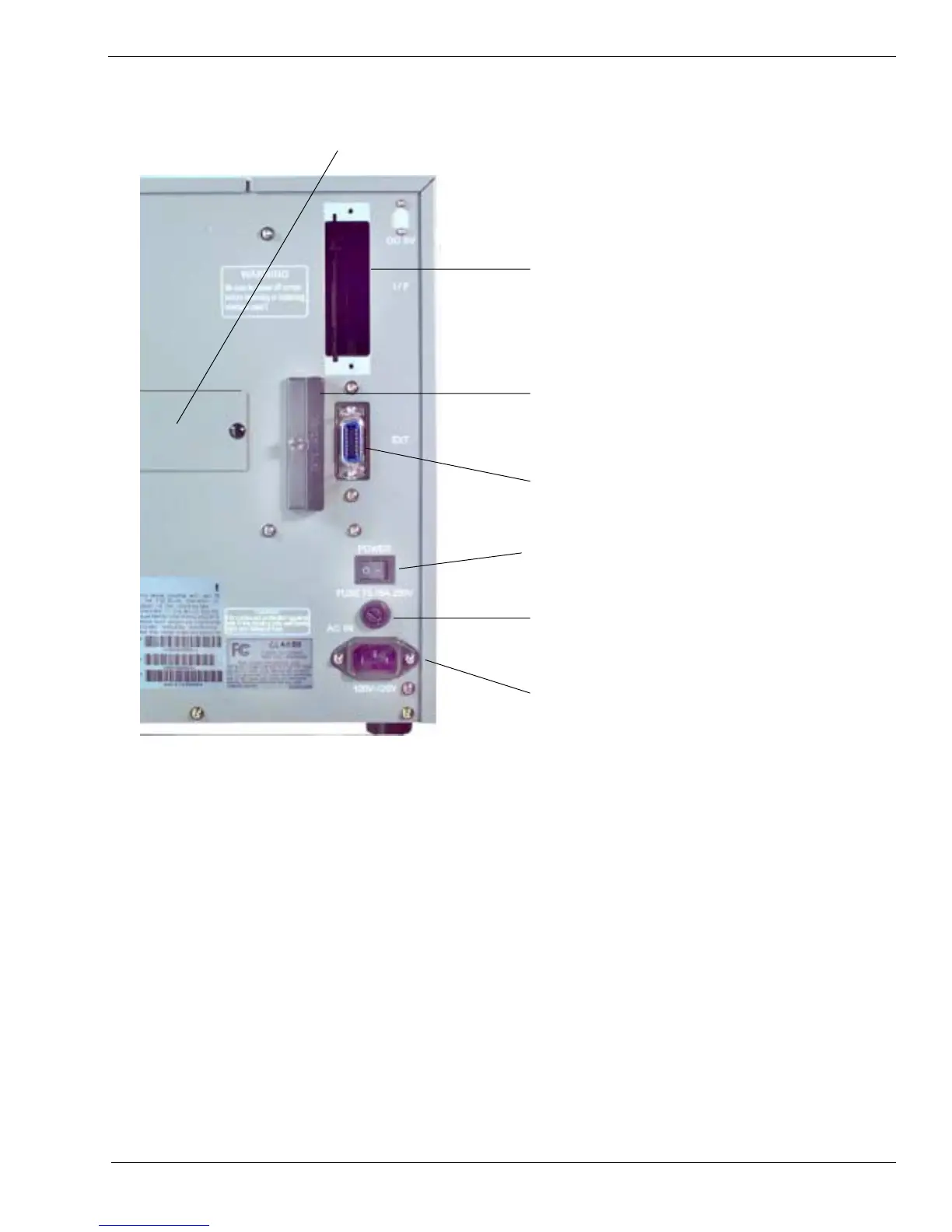

Rear Panel

SATO CL408e Specifications

General

Print Resolution	203 dpi
Print Speed	4 inches per second
Print Method	Thermal Transfer / Direct Thermal
Memory	2 MB Flash
Connectivity	RS-232C
Media Thickness	0.0025" - 0.01"
Supported Barcode Types	Code 39, Code 128
Operating Temperature	41°F to 104°F
Storage Temperature	140°F
Print Width	4.1"
Media Type	Roll or Fan-Fold
