Graphics, Custom
Command Structure <ESC>Gabbbccc(data)
a = Specifies format of data stream to follow
B Binary format
H Hexadecimal format
bbb = Number of horizontal8x8blocks
(see note 7 for allowable range)
ccc = Number of vertical8x8blocks
(see note 7 for allowable range)
(data)= Hex data to describe the graphic image
Example: <ESC>GH006006
See Appendix C for a detailed example
Placement: May be placed anywhere within the data stream after
the necessary position commands.
Default: None
Command Function To create and print custom graphics (logos, pictures, etc.) on a label.
The graphic image may be printed along with other printed data to
enhance label appearance or eliminate the need for preprinted label
stock. Using a dot-addressable matrix, design the graphic image in 8
dot by 8 dot blocks, then send it in a binary format to the printer.

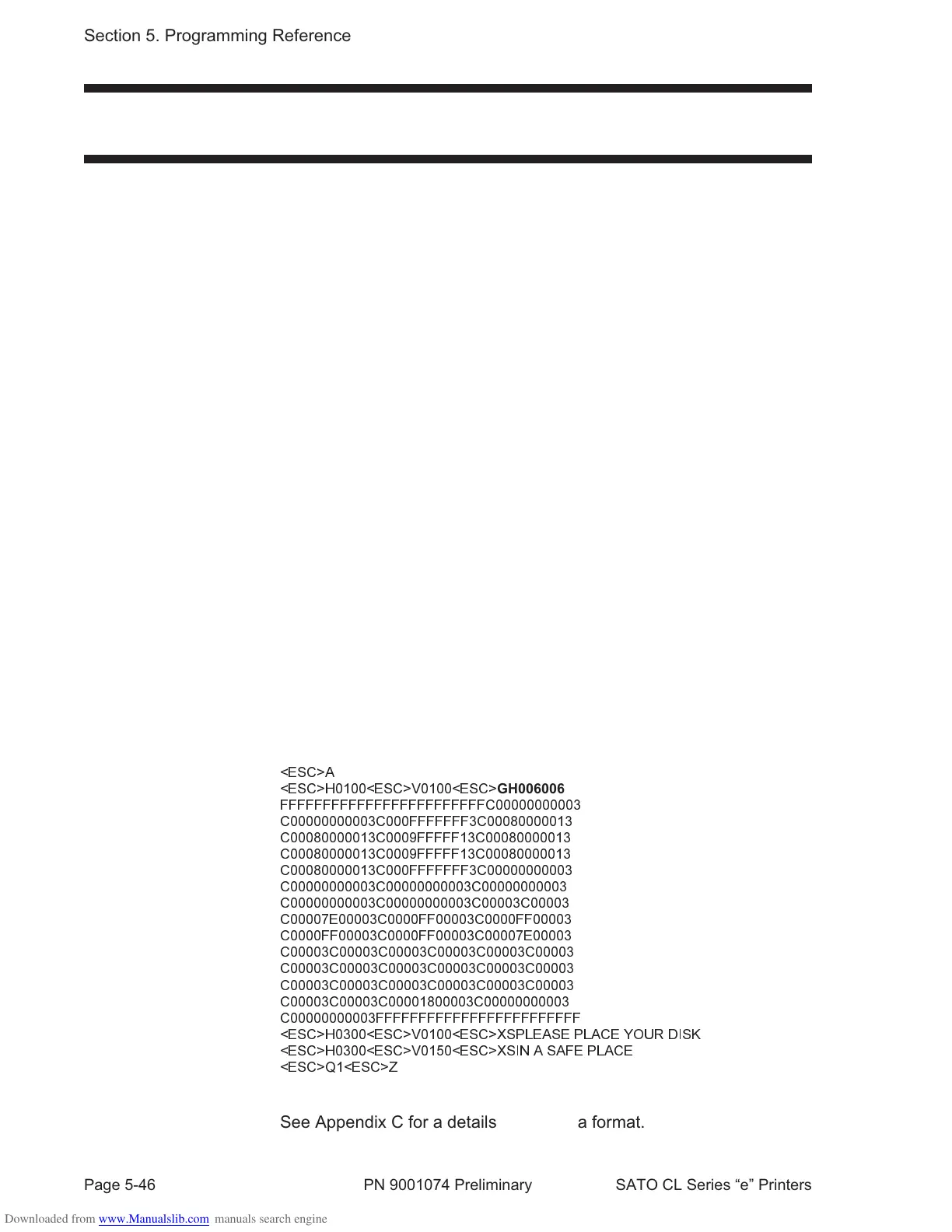

Printer Input
<ESC>A
<ESC>H0100<ESC>V0100<ESC>
GH006006
FFFFFFFFFFFFFFFFFFFFFFFFC00000000003
C00000000003C000FFFFFFF3C00080000013
C00080000013C0009FFFFF13C00080000013
C00080000013C0009FFFFF13C00080000013
C00080000013C000FFFFFFF3C00000000003
C00000000003C00000000003C00000000003
C00000000003C00000000003C00003C00003
C00007E00003C0000FF00003C0000FF00003
C0000FF00003C0000FF00003C00007E00003
C00003C00003C00003C00003C00003C00003
C00003C00003C00003C00003C00003C00003
C00003C00003C00003C00003C00003C00003
C00003C00003C00001800003C00000000003
C00000000003FFFFFFFFFFFFFFFFFFFFFFFF
<ESC>H0300<ESC>V0100<ESC>XSPLEASE PLACE YOUR DISK
<ESC>H0300<ESC>V0150<ESC>XSIN A SAFE PLACE
<ESC>Q1<ESC>Z
See Appendix C for a details on the data format.
Page 5-46 PN 9001074 Preliminary SATO CL Series “e” Printers
Section 5. Programming Reference
