SawStop PCS175 - V Wiring Diagram

SawStop 10” Professional Cabinet Saw 37
Preparing Your Saw
Preparing Your Saw for Use

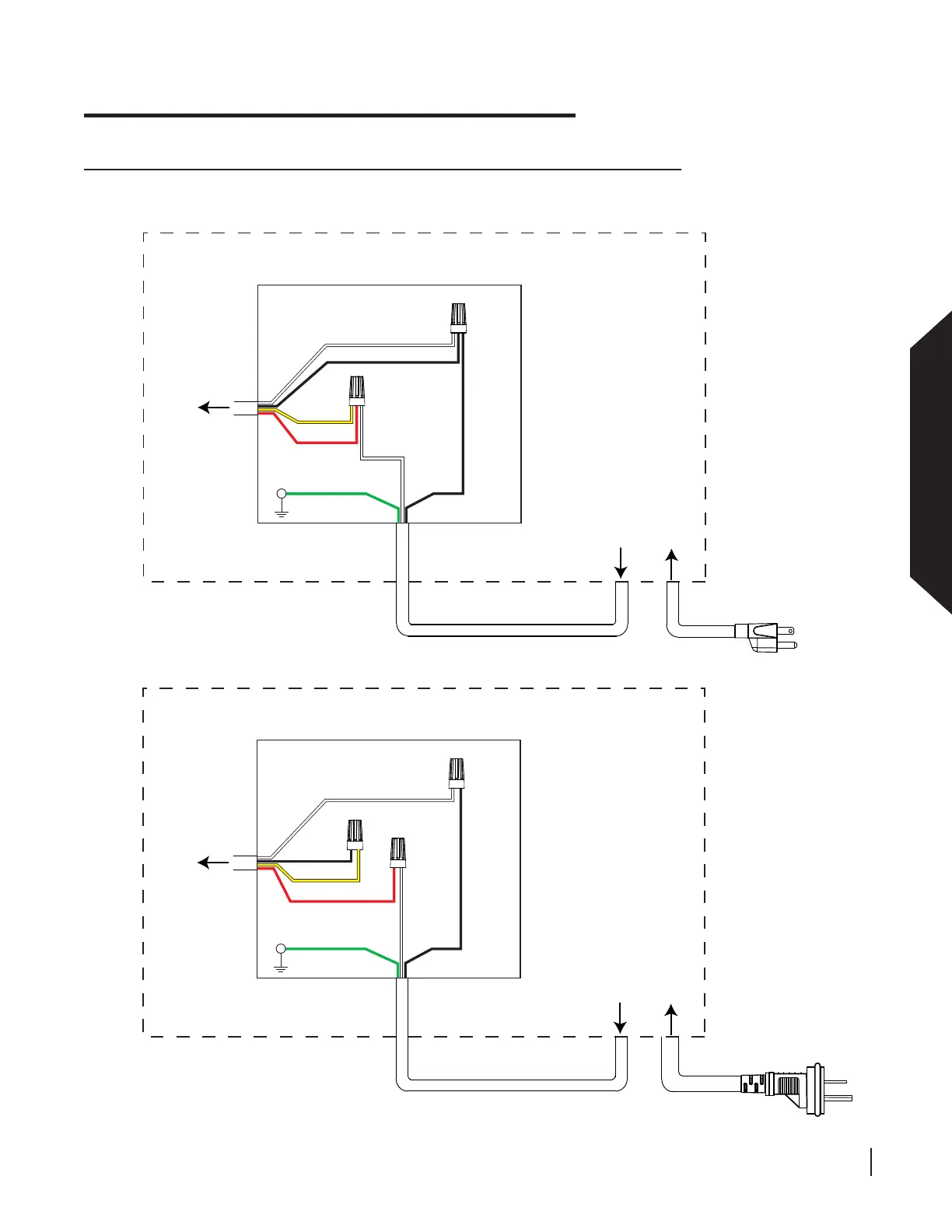

Electrical Schematic for Re-Wiring a PCS175 Motor for 220-240V Power
110-120 V
to
contactor
box
from
contactor
box
Junction Box on Motor
to
motor
wire nut
wire nut
black
white
red
yellow
white
black
208-240 V
to
contactor
box
from
contactor
box
Junction Box on Motor
to
motor
wire nut
wire nut
white
black
red
yellow
white
green
208-240V Wiring Diagram
110-120V Wiring Diagram
black
green
wire nut
