96 SawStop 10” Professional Cabinet Saw
2"
5"
2"
2"
1/2" radius
3 1/2"
(3/4” thick)
(1/2” thick)
1/2”
9”
C
A
4 3/4"
5 1/4"
2"
(1/2” thick)
9”
1/2”
B
A
B
C

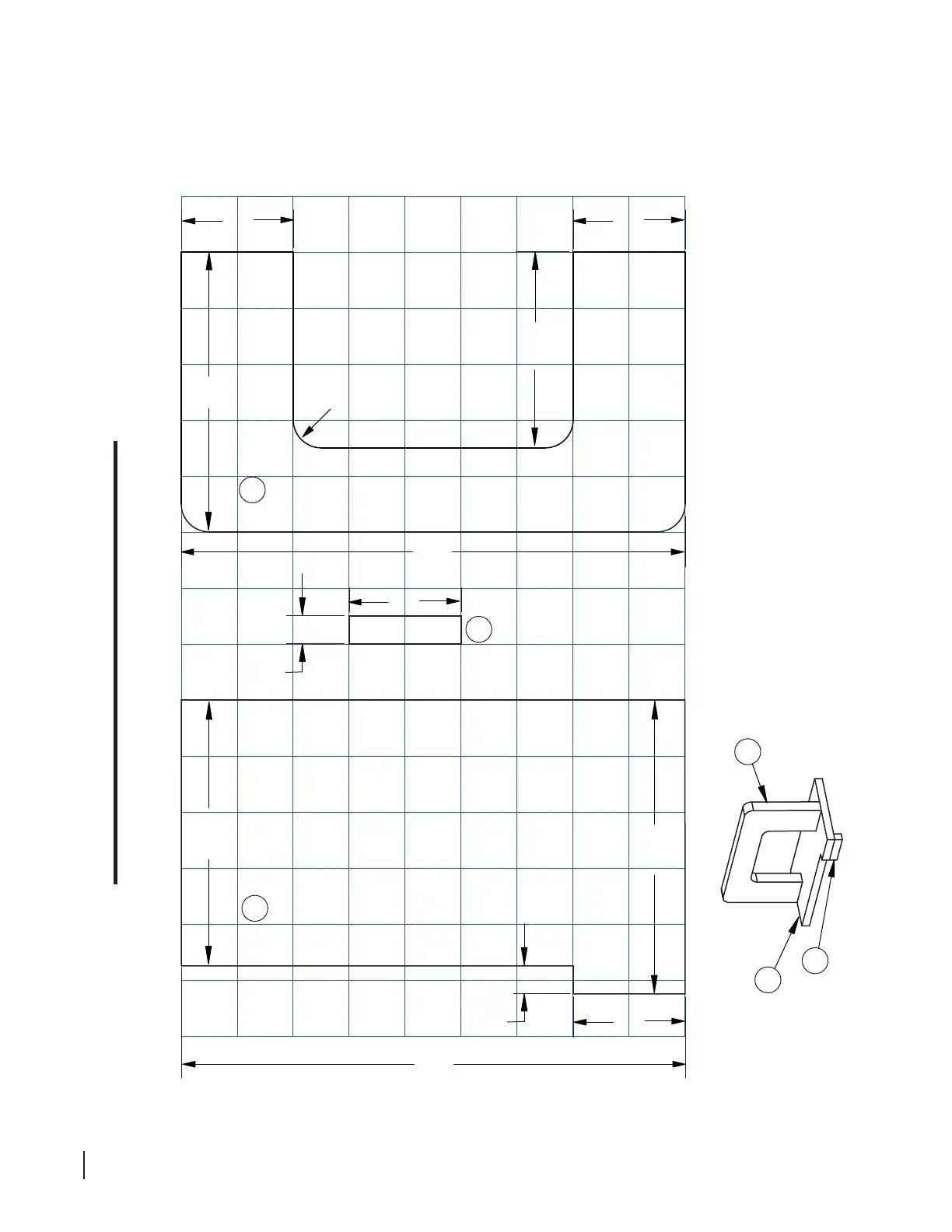

Push Block Construction
Squares are 1 inch.
This diagram illustrates a typical push block. It includes the three pieces
shown here labeled A, B, and C. Cut piece A out of
3
⁄
4
inch thick hardwood
and cut pieces B and C out of
1
⁄
2
inch thick plywood. Attach piece A to the
center of piece B using wood glue and counter-sunk wood screws. Attach
piece C to piece B as shown in the drawing to the left using wood glue only.
Do not use metal fasteners to attach piece C to piece B.
