SawStop 10” Professional Cabinet Saw 87
Maintenance
Lubrication Points

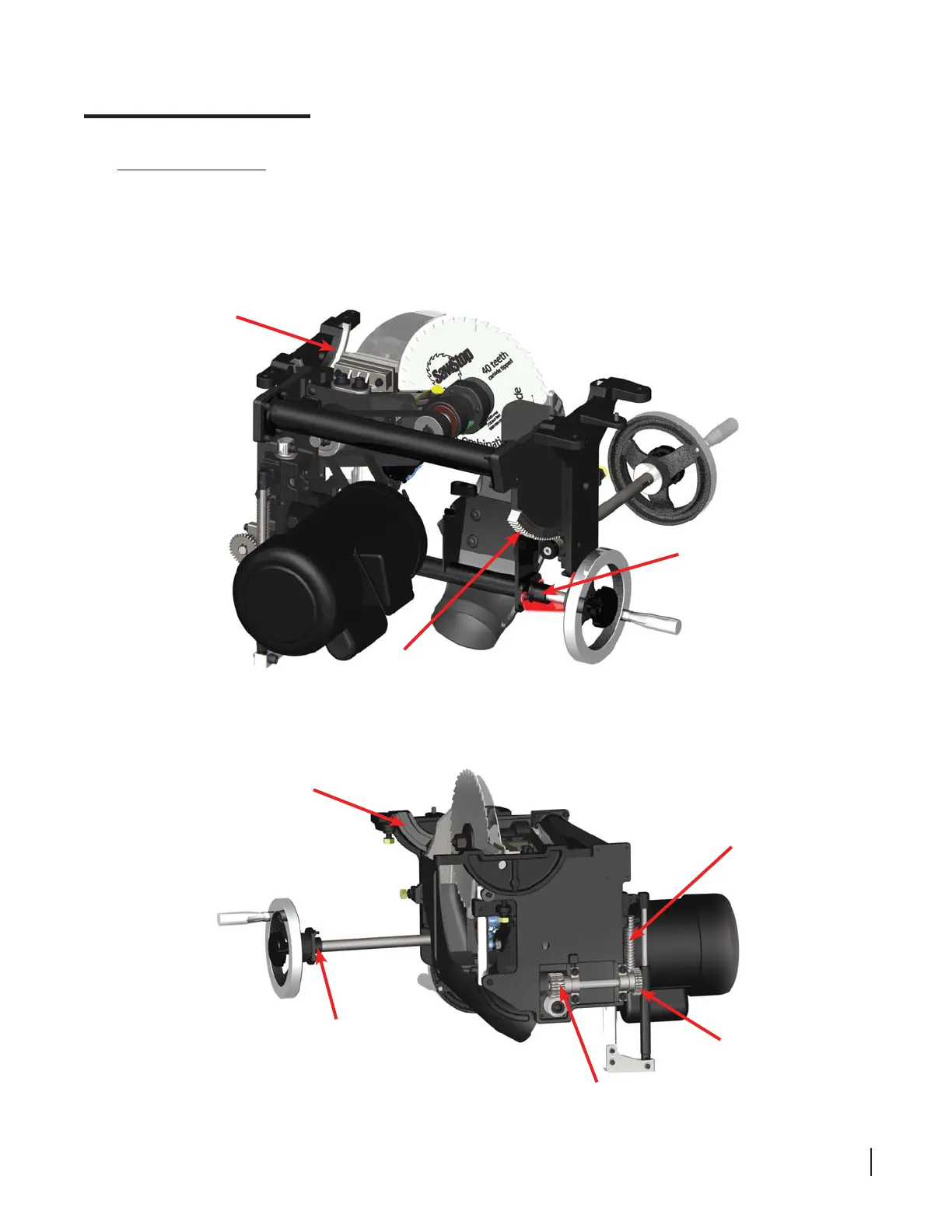

Points that need to be kept lubricated are shown in the fi gures below. The front trunnion, rear trunnion, and
sector gear are most easily accessed through the motor cover opening with the blade tilted to 45º. The
sector gear should be lubricated on both sides that run along the teeth as well as the teeth. The worm gear and
threaded rod can be accessed through the rear access panel with the blade tilted to 45º.
Fig. 128
Fig. 129
pinion gear
rear trunnion
bracket
sector gear
elevation handwheel
shaft bushing
front trunnion
bracket
tilt handwheel
shaft bushing
threaded rod
worm gear
