Currency Discrimination Fitness Sorter SB - 2000 Service Manual
54
5. SHADING
1. CIS
2. I R
3. SOIL
4. UV
5. MR
6. CAP
IMAGE SHADING
MIN
MAX
AVG
UNI
IRB
0.00
0.03
0.00
―
IRW
0.84
1.31
1.01
81%
WHB 0.00 0.03 0.00 ―
WHW 0.83 1.29 1.00 75%
OnTime : IR_T = 88 IR_R = 0
OnTime : WHT_T = 188
OK
Check if IR SHADING result is “OK”

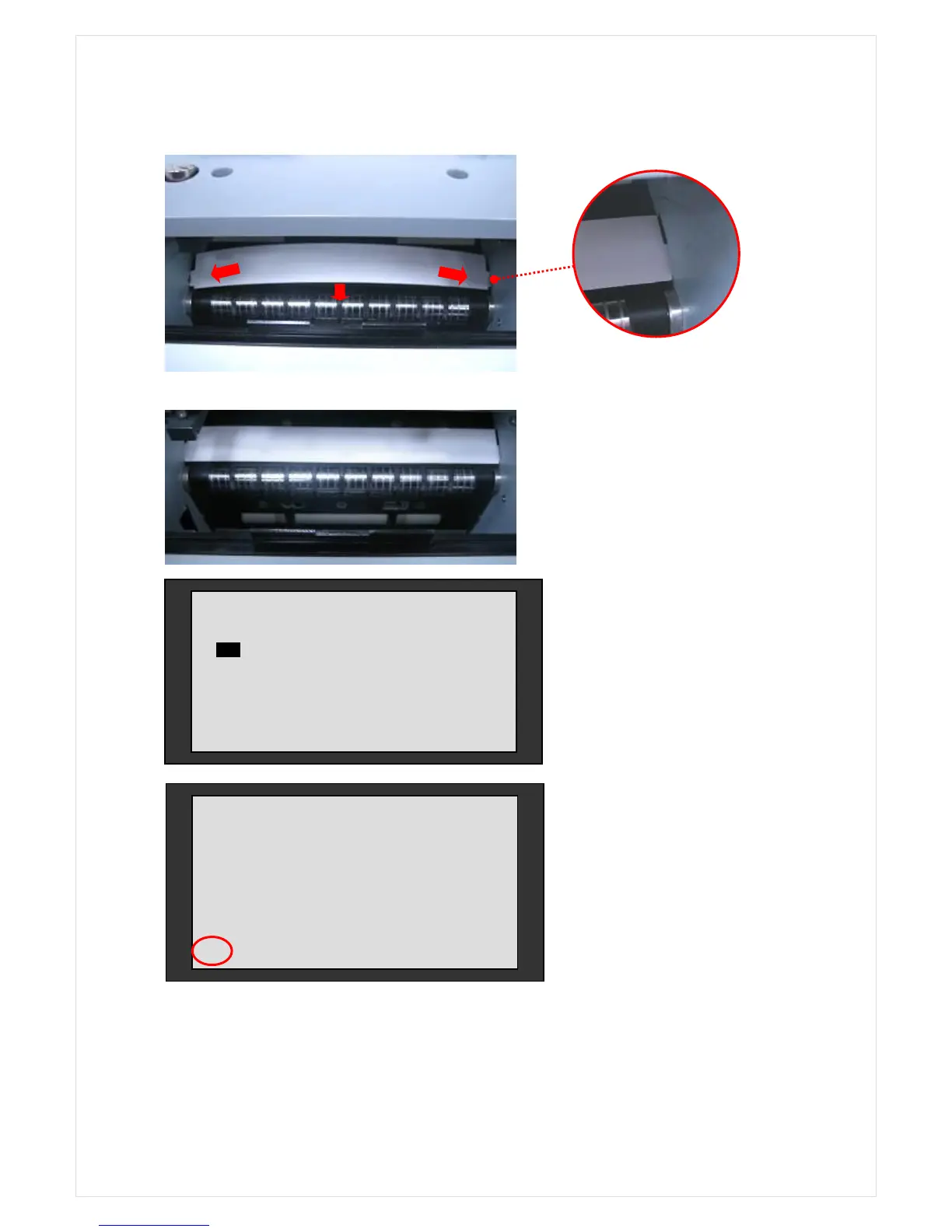

After SHADING, open rear cover and take
out the SHADING SHEET.
Please be careful about the orientation of
shading sheet. Put the convex surface of
shading sheet upward.
